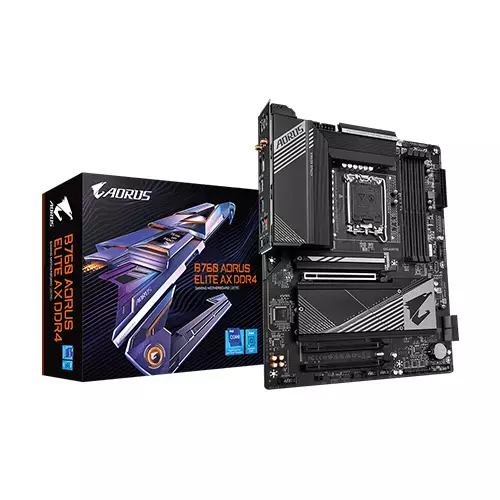

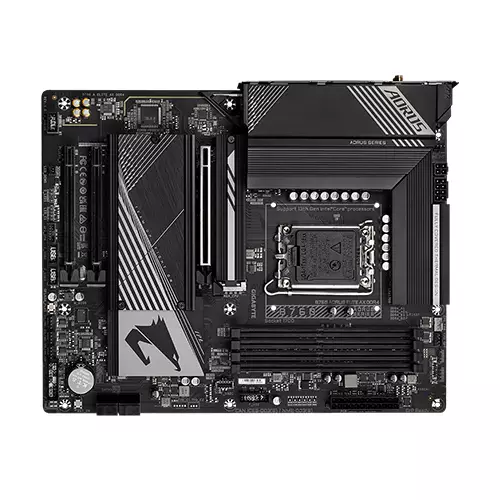

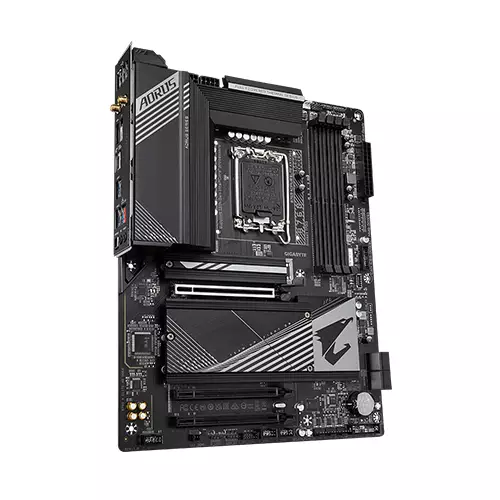

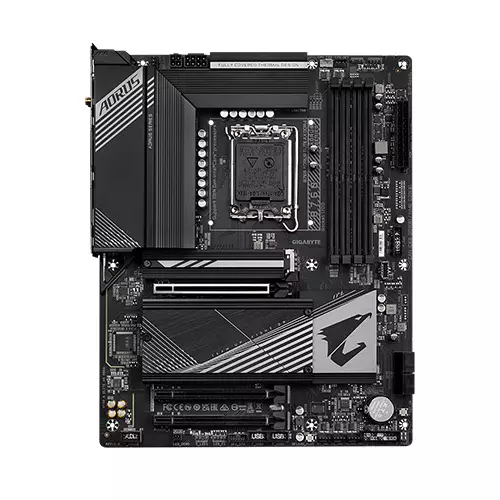

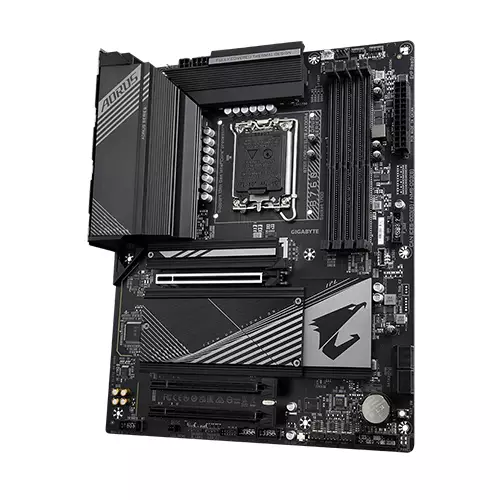

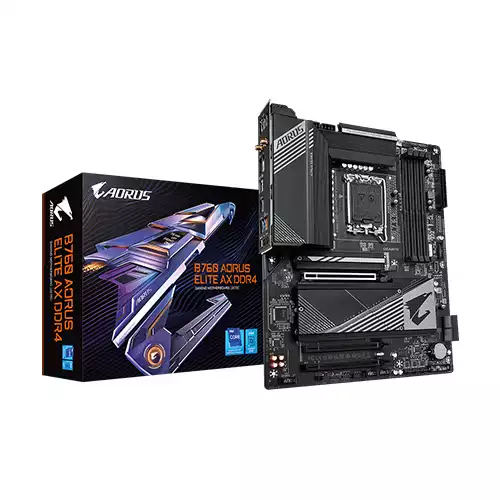

GIGABYTE B760 AORUS ELITE DDR4 13TH GEN ATX MOTHERBOARD
- Chipset: Intel® B760 Express Chipset
- Supported CPU: LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and C...
- LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- Slots: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum p...
Product Pricing
EMI Start From*
৳845
SPECIFICATIONS
Processor
Supported CPU
LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
L3 cache varies with the CPU
L3 cache varies with the CPU
Mainboard
Chipset
Intel® B760 Express Chipset
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Memory
Memory
Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.)
/ 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) /
3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
/ 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) /
3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Storage
Supported Storage
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10
support for SATA storage devices
Chipset:
2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10
support for SATA storage devices
Graphics
Graphics
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
* Support for HDMI 2.0 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
Networking & Connectivity
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Audio & Microphone
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Ports
Slots
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Internal I/O Ports
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

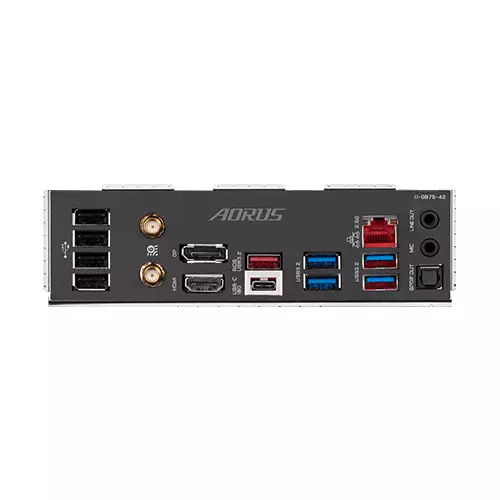

External I/O Ports
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 port
4 x USB 2.0/1.1 ports
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 port
4 x USB 2.0/1.1 ports
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
USB
2 x USB Type-C® ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header)
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 3.2 Gen 1 ports available
through the internal USB header
Chipset+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 3.2 Gen 1 ports available
through the internal USB header
Chipset+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
HDMI
1 x HDMI port
Software
Software Features
Norton® Internet Security (OEM version)
LAN bandwidth management software
LAN bandwidth management software
Others
Other Features
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
Unique Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model.
Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
Unique Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model.
Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Physical Specification
Form Factor
ATX
Dimension
30.5cm x 24.4cm
Warranty Information
Warranty
3 Years
DESCRIPTION
GIGABYTE B760 AORUS ELITE DDR4 13TH GEN ATX MOTHERBOARD in Bangladesh
The GIGABYTE B760 AORUS ELITE DDR4 13TH GEN ATX MOTHERBOARD is a high-end motherboard designed for usage with Intel Core processors from the 13th and 12th generations, as well as Pentium Gold and Celeron CPUs. It has an Intel B760 chipset, DDR4 memory capability at rates up to 5333MT/s, and twin-channel memory architecture. There are four DDR DIMM sockets that can accommodate up to 128GB of system memory. Intel HD Graphics provides onboard graphics, with HDMI and DisplayPort connectivity. A Realtek codec powers the audio, which provides 2/4/5.1/7.1-channel audio. The motherboard also has a 2.5GbE LAN, four SATA 6Gb/s connections, and a number of USB ports, including USB Type-C and USB 3.2 Gen 2. A 24-pin ATX main power connector, a front panel header, and M.2 Socket 3 connectors are among the internal I/O connectors. For SATA storage devices, the motherboard also supports XMP memory modules and RAID 0, RAID 1, RAID 5, and RAID 10.
REVIEWS
Login to write a review.
No reviews yet
Be the first to share your thoughts about this product.
What is the GIGABYTE B760 AORUS ELITE DDR4 13TH GEN ATX MOTHERBOARD Price in Bangladesh 2026 ?
The Gigabyte B760 AORUS ELITE DDR4 Price in BD is 24,000৳ . This GIGABYTE B760 AORUS ELITE DDR4 13TH GEN ATX MOTHERBOARD Manufacturing by Gigabyte Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte B760 AORUS ELITE DDR4 by 24,000৳ and its regular price is 25,700৳ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
