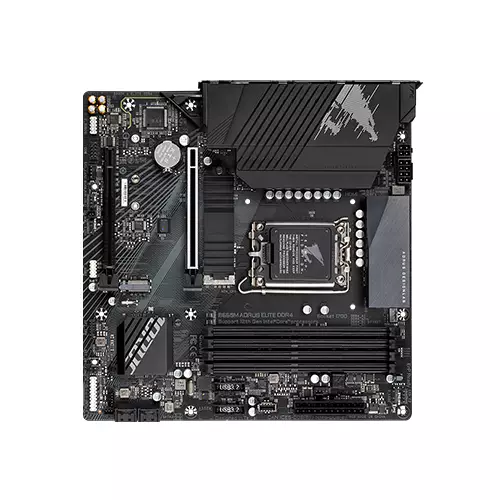

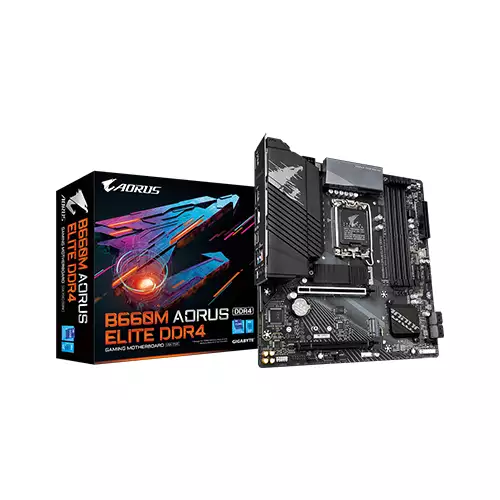

GIGABYTE B660M AORUS ELITE DDR4 MOTHERBOARD
GIGABYTE B660M AORUS ELITE DDR4 MOTHERBOARD
GIGABYTE B660M AORUS ELITE DDR4 MOTHERBOARD - 1
GIGABYTE B660M AORUS ELITE DDR4 MOTHERBOARD - 2

GIGABYTE B660M AORUS ELITE DDR4 MOTHERBOARD

0 Reviews
Stock : Out of Stock
PID : P0392506234
Brand : Gigabyte
Model : B660M Aorus Elite
Warranty : 3 years
  • Supported CPU: LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Proce...
  • Memory: Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O...
  • Supported Storage: CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_C...
  • LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Product Pricing

Discount Price

৳17,500 ৳21,800
+ Available Payment Method

EMI Start From*

৳616

SPECIFICATIONS

Processor

Supported CPU LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*

L3 cache varies with CPU

Mainboard

Chipset Intel B660 Express Chipset
BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/
4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) /
3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage CPU:

1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

4 x SATA 6Gb/s connectors

Graphics

Multi-GPU Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Graphics 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3

Networking & Connectivity

LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Audio & Microphone

Audio Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

Ports

Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

(The PCIEX16 slot conforms to PCI Express 4.0 standard.)

1 x PCI Express x16 slot, running at x4 (PCIEX4)

(The PCI Express x4 slot conforms to PCI Express 3.0 standard.)
Internal I/O Ports 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

2 x addressable LED strip headers

2 x RGB LED strip headers

2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 2 support

2 x USB 3.2 Gen 1 headers

1 x USB 2.0/1.1 header

2 x Thunderbolt™ add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x serial port header

1 x reset button

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper

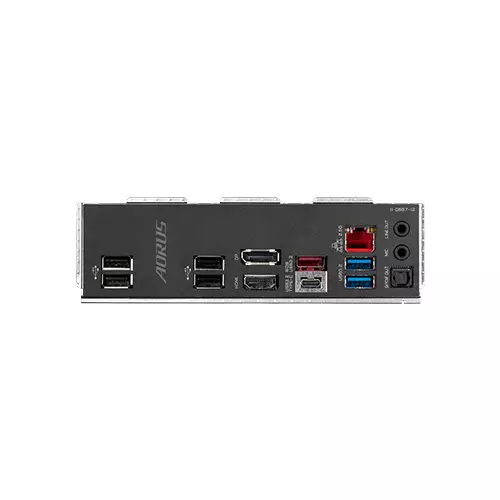

External I/O Ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 2 Type-A port (red)

2 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x HDMI 2.0 port

1 x DisplayPort

1 x RJ-45 port

1 x optical S/PDIF Out connector

2 x audio jacks
USB
Chipset:

1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support

1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header

1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

2 x USB 3.2 Gen 1 ports on the back panel

2 x USB 2.0/1.1 ports available through the internal USB header

Chipset+USB 3.2 Gen 1 Hub:

4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset+USB 2.0 Hub:

4 x USB 2.0/1.1 ports on the back panel
HDMI 1 x HDMI 2.0 port

Physical Specification

Form Factor Micro ATX Form Factor
Dimension 24.4cm x 24.4cm

Warranty Information

Warranty 3 years

DESCRIPTION

Gigabyte B660M Aorus Elite Motherboard in Bangladesh

Ever wonder why your system underperforms? You may be surprised how a motherboard could critically bottleneck the system performance, especially when it falls short on both the power and thermal design. With a limited budget, it is even more important to spend it wisely. Introducing AORUS ELITE motherboards, featuring the best-in-class digital power design, the best-in-class full-metal heatsink, and the best-in-class DDR4 XMP compatibility. It only takes a small step-up to be the best-in-class. Build Smart. Go ELITE.
