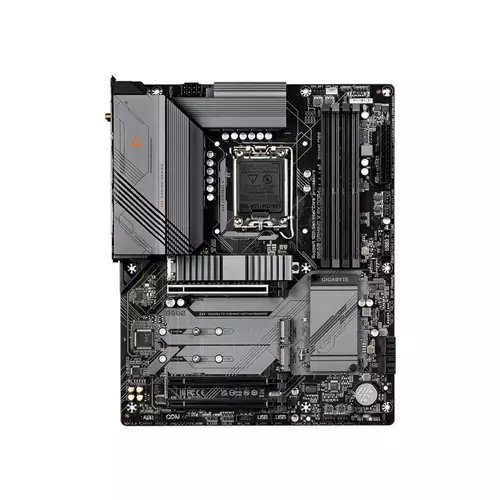

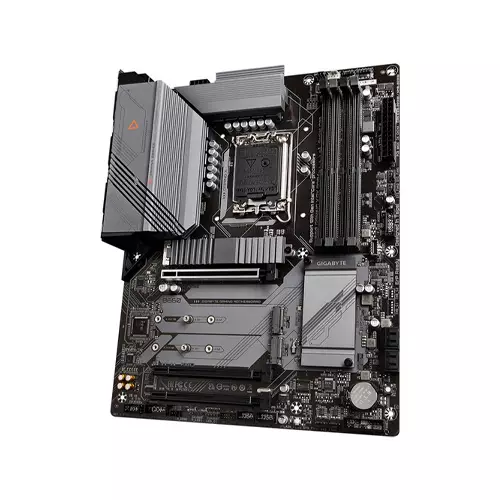

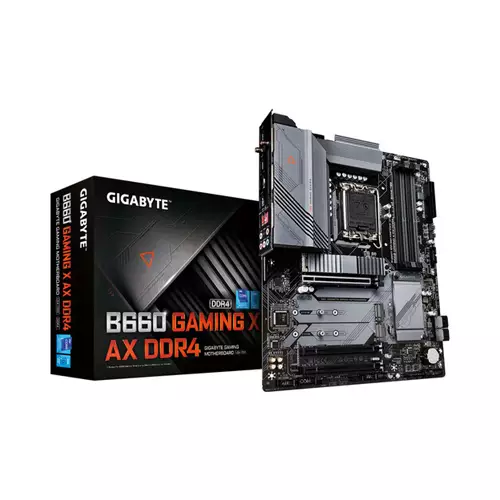

GIGABYTE B660 GAMING X AX DDR4 ATX 12TH GEN INTEL MOTHERBOARD
GIGABYTE B660 GAMING X AX DDR4 ATX 12TH GEN INTEL MOTHERBOARD
GIGABYTE B660 GAMING X AX DDR4 ATX 12TH GEN INTEL MOTHERBOARD - 2
GIGABYTE B660 GAMING X AX DDR4 ATX 12TH GEN INTEL MOTHERBOARD - 3
GIGABYTE B660 GAMING X AX DDR4 ATX 12TH GEN INTEL MOTHERBOARD - 4

GIGABYTE B660 GAMING X AX DDR4 ATX 12TH GEN INTEL MOTHERBOARD

0 Reviews
Stock : Out of Stock
PID : P0392506228
Brand : Gigabyte
Model : B660 GAMING X AX
Warranty : 3 years
  • Supported CPU: LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Proce...
  • Memory: Support for DDR4 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.)...
  • Supported Storage: CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support)...
  • LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Product Pricing

Discount Price

৳18,700 ৳19,000
+ Available Payment Method

EMI Start From*

৳658

SPECIFICATIONS

Processor

Supported CPU LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and
Celeron® Processors*

L3 cache varies with CPU

Mainboard

Chipset Intel B660 Express Chipset
BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Support for DDR4 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) /
3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) /
3400(O.C.) / 3333(O.C.) / 3300(O.C.) /3200/3000/2933/2666/2400/2133 MHz
memory modules

4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of
system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage
CPU:

1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD
support) (M2A_CPU)

Chipset:

1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD
support) (M2P_SB)

1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD
support) (M2M_SB)

4 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10

Graphics

Graphics Integrated Graphics Processor-Intel® HD Graphics support:

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support native HDMI 2.1 TMDS compatible ports.

Networking & Connectivity

LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
WiFi AMD Wi-Fi 6E RZ608 (MT7921K)

WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

BLUETOOTH 5.2

Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate
Bluetooth BLUETOOTH 5.2

Audio & Microphone

Audio Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

Ports

Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed,
be sure to install it in the PCIEX16 slot.

(The PCIEX16 slot conforms to PCI Express 4.0 standard.)

2 x PCI Express x16 slots, running at x1 (PCIEX1_1, PCIEX1_2)

(All of the PCI Express slots conform to PCI Express 3.0 standard.
Internal I/O Ports 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

3 x system fan headers

1 x system fan/water cooling pump header

2 x addressable LED strip headers

2 x RGB LED strip headers

3 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0
module only)

1 x serial port header

1 x Q-Flash Plus button

1 x reset button

1 x reset jumper

1 x Clear CMOS jumper

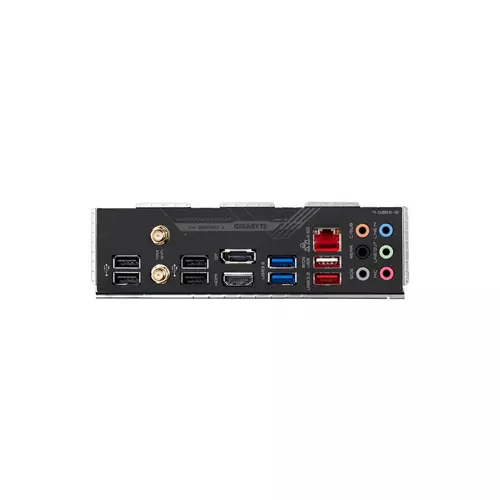

External I/O Ports 1 x USB 3.2 Gen 2 Type-A port (red)

2 x USB 3.2 Gen 1 ports

5 x USB 2.0/1.1 ports

1 x DisplayPort

1 x HDMI 2.0 port

1 x RJ-45 port

6 x audio jacks
USB 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header

1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

1 x USB 2.0/1.1 port on the back panel

Chipset+2 USB 2.0 Hubs:

8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Physical Specification

Form Factor ATX Form Factor
Dimension 30.5cm x 24.4cm

Warranty Information

Warranty 2 years

DESCRIPTION

Gigabyte B660 GAMING X AX DDR4 ATX Motherboard in Bangladesh

Leverage high-powered gaming components with the GIGABYTE B660 GAMING X AX DDR4 LGA 1700 ATX Motherboard. Designed for gaming enthusiasts, the GAMING X AX offers robust connectivity options, flexible power design, and an enhanced cooling system suitable for prolonged gaming sessions.

Based on the Intel B660 chipset, you get access to an LGA 1700 socket which is compatible with a wide range of 12th Gen Intel processors. Four DDR4 slots can handle up to 128GB of DDR4 RAM, taking multitasking capabilities to the next level. Save your gaming library on an array of storage drives with four SATA III ports and three M.2 PCIe interfaces. Equip your system with an array of graphics and utility cards with one PCIe 4.0 x16 slot and two PCIe 3.0 x16 slots running on x1 power format. You have a wide range of inputs at your disposal, allowing you to connect low-power devices such as mice and keyboards with USB 2.0 Type-A ports as well as support for resource-demanding peripherals like external drives and audio controllers with USB 3.2 Gen 1 and Gen 2 Type-A ports. You can also use Bluetooth 5.2 technology to connect wireless devices such as controllers and headsets. Connect to your network wirelessly with Wi-Fi 6 (802.11ax) or use an enhanced wired connection with a single 2.5 Gigabit Ethernet port, both suitable for intense online competitive gaming.

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the GIGABYTE B660 GAMING X AX DDR4 ATX 12TH GEN INTEL MOTHERBOARD Price in Bangladesh 2026 ?

The Gigabyte B660 GAMING X AX Price in BD is 18,700৳ . This GIGABYTE B660 GAMING X AX DDR4 ATX 12TH GEN INTEL MOTHERBOARD Manufacturing by Gigabyte Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte B660 GAMING X AX by 18,700৳ and its regular price is 19,000৳ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
