Gigabyte B560M H Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard
Gigabyte B560M H Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard

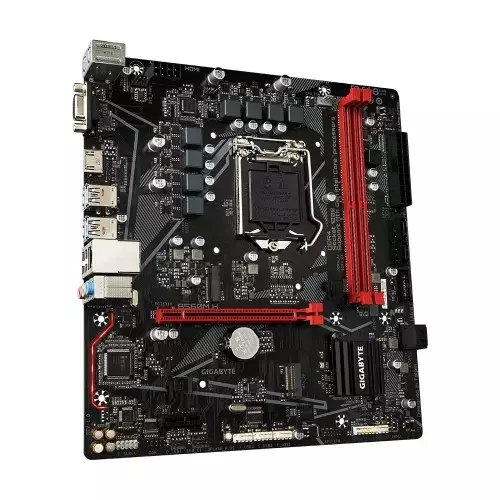

Gigabyte B560M H Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard - 1

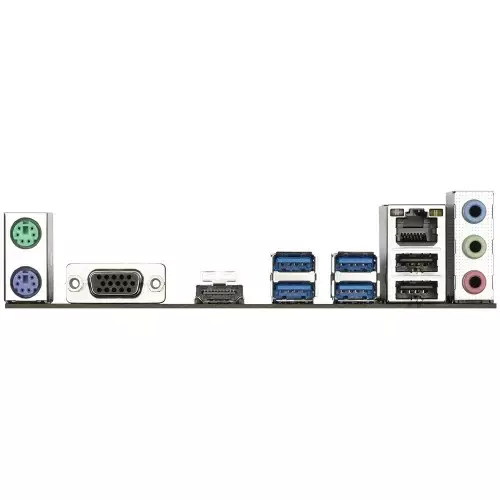

Gigabyte B560M H Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard - 2

Gigabyte B560M H Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard

0 Reviews
Stock : Out of Stock
PID : P0392506207
Brand : Gigabyte
Model : B560M H
Warranty : 3 years
  • Supported CPU: 1th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 process...
  • Memory: 64 GB (32 GB single DIMM capacity)
  • Supported Storage: CPU:1 x M.2 connector (Socket 3, M key, type 2260/ 2280 PCIe 4.0 x4/x2 SSD support) (M2P_C...
  • LAN: Realtek GbE LAN chip (1 Gbit/100 Mbit)

Product Pricing

Discount Price

৳11,000 ৳11,500
+ Available Payment Method

EMI Start From*

৳387

PRODUCT SPECIFICATIONS

Processor

Supported CPU 1th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors
10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors

Mainboard

Chipset Intel B560 Express Chipset
BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory 64 GB (32 GB single DIMM capacity)

Storage

Supported Storage CPU:1 x M.2 connector (Socket 3, M key, type 2260/ 2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note)

Chipset:

1 x M.2 connector (Socket 3, M key, type 2260/ 2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB)

4 x SATA 6Gb/s connectors

Intel Optane Memory Ready

Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz

1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz

* Support for HDMI 2.0 version and HDCP 2.3.

Networking & Connectivity

LAN Realtek GbE LAN chip (1 Gbit/100 Mbit)

Audio & Microphone

Audio Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

Ports

Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)

(The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note)

1 x PCI Express x1 slot (PCIEX1)

(The PCIEX1 slot conforms to PCI Express 3.0 standard.)
Internal I/O Ports 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

1 x addressable LED strip header

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

3 x USB 2.0/1.1 headers

1 x serial port header

1 x Clear CMOS jumper

1 x Q-Flash Plus button
USB Chipset:

6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Chipset+USB 2.0 Hub:

8 x USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers)
HDMI 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz

Others

Other Features D-Sub (s)

1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz

USB (s)

Chipset:br>
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Chipset + USB 2.0 Hub:

8 x USB 2.0/ 1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers)

Physical Specification

Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm

Warranty Information

Warranty 3 years

PRODUCT DESCRIPTION

Gigabyte B560M H Ultra Motherboard in Bangladesh

Gigabyte B560M H Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard supports 11th and 10th Gen Intel Core Series Processors. It has Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs. It features direct 6 + 2 Phases Digital VRM with Low RDS(on) MOSFETs. It has Shielded Memory Routing for Better Memory Overclocking. It comes with a Fully Covered Thermal Design with High Coverage MOSFET Heatsinks. It is powered by a Exclusive 8118 Gaming LAN with Bandwidth Management. It supports Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard It comes with Rear USB 3.2 Gen2 Type-C and Front USB3.2 Gen1 Type-C for Connecting Devices. It has pre-installed IO Shield for Easy and Quick Installation. RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips. Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card.
