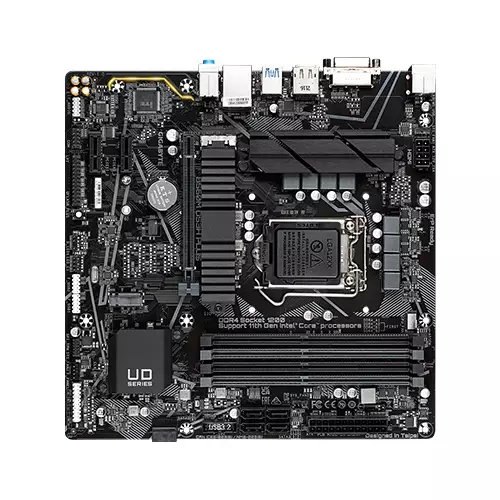

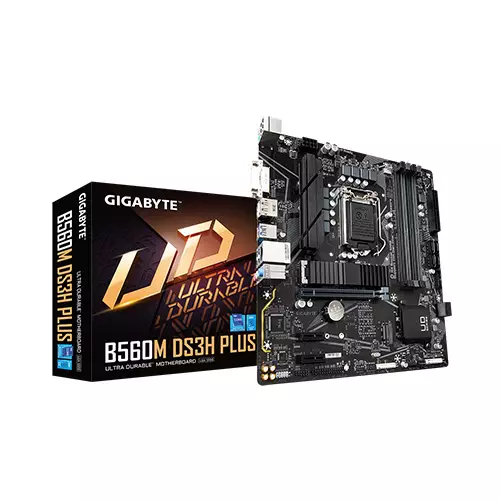

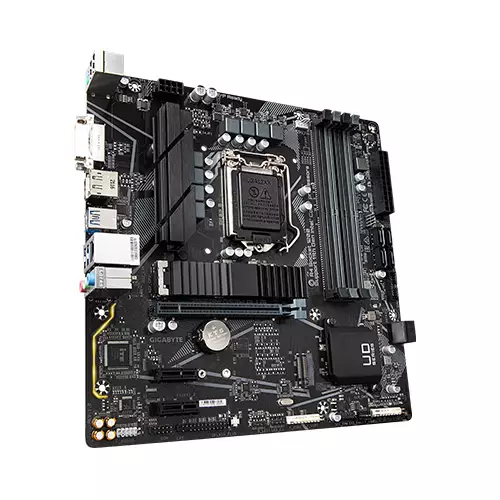

GIGABYTE B560M DS3H PLUS DDR4 MICRO ATX MOTHERBOARD
GIGABYTE B560M DS3H PLUS DDR4 MICRO ATX MOTHERBOARD
GIGABYTE B560M DS3H PLUS DDR4 MICRO ATX MOTHERBOARD - 1
GIGABYTE B560M DS3H PLUS DDR4 MICRO ATX MOTHERBOARD - 2
GIGABYTE B560M DS3H PLUS DDR4 MICRO ATX MOTHERBOARD - 3

GIGABYTE B560M DS3H PLUS DDR4 MICRO ATX MOTHERBOARD

0 Reviews
Stock : Out of Stock
PID : P0392506272
SKU : TLGBB560MD3PM
Brand : Gigabyte
Model : B560M DS3H PLUS
Warranty : 3 Years
  • Intel B560 Express Chipset
  • Micro ATX Form Factor
  • Realtek Audio CODEC
  • Support DDR4 MEMORY

Product Pricing

Discount Price

৳13,200 ৳13,500
+ Available Payment Method

EMI Start From*

৳465

SPECIFICATIONS

Processor

Supported CPU LGA1200 package:

11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors

10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*

* Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.

L3 cache varies with CPU

Mainboard

Chipset Intel® B560 Express Chipset
BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory 11th Generation Intel® Core™ i9/i7/i5 processors:

Support for DDR4 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz

10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules

10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

Storage

Supported Storage 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)*

* Supported by 11th Generation processors only.

Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)

6 x SATA 6Gb/s connectors
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Intel® Optane™ Memory Ready

* System acceleration with Intel® Optane™ Memory can only be enabled on the M2P_CPU connector and with an 11th Generation Intel® processor installed.

Graphics

Graphics Integrated Graphics Processor-Intel® HD Graphics support:

1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3

1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.

(Graphics specifications may vary depending on CPU support.)

Support for up to 3 displays at the same time

Networking & Connectivity

LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps)

Audio & Microphone

Audio Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first.

Ports

Slots 1 x PCI Express x16 slot, running at x16

(The PCIEX16 slot conforms to PCI Express 4.0 standard.)*
* Supported by 11th Generation processors only.

2 x PCI Express x1 slots
(The PCIEX1 slot conforms to PCI Express 3.0 standard.)
Internal I/O Ports 1 x 24-pin ATX main power connector,

1 x 8-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

1 x addressable LED strip header

1 x RGB LED strip header

6 x SATA 6Gb/s connectors

2 x M.2 Socket 3 connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x serial port header

1 x parallel port header

1 x Clear CMOS jumper

1 x Q-Flash Plus button

＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

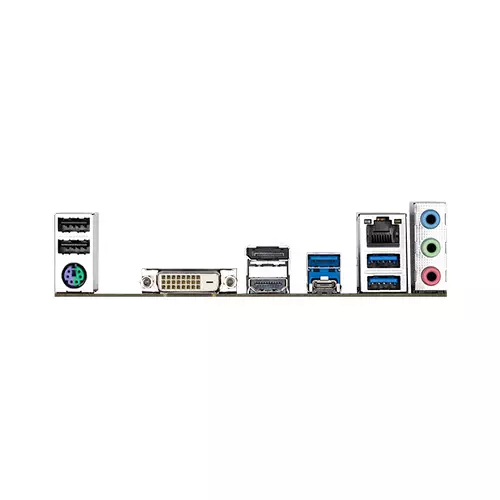

External I/O Ports 2 x USB 2.0/1.1 ports

1 x PS/2 keyboard/mouse port

1 x DVI-D port

1 x DisplayPort

1 x HDMI port

3 x USB 3.2 Gen 1 ports

1 x USB Type-C® port, with USB 3.2 Gen 1 support

1 x RJ-45 port

3 x audio jacks
USB 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support

5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

4 x USB 2.0/1.1 ports available through the internal USB headers

Chipset+USB 2.0 Hub:

2 x USB 2.0/1.1 ports on the back panel
HDMI 1 x port

Software

Software Features Norton® Internet Security (OEM version)

Realtek® Gaming LAN Bandwidth Control Utility

Special Features

Special Features Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

@BIOS
EasyTune

Fast Boot

Game Boost

ON/OFF Charge

RGB Fusion

Smart Backup

System Information Viewer

Support for Q-Flash Plus

Support for Q-Flash

Support for Xpress Install

Others

Other Features I/O Controller
iTE® I/O Controller Chip

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Fan fail warning

Fan speed control

Physical Specification

Form Factor Micro ATX
Dimension 24.4cm x 24.4cm

Warranty Information

Warranty 3 Years

DESCRIPTION

GIGABYTE B560M DS3H PLUS DDR4 MICRO ATX MOTHERBOARD

Features

  • Supports 11th and 10th Gen Intel®  Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0* x4 M.2 with one Thermal Guard
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • USB 3.2 Gen1 Type-C® for Fast and Versatile Connections
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

Digital PWM Controller to deliver appropriate voltage to the CPU.

Direct 6+2Phases Low RDS(on) MOSFETs without PWM Doublers, each power phase connects directly to the CPU.

All-solid capacitors to improve transient response and minimize oscillation.

8-pin Solid Pin CPU Power Connector.

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

Digital PWM Controller to deliver appropriate voltage to the CPU.

Direct 6+2Phases Low RDS(on) MOSFETs without PWM Doublers, each power phase connects directly to the CPU.

All-solid capacitors to improve transient response and minimize oscillation.

8-pin Solid Pin CPU Power Connector.

RGB FUSION 2.0

With B560 Motherboard, RGB Fusion 2.0 is even better with Addressable LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on B560 Series Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations. With B560 Motherboard will support either 5v or 12v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.

Solid Pin Power Connectors

B560 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages

Larger contact area for electricity

More metal quantity to sustain higher power and generated heat

Ultra durable and longer lifespan
