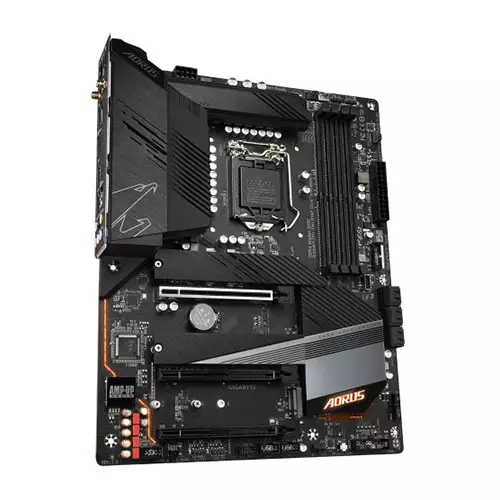

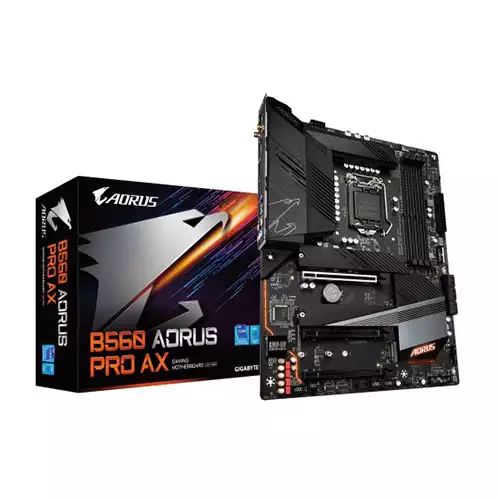

GIGABYTE B560 AORUS PRO AX Intel 10th and 11th Gen ATX Motherboard
GIGABYTE B560 AORUS PRO AX Intel 10th and 11th Gen ATX Motherboard
GIGABYTE B560 AORUS PRO AX Intel 10th and 11th Gen ATX Motherboard - 1
GIGABYTE B560 AORUS PRO AX Intel 10th and 11th Gen ATX Motherboard - 2

GIGABYTE B560 AORUS PRO AX Intel 10th and 11th Gen ATX Motherboard

0 Reviews
Stock : Up Coming
PID : P0392506145
Brand : Gigabyte
Model : B560 AORUS PRO AX
Warranty : 3 years
  • Supported CPU: 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 proces...
  • Memory: Type DDR4 Slots 4 x DIMM Supported Memory 11th Generation Intel Core i9/ i7/ i5 processors...
  • Supported Storage: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 PCIe 4.0 x4/ x2 SSD support) (M...
  • LAN: Intel 2.5GbE LAN chip (2.5 Gbit/ 1 Gbit/ 100 Mbit)

SPECIFICATIONS

Processor

Supported CPU 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors
10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
L3 cache varies with CPU

Mainboard

Chipset Intel B560 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Type DDR4
Slots 4 x DIMM
Supported Memory 11th Generation Intel Core i9/ i7/ i5 processors:
Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/ DDR4 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
10th Generation Intel Core i9/ i7 processors:
Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules
10th Generation Intel Core i5/ i3 /Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Mamory 128 GB (32 GB single DIMM capacity)

Storage

Supported Storage 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 PCIe 4.0 x4/ x2 SSD support) (M2P_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/x2 SSD support)(M2A_SB)
1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 PCIe 3.0 x4/ x2 SSD support) (M2B_SB)
6 x SATA 6Gb/s connectors
Intel Optane Memory Ready

Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096 x 2304 @60 Hz
1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

Networking & Connectivity

LAN Intel 2.5GbE LAN chip (2.5 Gbit/ 1 Gbit/ 100 Mbit)

Audio & Microphone

Audio Realtek ALC4080 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

Ports

Slots PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x16 slot, running at x1 (PCIEX1)
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 PCIe 4.0 x4/ x2 SSD support) (M2P_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/x2 SSD support)(M2A_SB)
1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 PCIe 3.0 x4/ x2 SSD support) (M2B_SB)
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x S/PDIF Out header
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x Clear CMOS jumper
1 x Q-Flash Plus button

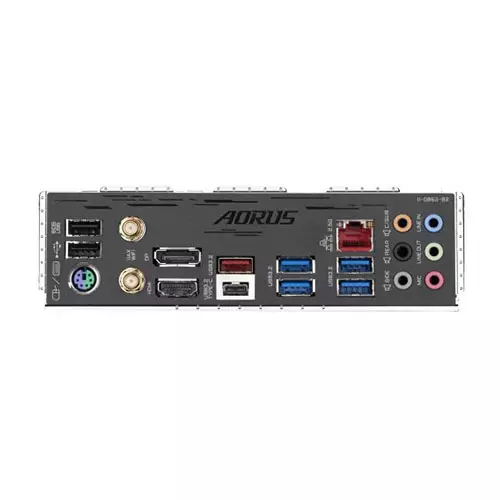

External I/O Ports 1 x PS/2 keyboard/mouse port
1 x DisplayPort
1 x HDMI port
2 x SMA antenna connectors (2T2R)
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks
USB 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 2.0/ 1.1 ports on the back panel
Chipset+2 USB 3.2 Gen 1 Hubs:
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Chipset+1 USB 2.0 Hub:
4 x USB 2.0/ 1.1 ports available through the internal USB headers

Physical Specification

Form Factor ATX Form Factor; 30.5cm x 24.4cm

Warranty Information

Warranty 03 Years

DESCRIPTION

Gigabyte B560 AORUS PRO AX Motherboard


B560 AORUS PRO AX

The B560 AORUS PRO AX comes with upgraded power solution, incredible cooling design, all PCIe 4.0 design and outstanding connectivity to elevate your gaming experience to the next level.


DIRECT POWER DESIGN

B560 AORUS motherboard uses an 12+1 phases digital CPU power design which includes both digital PWM Controller and DrMOS. These 100% digital controller and additional 8 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new Intel 11th Gen CPU.


ADVANCED THERMAL SOLUTION

B560 AORUS uses high performance Fully Covered thermal design with high coverage MOSFET Heatsinks and thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers.


PERFORMANCE

With the best quality components and GIGABYTE R&D design capability, the B560 AORUS is a true beast among motherboards.


NEXT GENERATION CONNECTIVITY

A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. B560 AORUS PRO AX provides all next generation network, storage, and WIFI connectivity to keep you up to speed.


DEFINITIVE AESTHETICS

B560 AORUS PRO AX features RGB FUSION 2.0 and offers users the option to control onboard, external light strips, and/or AORUS devices with RGB / Addressable RGB LEDs to make their PC more unique and stylish.


ULTRA DURABLE

GIGABYTE is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the B560 AORUS motherboard and reinforce every slot to make each of them solid and durable.


REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the GIGABYTE B560 AORUS PRO AX Intel 10th and 11th Gen ATX Motherboard Price in Bangladesh 2026 ?

The Gigabyte B560 AORUS PRO AX Price in BD is 16,500৳ . This GIGABYTE B560 AORUS PRO AX Intel 10th and 11th Gen ATX Motherboard Manufacturing by Gigabyte Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte B560 AORUS PRO AX by 16,500৳ and its regular price is 17,500৳ Which is also Up Coming Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
