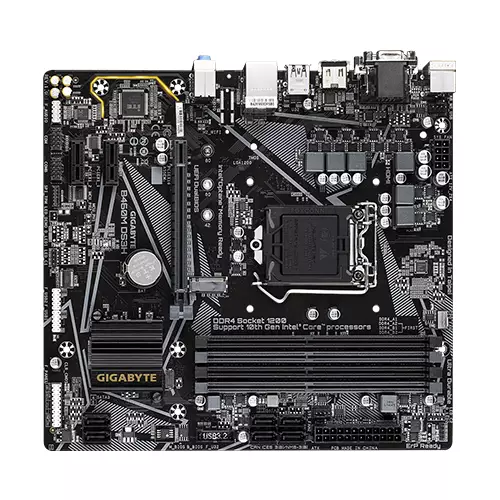

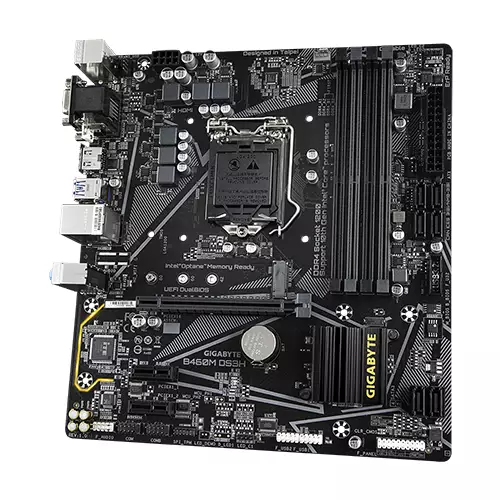

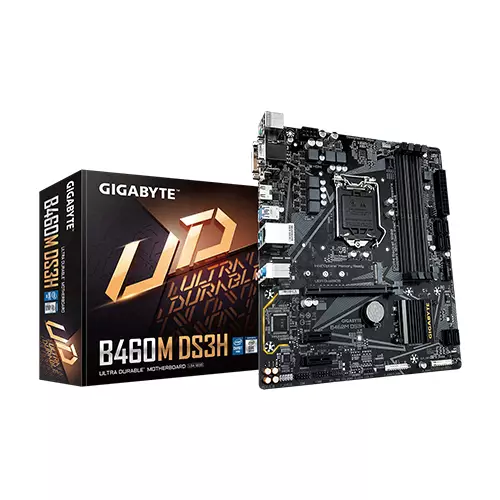

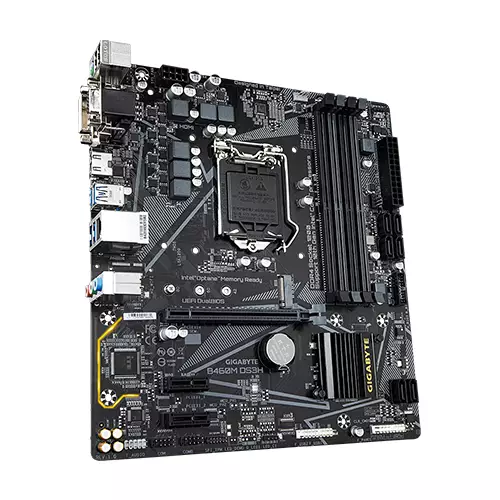

Gigabyte B460M DS3H 10th Gen Micro ATX Motherboard
Gigabyte B460M DS3H 10th Gen Micro ATX Motherboard
Gigabyte B460M DS3H 10th Gen Micro ATX Motherboard - 1
Gigabyte B460M DS3H 10th Gen Micro ATX Motherboard - 2
Gigabyte B460M DS3H 10th Gen Micro ATX Motherboard - 3

Gigabyte B460M DS3H 10th Gen Micro ATX Motherboard

0 Reviews
Stock : Discontinued
PID : P00025064913
Brand : Gigabyte
Model : B460M DS3H
Warranty : 3 Years
  • Intel Optane Memory Ready
  • Anti-Sulfur Resistors Design
  • GIGABYTE UEFI DualBIOS
  • Supports 10th Gen Intel Core Processors

SPECIFICATIONS

Processor

Supported CPU Support for 10th Generation Intel® Core™ i9 processors/
Intel® Core™ i7 processors/
Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package

L3 cache varies with CPU

Mainboard

Chipset Intel B460 Express Chipset
BIOS 2 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

Support for DualBIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz

Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

Storage

Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)

6 x SATA 6Gb/s connectors

Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10

* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Graphics

Graphics Integrated Graphics Processor-Intel® HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

* The DVI-D port does not support D-Sub connection by adapter.

1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

* Support for HDMI 1.4 version and HDCP 2.3.

Support for up to 3 displays at the same time
Maximum shared memory of 512 MB

Networking & Connectivity

LAN Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

Audio & Microphone

Audio Realtek® ALC887 codec

High Definition Audio

2/4/5.1/7.1-channel

Ports

Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)

2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)

Supports up to ASPM L1.2 power management protocols.
Internal I/O Ports 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

2 x RGB LED strip headers

6 x SATA 6Gb/s connectors

1 x M.2 Socket 3 connector

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

2 x serial port headers

1 x Clear CMOS jumper
External I/O Ports 1 x PS/2 keyboard/mouse port

1 x D-Sub port

1 x DVI-D port

1 x HDMI port

4 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks
USB 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers

Physical Specification

Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm

Warranty Information

Warranty 03 Years

DESCRIPTION

Gigabyte B460M DS3H 10th Gen Micro ATX Motherboard in Bangladesh

Features :

  • Supports 10th Gen Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4 , 4 DIMMs
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Anti-Sulfur Resistors Design
  • Ultra Durable™ 15KV Surge LAN Protection
  • GIGABYTE UEFI DualBIOS™
  • Intel® Optane™ Memory Ready
**03 Years Warranty


Exclusive Realtek 8118 Gaming LAN

High Speed Gigabit LAN with Automatic Bandwidth Allocation

Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.


NVMe PCIe Gen3 x4 2280 M.2 Connector (Up to 32 Gb/s)

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.


GIGABYTE Patented DualBIOS™ Design

GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.


Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.


High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.


Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
