| Stock Status | Discontinue |
| Product ID | 13282 |
| Brand | |
| Product model | B460M Aorus Pro |
| Warranty | 3 years |
| Total Reviews | Based on 0 reviews. - Write a review |
Discontinue
- Stock availability is subject to change. Please confirm availability before shopping by calling us.
- The product image is for illustration purposes only. The actual product may vary in size, color, and layout. No claim will be accepted for an image mismatch.
- Tech Land BD can change the price of any product at any moment due to the volatile price of the technology.
- We cannot guarantee that the information on this page is 100% correct. Tech Land BD is not responsible for the results obtained from the use of this information.
| Processor | |
| Supported CPU | Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package |
| Mainboard | |
| Chipset | Intel B460 Express Chipset |
| Memory | |
| Memory | Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Storage | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready |
| Graphics | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz Support for up to 3 displays at the same time |
| Audio & Microphone | |
| Audio | Realtek® ALC1200 codec High Definition Audio 2/4/5.1/7.1-channel |
| Networking & Connectivity | |
| LAN | Intel GbE LAN chip (1000 Mbit/100 Mbit) |
| Ports | |
| Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI) M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_SB) |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |

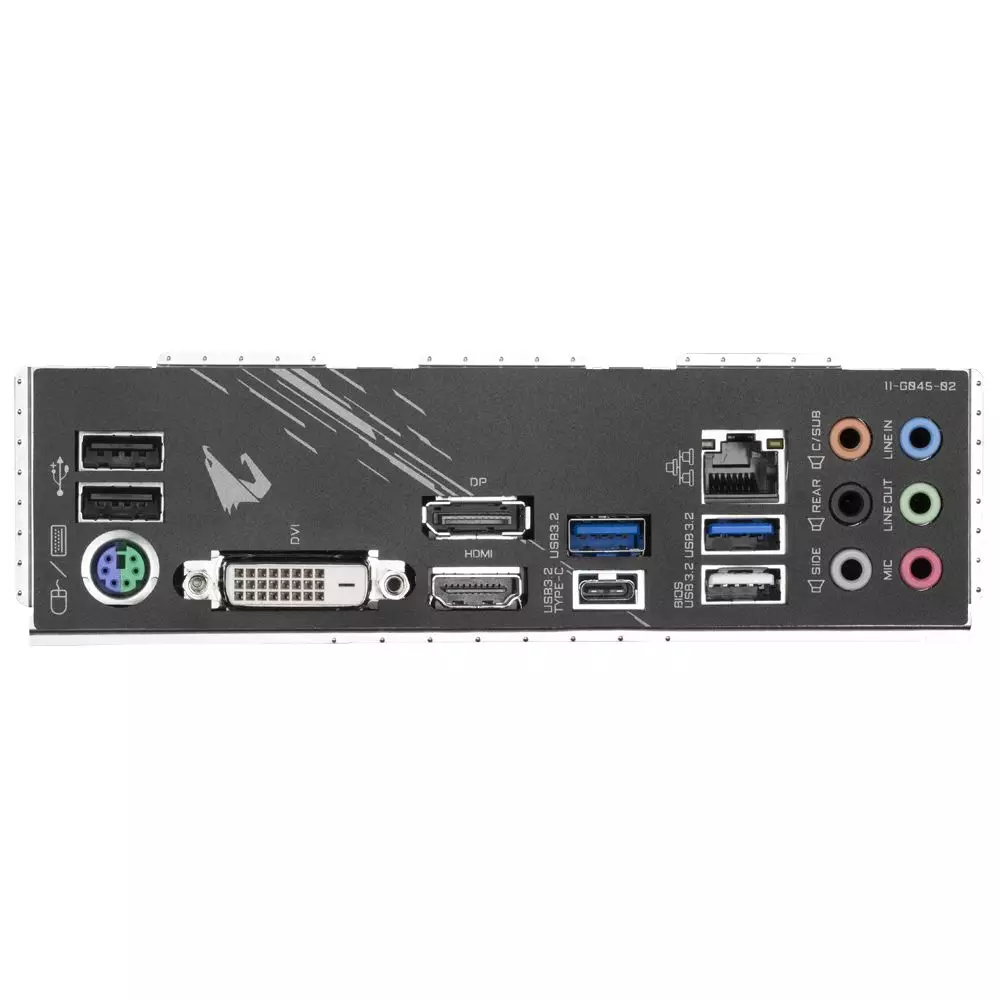

| External I/O Ports | 1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x DisplayPort 1 x HDMI port 1 x USB Type-C™ port, with USB 3.2 Gen 1 support 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks |
| USB | 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Technical Info | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Physical Specification | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Warranty Information | |
| Warranty | 03 Years |

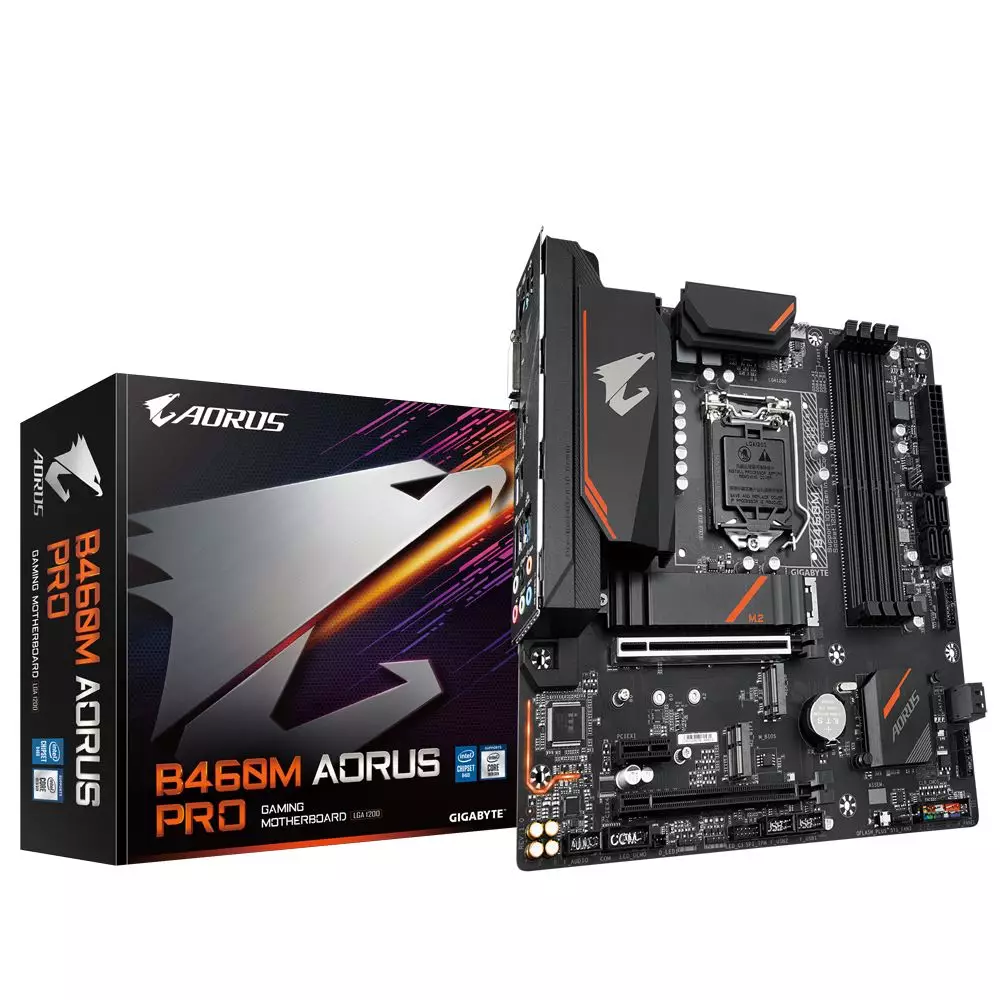

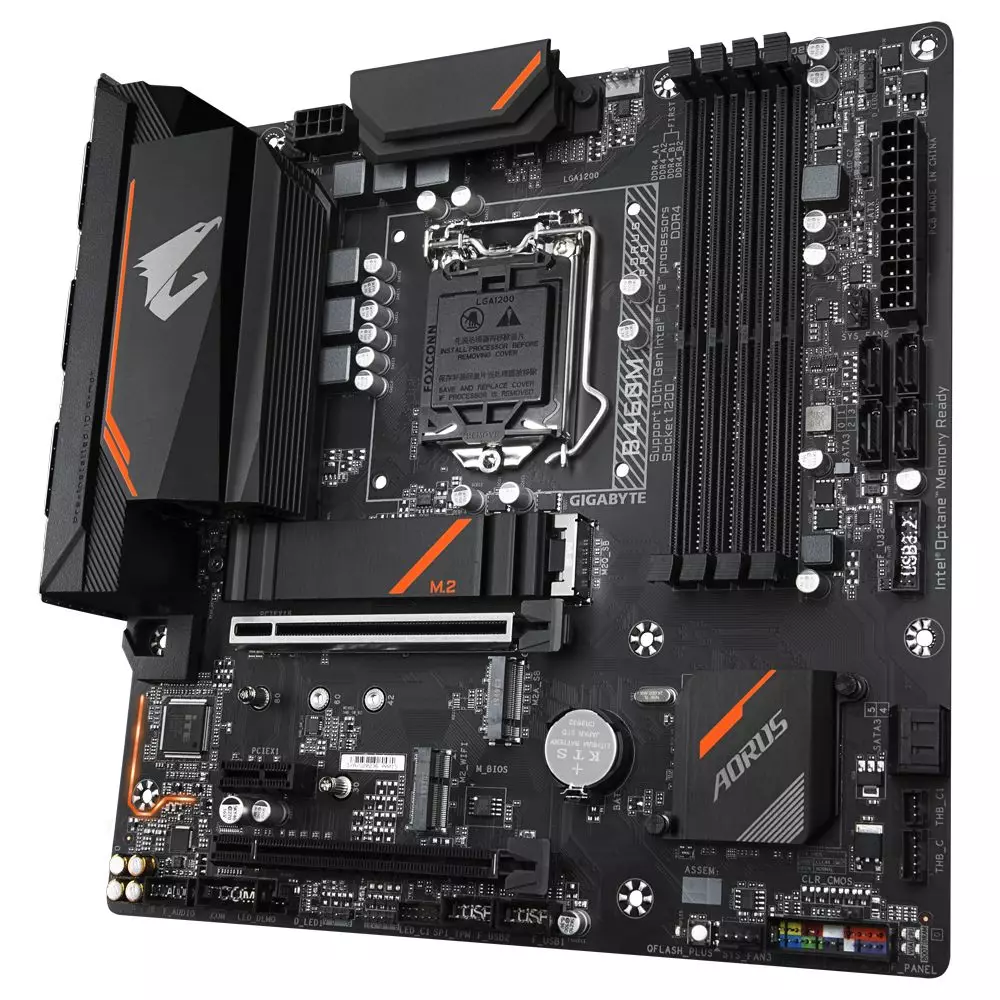

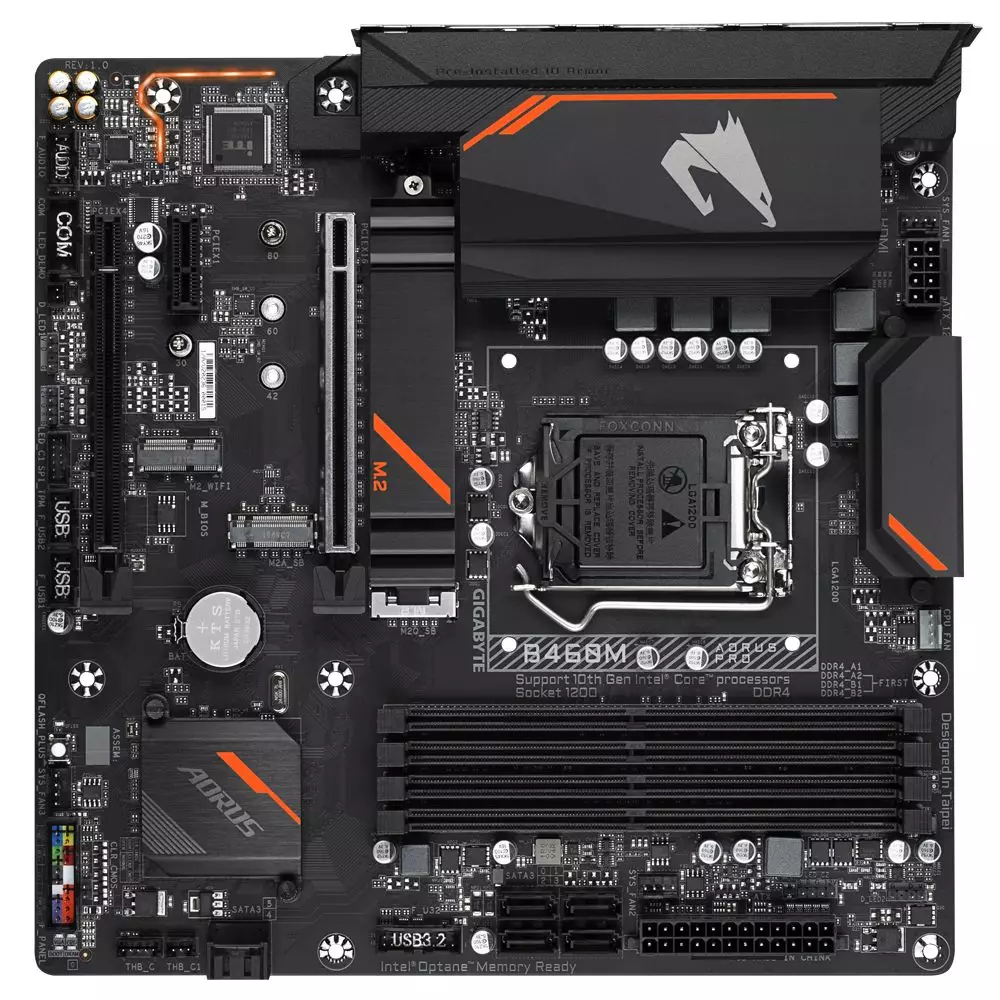

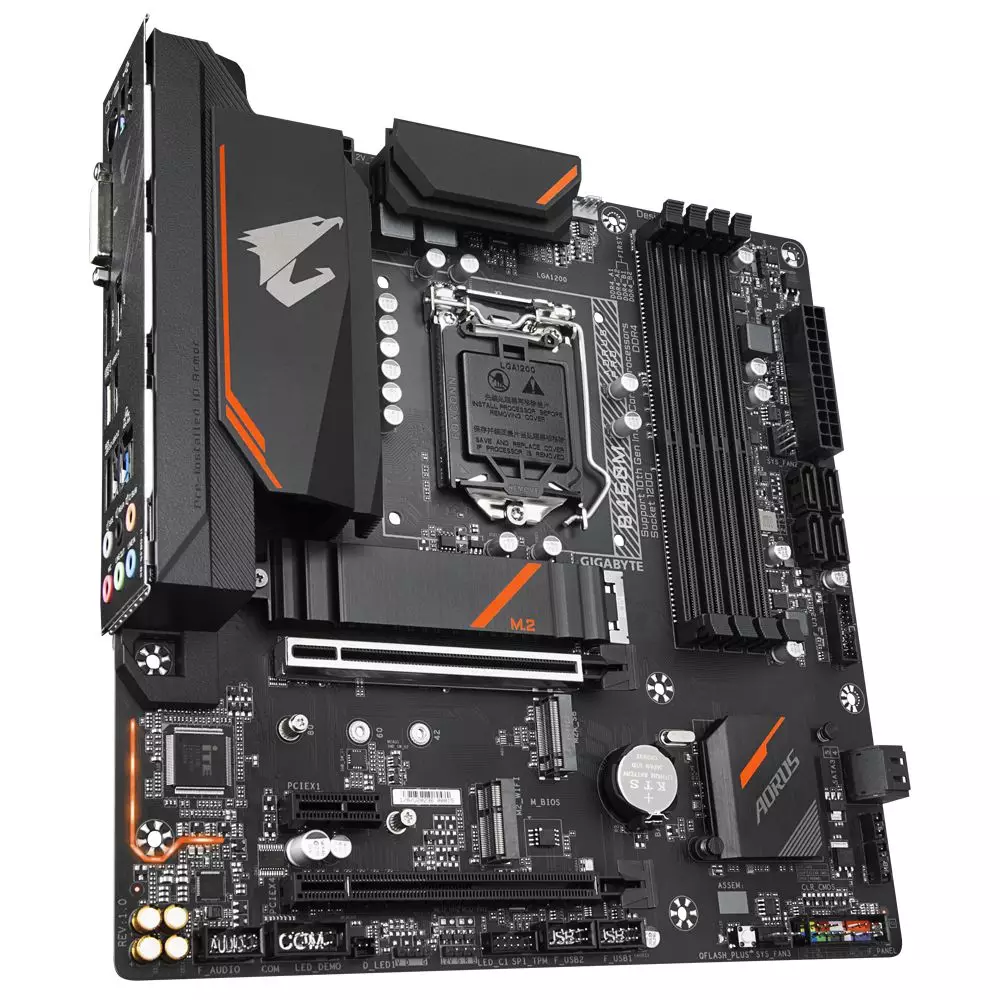

Gigabyte B460M Aorus Pro Motherboard
| Features : |
|
| **03 Years Warranty |
Gigabyte B460M Aorus Pro Motherboard
The Gigabyte B460M Aorus Pro Motherboard use a 8+2 phase digital PWM + Lower RDS(on) MOSFETs design to support the latest 10-core Intel® Core™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability. ith the best quality components and GIGABYTE R&D design capability, the Gigabyte B460M Aorus Pro Motherboard is a true beast among motherboards. The maximum memory capacity on the B460 motherboard is 128GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channels, total memory capacity is 128GB, which was only available on High-End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive applications such as rendering and video editing. Gigabyte B460M Aorus Pro Motherboard are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential. With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high-speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. With Smart Fan, 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the Gigabyte B460M Aorus Pro Motherboard.
