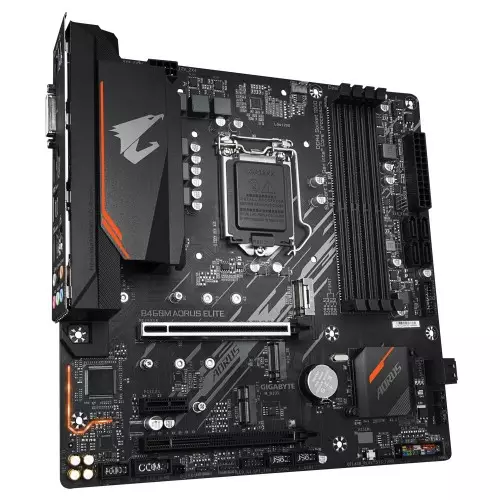

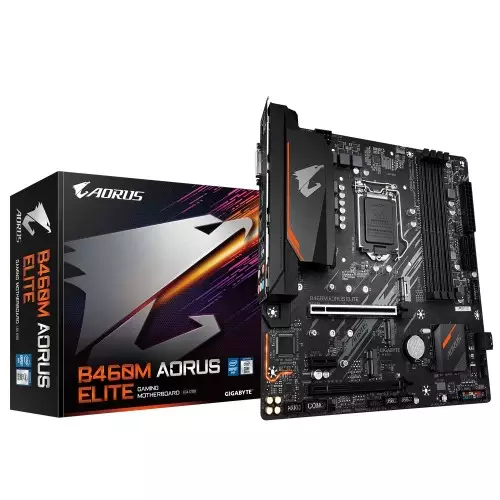

Gigabyte B460M Aorus Elite DDR4 10th Gen Intel Micro ATX Motherboard
Gigabyte B460M Aorus Elite DDR4 10th Gen Intel Micro ATX Motherboard
Gigabyte B460M Aorus Elite DDR4 10th Gen Intel Micro ATX Motherboard - 1
Gigabyte B460M Aorus Elite DDR4 10th Gen Intel Micro ATX Motherboard - 2

Gigabyte B460M Aorus Elite DDR4 10th Gen Intel Micro ATX Motherboard

0 Reviews
Stock : Discontinued
PID : P00025062490
Brand : Gigabyte
Model : B460M Aorus Elite
Warranty : 3 Years
  • Chipset: Intel B460 Express Chipset
  • Supported CPU: Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i...
  • LAN: Intel GbE LAN chip (1000 Mbit/100 Mbit)
  • Slots: 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x4...

SPECIFICATIONS

Processor

Supported CPU Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package

Mainboard

Chipset Intel B460 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Type Dual channel memory architecture
Slots 4 x DDR4 DIMM sockets
Supported Memory Intel Core i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
Intel Core i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Mamory 128 GB

Storage

Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_SB)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_SB)
6 x SATA 6Gb/s connectors
Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
Intel Optane Memory Ready
M.2 connectors support up to ASPM L1.2 PCIe power management protocols.

Graphics

Graphics Graphics 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
Support for up to 3 displays at the same time
Max Shared Memory 512 MB

Networking & Connectivity

LAN Intel GbE LAN chip (1000 Mbit/100 Mbit)

Audio & Microphone

Audio Realtek ALC1200 codec
High Definition Audio
2/4/5.1/7.1-channel

Ports

Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
6 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button

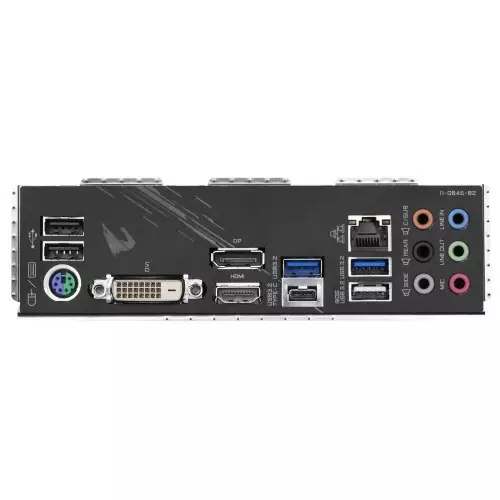

External I/O Ports 1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x DisplayPort
1 x HDMI port
1 x USB Type-C™ port, with USB 3.2 Gen 1 support
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks
USB Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers

Physical Specification

Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

Warranty Information

Warranty 03 Years

DESCRIPTION

Gigabyte B460M Aorus Elite Motherboard

Features :

  • Supports 10th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Advanced Thermal Design with Enlarged Heatsink
  • Exclusive Ultra Durable™ PCIe Metal Shielding
  • Dual NVMe PCIe  PCIe 3.0 X4 M.2 Connectors
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Blazing Fast Intel® GbE LAN with cFosSpeed
  • Intel® USB 3.2 Gen1 Type-C™ Support
  • M.2 E-key Slot for PCIe WIFI Module Upgradable
  • AMP-UP Audio with ALC1200 with Nichicon MW Audio Capacitors
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Pre-installed IO Shield for Easy and Quick Installation
  • Q-Flash Plus Update BIOS without Installing the CPU、Memory and Graphics Card
**03 Years Warranty

Gigabyte B460M Aorus Elite Motherboard

GIGABYTE 400 series motherboards use a 4+2 Hybrid digital PWM + Lower RDS(on) MOSFETs design to support the latest Intel Core CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability. The maximum memory capacity on the B460 motherboard is 128GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channel, total memory capacity is 128GB, which was only available on High End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing. AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential. With an integrated base plate, GIGABYTE Motherboards give users a strong foundation to build their Gaming PCs. With an integrated I/O shield, building a GIGABYTE Ultra Durable PC is even easier.
