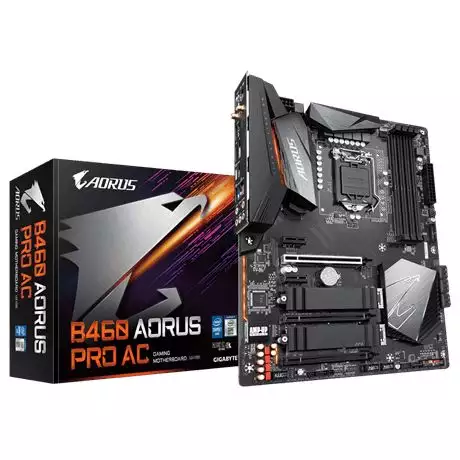

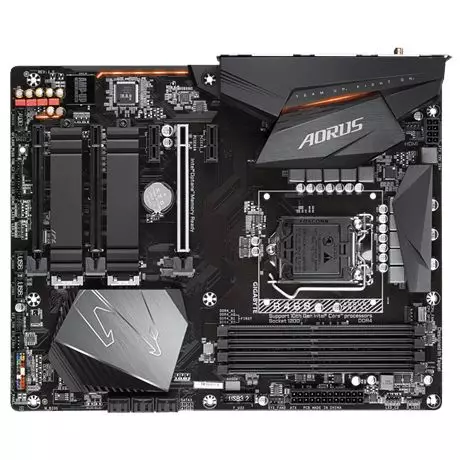

Gigabyte B460 Aorus Pro AC Intel 10th Gen ATX Motherboard
Gigabyte B460 Aorus Pro AC Intel 10th Gen ATX Motherboard
Gigabyte B460 Aorus Pro AC Intel 10th Gen ATX Motherboard - 1
Gigabyte B460 Aorus Pro AC Intel 10th Gen ATX Motherboard - 2

Gigabyte B460 Aorus Pro AC Intel 10th Gen ATX Motherboard

0 Reviews
Stock : Discontinued
PID : P00025061813
Brand : Gigabyte
Model : B460 Aorus Pro AC
Warranty : 3 Years
  • Chipset: Intel B460 Express Chipset
  • Supported CPU: 10th Generation Intel
  • LAN: Intel 2.5GbE LAN chip
  • Audio: Realtek ALC887

SPECIFICATIONS

Processor

Supported CPU Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package

Mainboard

Chipset Intel B460 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Intel Core i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz
Intel Core i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_SB)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10

Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

Networking & Connectivity

LAN Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wireless Communication module
Intel Wi-Fi 9260
Wi-Fi 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.0
Support for 11ac 160MHz wireless standard and up to 1.73 Gbps data rate

Audio & Microphone

Audio Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

Ports

Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
3 x PCI Express x1 slots
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_SB)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_SB)
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
6 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
2 x Thunderbolt™ add-in card connectors
1 x Clear CMOS jumper
1 x Q-Flash Plus button

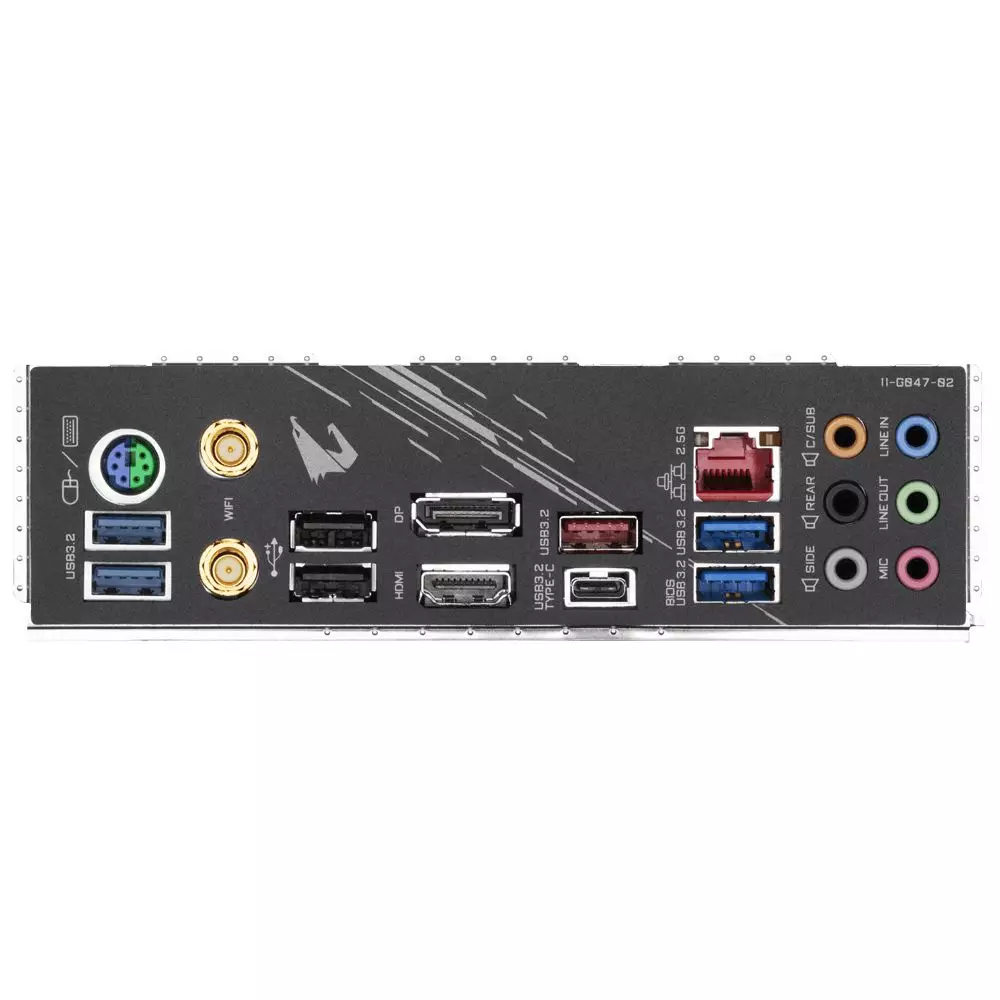

External I/O Ports 1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
1 x USB Type-C™ port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks
USB Chipset+ASMedia USB 3.2 Gen 2 Controller:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
Chipset:
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 2.0 Hub:
2 x USB 2.0/1.1 ports on the back panel

Physical Specification

Form Factor ATX Form Factor; 30.5cm x 24.4cm

Warranty Information

Warranty 03 Years

DESCRIPTION

Gigabyte B460 Aorus Pro AC Motherboard

Features :

  • Supports 10th Gen Intel® Core™ Series Processors
  • Direct 8+2 Phases Digital VRM Solution
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Advanced Thermal Design with Enlarged Heatsink
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Dual Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Thermal Guards
  • Intel® 802.11ac Wave2 2T2R WIFI & BT 5
  • Blazing Fast Intel® 2.5 GbE LAN with cFosSpeed
  • Intel® USB 3.2 Gen2 Type-C™ Support
  • ALC 1220 120dB SNR HD Audio with WIMA & Nichicon MW Audio Capacitors
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Easy and Quick Installation: Pre-installed IO Shield
  • Q-Flash Plus Update BIOS without Installing the CPU、Memory and Graphics Card
  • Intel Optane Memory Ready
**03 Years Warranty

Gigabyte B460 Aorus Pro AC Motherboard

The Gigabyte B460 Aorus Pro AC Motherboard use a 8+2 phase digital PWM + Lower RDS(on) MOSFETs design to support the latest 10-core Intel® Core™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability. ith the best quality components and GIGABYTE R&D design capability, the Gigabyte B460 Aorus Pro AC Motherboard is a true beast among motherboards. The maximum memory capacity on the B460 motherboard is 128GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channels, total memory capacity is 128GB, which was only available on High-End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive applications such as rendering and video editing. GIGABYTE Gigabyte B460 Aorus Pro AC Motherboard are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential. With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high-speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. With Smart Fan, 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the Gigabyte B460 Aorus Pro AC Motherboard.


REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Gigabyte B460 Aorus Pro AC Intel 10th Gen ATX Motherboard Price in Bangladesh 2026 ?

The Gigabyte B460 Aorus Pro AC Price in BD is 44,000৳ . This Gigabyte B460 Aorus Pro AC Intel 10th Gen ATX Motherboard Manufacturing by Gigabyte Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte B460 Aorus Pro AC by 44,000৳ and its regular price is 46,500৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
