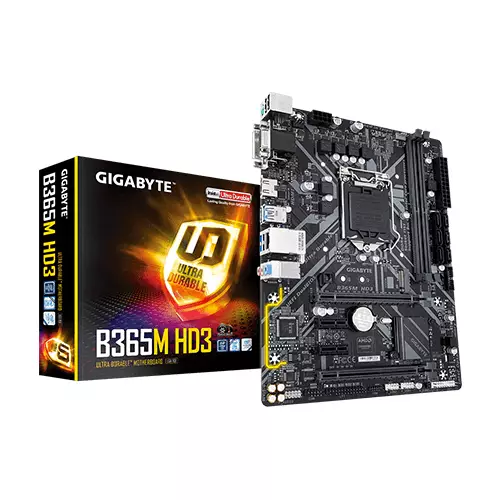

GIGABYTE B365M HD3 Ultra Durable M.2 Intel Gaming motherboard
GIGABYTE B365M HD3 Ultra Durable M.2 Intel Gaming motherboard

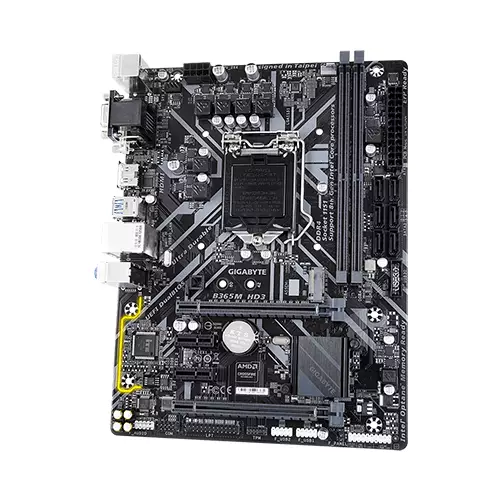

GIGABYTE B365M HD3 Ultra Durable M.2 Intel Gaming motherboard - 1
GIGABYTE B365M HD3 Ultra Durable M.2 Intel Gaming motherboard - 2

GIGABYTE B365M HD3 Ultra Durable M.2 Intel Gaming motherboard

0 Reviews
Stock : Discontinued
PID : P00025061244
Brand : Gigabyte
Model : B365M HD3
Warranty : 3 Years
  • Anti-Sulfur Resistors Design
  • Ultra Durable 15KV Surge LAN Protection
  • Intel Optane Memory Ready
  • GIGABYTE UEFI DualBIOS

SPECIFICATIONS

Processor

Supported CPU Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU

Mainboard

Chipset Intel B365 Express Chipset
BIOS 2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
Dual channel memory architecture
Support for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 mem

Storage

Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10

Graphics

Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

Networking & Connectivity

LAN Realtek® GbE LAN chip (10/100/1000 Mbit)

Audio & Microphone

Audio Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel

Ports

Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1 slots
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x parallel port header
1 x serial port header
1 x Clear CMOS jumper
External I/O Ports 1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
USB 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Physical Specification

Form Factor Micro ATX Form Factor; 24.4cm x 18.5cm

Warranty Information

Warranty 03 Years

DESCRIPTION

GIGABYTE B365M HD3 Ultra Durable M.2 Intel Gaming Motherboard

Features :

●︎ Supports 9th and 8th Gen Intel Core Processors

●︎ Dual Channel Non-ECC Unbuffered DDR4

●︎ New Hybrid Digital PWM Design

●︎ High-Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting

●︎ Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface

●︎ GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management

●︎ CEC 2019 Ready, Save the Power as Easy as One Click

●︎ Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

●︎ Anti-Sulfur Resistors Design

●︎ Ultra Durable 15KV Surge LAN Protection

●︎ Intel Optane Memory Ready

●︎ GIGABYTE UEFI DualBIOS

**03 Year Warranty


REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the GIGABYTE B365M HD3 Ultra Durable M.2 Intel Gaming motherboard Price in Bangladesh 2026 ?

The Gigabyte B365M HD3 Price in BD is 23,500৳ . This GIGABYTE B365M HD3 Ultra Durable M.2 Intel Gaming motherboard Manufacturing by Gigabyte Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte B365M HD3 by 23,500৳ and its regular price is 25,500৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
