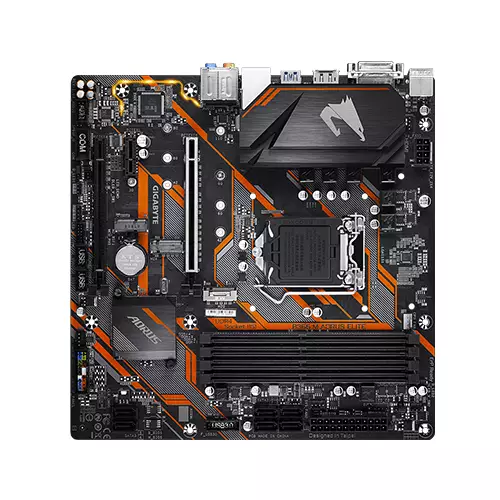

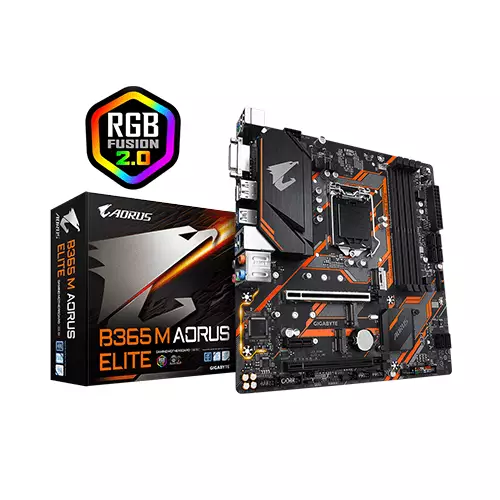

GIGABYTE B365M AORUS ELITE Intel Motherboard
GIGABYTE B365M AORUS ELITE Intel Motherboard
GIGABYTE B365M AORUS ELITE Intel Motherboard - 1
GIGABYTE B365M AORUS ELITE Intel Motherboard - 2

GIGABYTE B365M AORUS ELITE Intel Motherboard

0 Reviews
Stock : Discontinued
PID : P00025061354
Brand : Gigabyte
Model : B365 M AORUS ELITE
Warranty : 3 Years
  • Chipset: intel B365 Express Chipset
  • Supported CPU: Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/I...
  • LAN: Intel GbE LAN chip (10/100/1000 Mbit)
  • Slots: 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one...

PRODUCT SPECIFICATIONS

Processor

Supported CPU Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU

Mainboard

Chipset intel B365 Express Chipset
BIOS 2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2A)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10

Graphics

Graphics 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
0@30 Hz

Networking & Connectivity

LAN Intel GbE LAN chip (10/100/1000 Mbit)

Audio & Microphone

Audio Realtek ALC892 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

Ports

Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x addressable LED strip power select jumpers
2 x RGB LED strip headers
6 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper

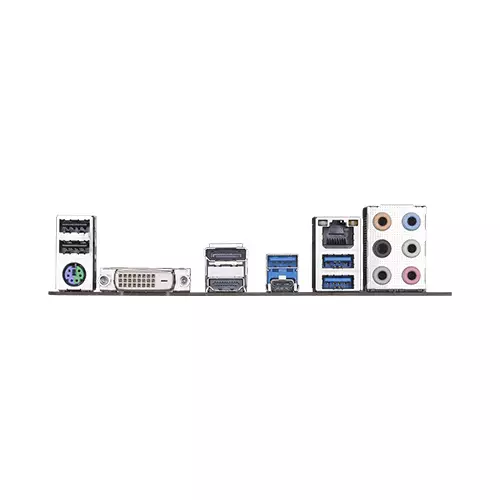

External I/O Ports 1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x DisplayPort
1 x HDMI port
1 x USB Type-C™ port, with USB 3.1 Gen 1 support
3 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks
USB 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support
5 x USB 3.1 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Physical Specification

Form Factor icro ATX Form Factor; 24.4cm x 24.4cm

Warranty Information

Warranty 03 Years

PRODUCT DESCRIPTION

GIGABYTE B365 M AORUS ELITE Intel Motherboard

Specifications :
  • Supports 9th and 8th Gen Intel Core Processors
  • Dual Channel Non-ECC Unbuffered DDR4
  • New Hybrid Digital PWM Design
  • M.2 Socket 1 slot for WIFI upgradable
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • Dual Ultra-Fast M.2 with PCIe Gen3 X4/X4 & SATA interface
  • RGB FUSION 2.0 with Digital LED Light Show design
  • Intel USB 3.1 Gen1 USB Type-C
  • Intel GbE LAN with cFosSpeed Internet Accelerator Software
  • CEC 2019 Ready, Save the Power as Easy as One Click
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Anti-Sulfur Resistors Design
  • Ultra Durable 25KV ESD and 15KV Surge LAN Protection
  • Intel Optane Memory Ready
**03 Year Warranty


GIGABYTE B365 M AORUS ELITE Intel Motherboard

The B365 M AORUS ELITE Motherboard from Gigabyte is built on the Intel B365 Express chipset and has a 1151 socket designed for 9th and 8th generation Intel Core, Pentium Gold, and Celeron processors. It's equipped with four DDR4 memory slots that support up to 64GB of 2666 MHz RAM. For storage, it has five SATA III ports and a single M.2 slot, which also supports Intel Optane Memory. As a gaming-focused board, the B365 M AORUS ELITE has two PCIe 3.0 x 16 slots, ideal for graphics cards, and four PCIe 3.0 x 1 slots for other PCIe-based hardware. Other integrated features include Intel Gigabit LAN, DVI-D and DisplayPort outputs, and Realtek ALC892 7.1-channel high-definition audio. Moreover, this motherboard is equipped with RGB lighting that you can customize using MSI's downloadable software.
