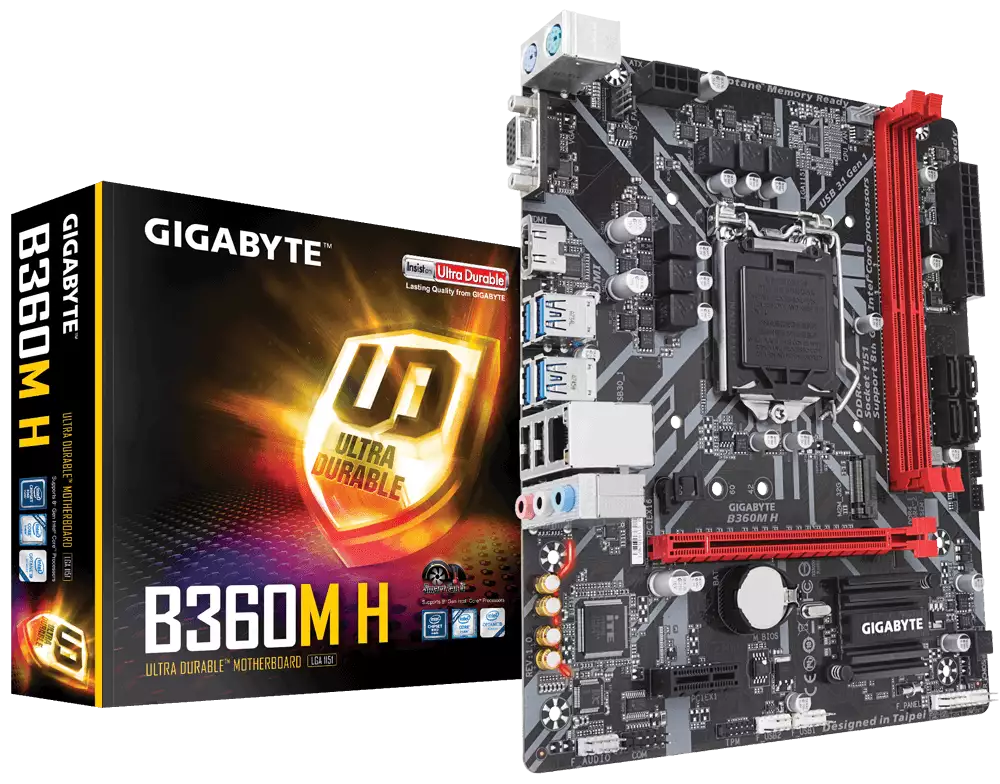

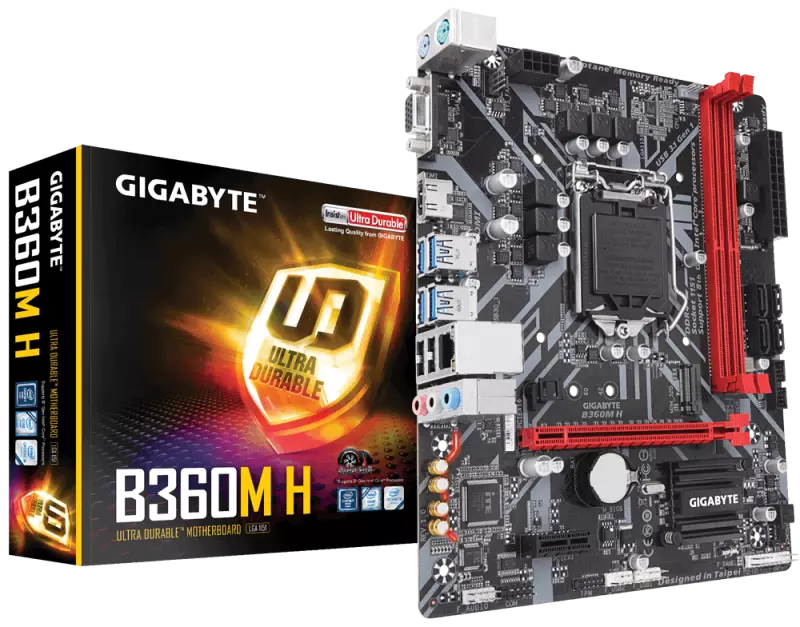

GIGABYTE B360M H Ultra Durable 9th gen Gaming Motherboard

GIGABYTE B360M H Ultra Durable 9th gen Gaming Motherboard

0 Reviews
Stock : Discontinued
PID : P0002506904
Brand : Gigabyte
Model : GIGABYTE B360M H
Warranty : 3 Years
  • Supports 9th and 8th Gen Intel Processors
  • Intel B360 Express Chipset
  • 2 x DDR4 DIMM sockets Memory
  • PCIe Gen3 X4 & SATA interface

SPECIFICATIONS

Processor

Supported CPU Support for 9th and 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU

Mainboard

Chipset Intel® B360 Express Chipset
BIOS 1 x 128 Mbit flash|
Use of licensed AMI UEFI BIOS|
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Type: 2 x DDR4 DIMM
Slots: Dual channel memory architecture
Supported Memory: Support for DDR4 2666/2400/2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Maximum Memory: 32 GB

Graphics

Graphics 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz|
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

Networking & Connectivity

LAN Realtek® GbE LAN chip (10/100/1000 Mbit)

Audio & Microphone

Audio Realtek® ALC887 codec|
High Definition Audio|
2/4/5.1/7.1-channel

Ports

Slots 1 x PCI Express x16 slot, running at x16|
1 x PCI Express x1 slot
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
4 x SATA 6Gb/s connectors
1 x M.2 Socket 3 connector
1 x front panel header
1 x front panel audio header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
USB 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)|
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Physical Specification

Form Factor Micro ATX Form Factor; 22.6cm x 18.5cm

Warranty Information

Warranty 3 years warranty

DESCRIPTION

GIGABYTE B360M H Ultra Durable

●︎ Supports 9th and 8th Gen Intel® Core™ Processors

●︎ Dual Channel Non-ECC Unbuffered DDR4

●︎ New Hybrid Digital PWM Design

●︎ High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting

●︎ Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface

●︎ GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management

●︎ CEC 2019 Ready, Save the Power as Easy as One Click

●︎ Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

●︎ Anti-Sulfur Resistors Design

●︎ Ultra Durable™ 15KV Surge LAN Protection

●︎ Intel® Optane™ Memory Ready

**3 years warranty.


High Speed Gigabit LAN with Automatic Bandwidth Allocation


Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

Smart Fan 5


■ 4 Temperature Sensors

■ 2 Fan Pin Headers

■ All Fan Pin Headers Upgraded to Hybrid Fan Headers

■ Interoperable Fans and Sensors

■ Intuitive UI for Fan Control

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Hybrid Fan Pin Headers


Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC.

All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the GIGABYTE B360M H Ultra Durable 9th gen Gaming Motherboard Price in Bangladesh 2026 ?

The Gigabyte GIGABYTE B360M H Price in BD is 14,600৳ . This GIGABYTE B360M H Ultra Durable 9th gen Gaming Motherboard Manufacturing by Gigabyte Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte GIGABYTE B360M H by 14,600৳ and its regular price is 16,500৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
