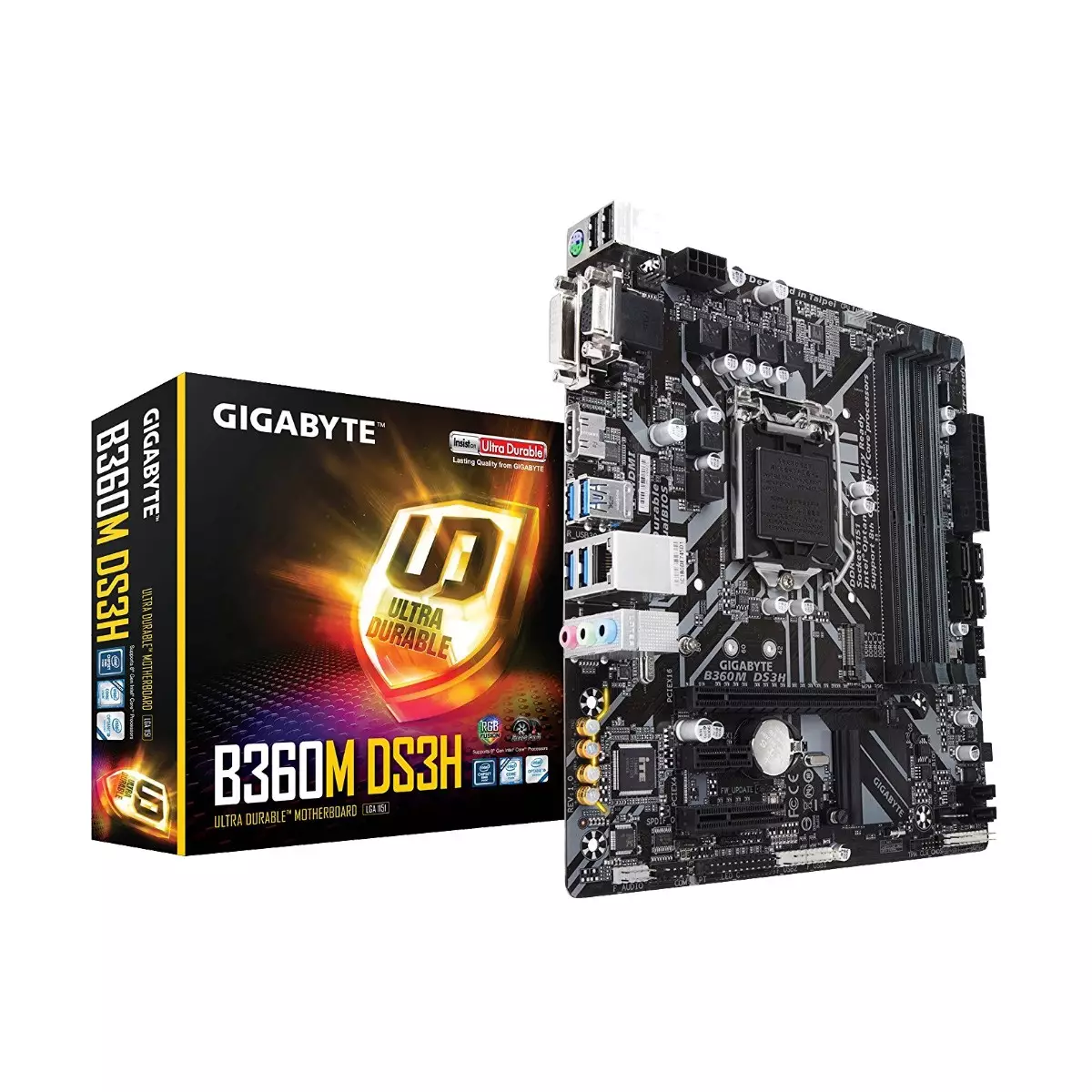

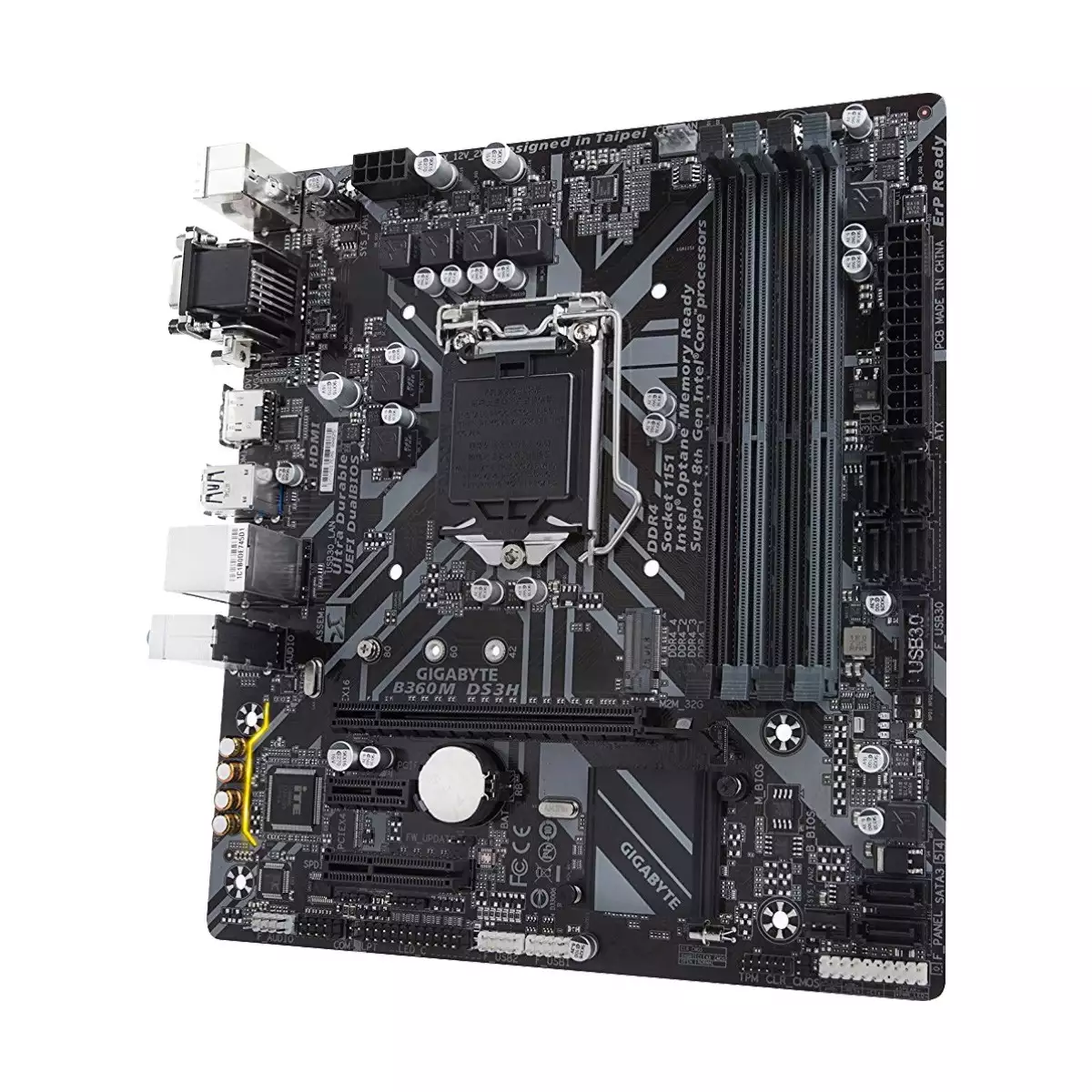

Gigabyte B360M DS3H DDR4 8th Gen Intel Motherboard

Gigabyte B360M DS3H DDR4 8th Gen Intel Motherboard

Name: Gigabyte B360M DS3H DDR4 8th Gen Intel Motherboard
Brand: Gigabyte
SKU: P00025061113
Price: 22500 BDT
Availability: OutOfStock

0 Reviews

Stock : Discontinued

PID : P00025061113

Brand : Gigabyte

Model : B360M DS3H

Warranty : 3 Years

Chipset: Intel® B360 Express Chipset
Supported CPU: Support for 9th and 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/...
LAN: Realtek® GbE LAN chip (10/100/1000 Mbit)
Slots: 1 x PCI Express x16 slot, running at x16 1 x PCI Express x4 slot 1 x PCI Express x1 slot

PRODUCT SPECIFICATIONS

Processor

Supported CPU Support for 9th and 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU

Mainboard

Chipset Intel® B360 Express Chipset

BIOS 2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
6 x SATA 6Gb/s connectors

Graphics

Graphics Integrated Graphics Processor-Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

Networking & Connectivity

LAN Realtek® GbE LAN chip (10/100/1000 Mbit)

Audio & Microphone

Audio Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

Ports

Slots 1 x PCI Express x16 slot, running at x16
1 x PCI Express x4 slot
1 x PCI Express x1 slot

Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
1 x M.2 Socket 3 connector
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumpe

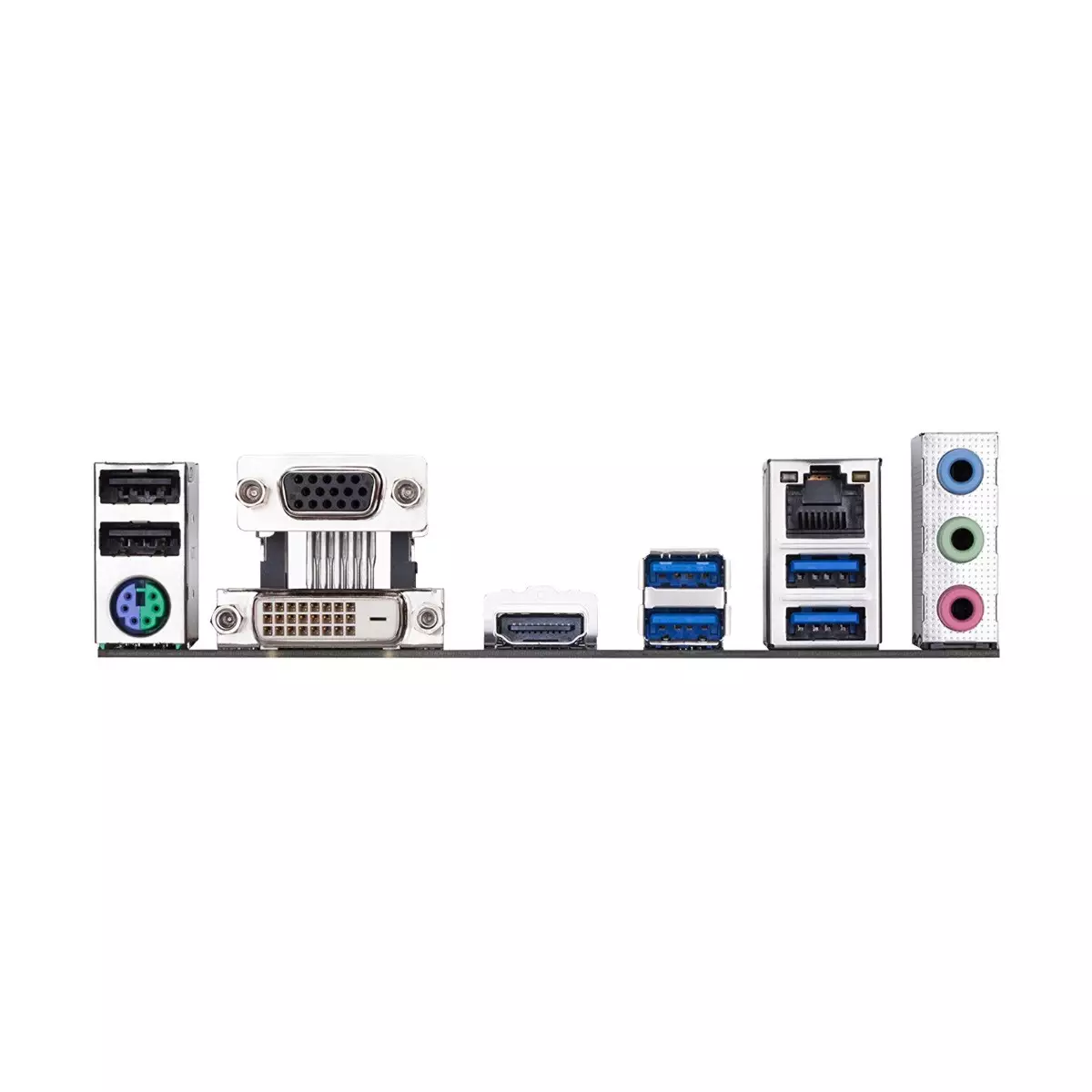

USB 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Physical Specification

Form Factor Micro ATX Form Factor; 22.6cm x 20.5cm

Warranty Information

Warranty 3 years

PRODUCT DESCRIPTION

Gigabyte B360M DS3H DDR4 8th Gen Motherboard

Specification :

●︎ Supports 9th and 8th Gen Intel® Core™ Processors

●︎ Dual Channel Non-ECC Unbuffered DDR4

●︎ New Hybrid Digital PWM Design

●︎ High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting

●︎ Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface

●︎ RGB FUSION supports RGB LED strips in 7 colors

●︎ GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management

●︎ CEC 2019 Ready, Save the Power as Easy as One Click

●︎ Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

●︎ Anti-Sulfur Resistors Design

●︎ Ultra Durable™ 15KV Surge LAN Protection

●︎ Intel® Optane™ Memory Ready

●︎ GIGABYTE UEFI DualBIOS™

**3 Years Warranty

Gigabyte Intel B360 Ultra Durable Motherboard

The Intel B360M DS3H Ultra Durable motherboard from Gigabyte is built on the B360M Express chipset, supporting Intel processors with an LGA1151 socket. It has four memory slots that can hold up to 64GB of DDR4 RAM running at up to 2666 MHz when overclocked. For storage, it's equipped with six SATA III ports and a single M.2 slot, which utilizes the PCIe 3.0 x4 interface for speeds of up to 32 Gb/s when used with an appropriate drive. While it's equipped with DVI-D and HDMI outputs for integrated graphics, this motherboard also has one PCIe 3.0 x16 slot for a graphics card as well as a PCIe 2.0 x16 and two PCIe 2.0 x1 slots for other PCIe-based hardware. Other notable integrated features include Realtek ALC887 7.1-channel HD audio, Realtek 8111H Gigabit LAN, and MSI Mystic Light RGB lighting.

CUSTOMER REVIEWS

No reviews yet

Be the first to share your thoughts about this product.

What is the Gigabyte B360M DS3H DDR4 8th Gen Intel Motherboard Price in Bangladesh 2026 ?

The Gigabyte B360M DS3H Price in BD is 22,500৳ . This Gigabyte B360M DS3H DDR4 8th Gen Intel Motherboard Manufacturing by Gigabyte Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte B360M DS3H by 22,500৳ and its regular price is 25,800৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
