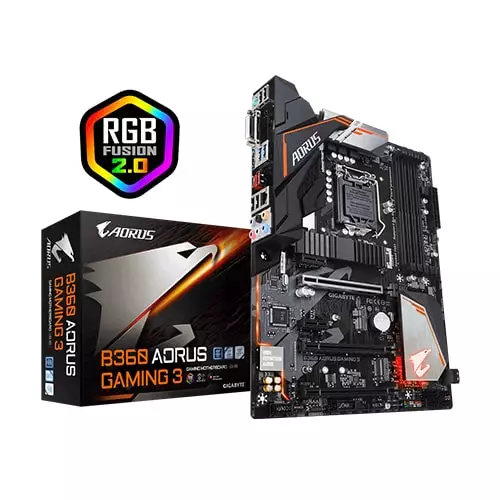

GIGABYTE B360 AORUS GAMING 3 LGA1151 RGB DUAL CHANNEL INTEL MOTHERBOARD
GIGABYTE B360 AORUS GAMING 3 LGA1151 RGB DUAL CHANNEL INTEL MOTHERBOARD

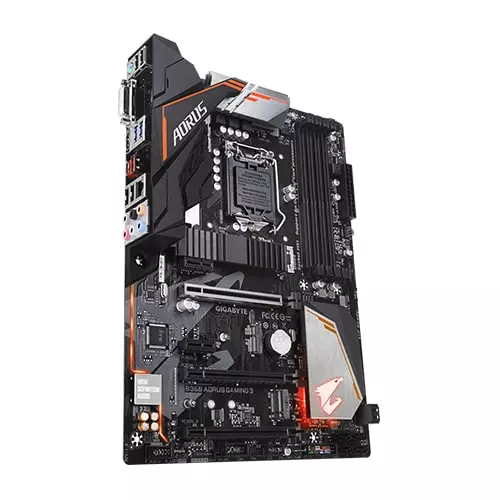

GIGABYTE B360 AORUS GAMING 3 LGA1151 RGB DUAL CHANNEL INTEL MOTHERBOARD - 1
GIGABYTE B360 AORUS GAMING 3 LGA1151 RGB DUAL CHANNEL INTEL MOTHERBOARD - 2

GIGABYTE B360 AORUS GAMING 3 LGA1151 RGB DUAL CHANNEL INTEL MOTHERBOARD

0 Reviews
Stock : Discontinued
PID : P00025061167
Brand : Gigabyte
Model : B360 AORUS GAMING 3
Warranty : 3 Years
  • Chipset: Intel B360 Express Chipset
  • Supported CPU: Support for 9th and 8th Generation Intel®
  • LAN: Intel GbE LAN chip (10/100/1000 Mbit)
  • Slots: 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x

SPECIFICATIONS

Processor

Supported CPU Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU

Mainboard

Chipset Intel B360 Express Chipset
BIOS 2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_32G)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P_16G)
6 x SATA 6Gb/s connectors

Graphics

Graphics 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

Networking & Connectivity

LAN Intel GbE LAN chip (10/100/1000 Mbit)

Audio & Microphone

Audio Realtek ALC892 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

Ports

Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x16 slot, running at x1 (PCIEX1_3)
2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2)
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers
1 x system fan/water cooling pump header
2 x digital LED strip headers
2 x digital LED strip power select jumpers
2 x RGB (RGBW) LED strip headers
6 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
1 x S/PDIF Out header
1 x Thunderbolt™ add-in card connector
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper

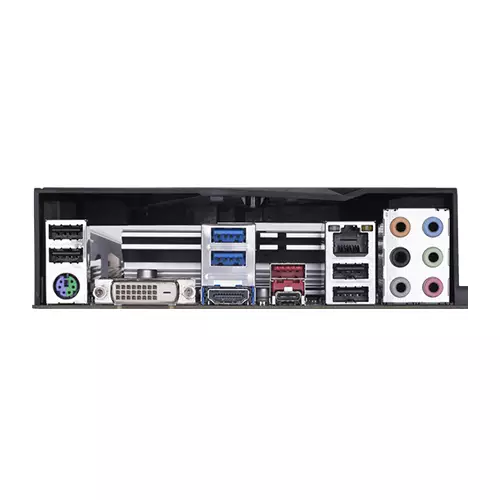

External I/O Ports 1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x HDMI port
1 x USB 3.1 Gen 2 Type-A port (red)
1 x USB Type-C™ port, with USB 3.1 Gen 1 support
2 x USB 3.1 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks
USB 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support
4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB headers)

Physical Specification

Form Factor ATX Form Factor; 30.5cm x 22.5cm

Warranty Information

Warranty 03 Years

DESCRIPTION

GIGABYTE B360 AORUS GAMING 3 LGA1151 RGB MOTHERBOARD

Specifications :

●︎ Supports 9th and 8th Gen Intel® Core™ Processors

●︎ Dual Channel Non-ECC Unbuffered DDR4

●︎ New Hybrid Digital PWM Design

●︎ Intel® CNVi 802.11ac Wave2 2T2R WIFI Upgradable

●︎ High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting

●︎ Dual Ultra-Fast M.2 with PCIe Gen3 X4/X2 (1 with Thermal Guard) & SATA interface

●︎ RGB FUSION 2.0 with Multi-Zone Digital LED Light Show design

●︎ Intel® Native USB 3.1 Gen2 USB Type-A

●︎ Intel® USB 3.1 Gen1 USB Type-C™

●︎ Intel® GbE LAN with cFosSpeed Internet Accelerator Software

●︎ CEC 2019 Ready, Save the Power as Easy as One Click

●︎ Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

●︎ Intel® Optane™ Memory Ready
**03 Year Warranty



GIGABYTE LGA1151 RGB DUAL CHANNEL INTEL MOTHERBOARD

The B360 Gaming 3 LGA1151 ATX Motherboard from Gigabyte is built on the Intel B360 chipset and has a LGA 1151 socket designed for 9th and 8th generation Intel Core, Pentium Gold, and Celeron processors. It's equipped with four DDR4 memory slots that support up to 64GB of 2666 MHz RAM. For storage, it has five SATA III ports and a single M.2 slot, which also supports Intel Optane Memory. As a gaming-focused board, the B360 Gaming Plus has two PCIe 3.0 x 16 slots, ideal for graphics cards, and four PCIe 3.0 x 1 slots for other PCIe-based hardware. Other integrated features include Intel Gigabit LAN, DVI-D and DisplayPort outputs, and Realtek ALC892 7.1-channel high-definition audio. Moreover, this motherboard is equipped with RGB lighting that you can customize using MSI's downloadable software.
