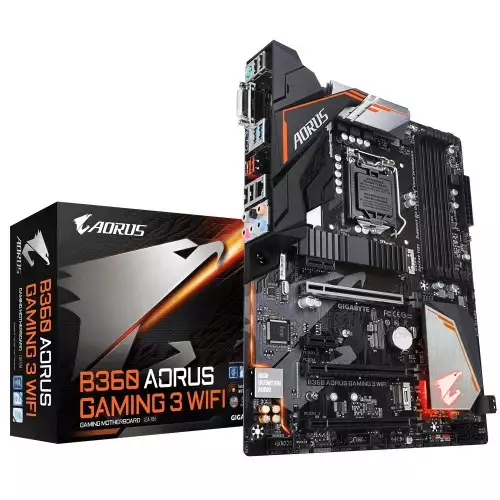

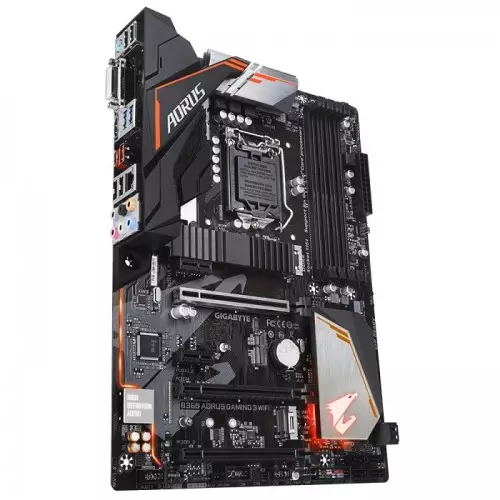

Gigabyte B360 Aorus Gaming 3 WiFi DDR4 8th Gen Motherboard
Gigabyte B360 Aorus Gaming 3 WiFi DDR4 8th Gen Motherboard
Gigabyte B360 Aorus Gaming 3 WiFi DDR4 8th Gen Motherboard - 1
Gigabyte B360 Aorus Gaming 3 WiFi DDR4 8th Gen Motherboard - 2

Gigabyte B360 Aorus Gaming 3 WiFi DDR4 8th Gen Motherboard

1 Reviews
Stock : Discontinued
PID : P0002506855
Brand : Gigabyte
Model : Gigabyte B360 Aorus
Warranty : 3 Years
  • Chipset: Intel® B360 Express Chipset
  • Supported CPU: Support for DDR4 2666/2400/2133 MHz
  • LAN: Intel® GbE LAN chip (10/100/1000 Mbit)
  • Slots: Dual-channel memory architecture

SPECIFICATIONS

Processor

Supported CPU Support for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Mainboard

Chipset Intel® B360 Express Chipset
BIOS 2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for Dual BIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory 64 GB

Storage

Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_32G)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P_16G)
6 x SATA 6Gb/s connectors

Graphics

Graphics Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

Networking & Connectivity

LAN Intel® GbE LAN chip (10/100/1000 Mbit)

Audio & Microphone

Audio Realtek® ALC892 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

Ports

Slots Dual channel memory architecture
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers
1 x system fan/water cooling pump header
2 x digital LED strip headers
2 x digital LED strip power select jumpers
2 x RGB (RGBW) LED strip headers
6 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
1 x S/PDIF Out header
1 x Thunderbolt™ add-in card connector
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
USB * Support for HDMI 1.4 version and HDCP 2.2.

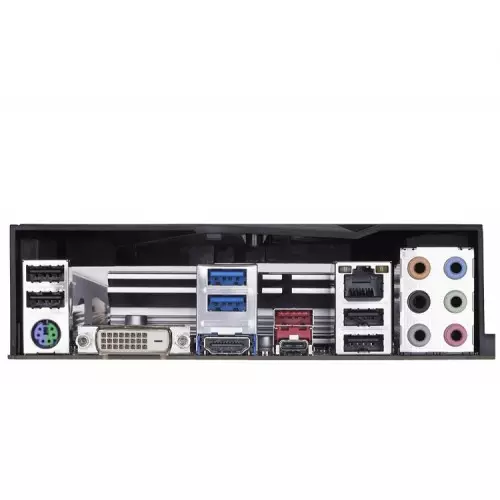

USB (s) 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support
4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB headers)
HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

Physical Specification

Form Factor ATX Form Factor; 30.5cm x 22.5cm

Warranty Information

Warranty 3 years warrany.

DESCRIPTION

Gigabyte B360 Aorus Gaming 3

●︎ Supports 9th and 8th Gen Intel® Core™ Processors

●︎ Dual Channel Non-ECC Unbuffered DDR4

●︎ New Hybrid Digital PWM Design

●︎ Intel® CNVi 802.11ac Wave2 2T2R WIFI

●︎ High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting

●︎ Dual Ultra-Fast M.2 with PCIe Gen3 X4/X2 (1 with Thermal Guard) & SATA interface

●︎ RGB FUSION 2.0 with Multi-Zone Digital LED Light Show design

●︎ Intel® Native USB 3.1 Gen2 USB Type-A

●︎ Intel® USB 3.1 Gen1 USB Type-C™

●︎ Intel® GbE LAN with cFosSpeed Internet Accelerator Software

●︎ CEC 2019 Ready, Save the Power as Easy as One Click

●︎ Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

●︎ Intel® Optane™ Memory Ready

**3 years warranty.

Gigabyte B360 Aorus Gaming 3 WiFi 8th Gen Motherboard

We often only focus on the expensive boards whereas a board like Gigabyte B360 Aorus Gaming 3 with WiFi is providing every basic gaming features within the budget. This high-end budget friendly board is perfectly suitable for any non-K SKU Intel Coffee Lake CPU setup. click here for more mother board...

Core Ingredients of the Motherboard

Gigabyte B360 Aorus Gaming 3 ATX motherboard compatible with Intel 8th gen core i3, i5 & i7 processor supported Dual Channel DDR4 maximum 64GB memory motherboard has the capability of Ultra-Fast M.2 with PCIe Gen3 X4/X2 & SATA interface. Considering the graphics, it will support integrated Intel HD Graphics having 1GB shared graphics memory with max resolution of 1920x1200@60 Hz DVI-D port & 4096x2160@30 Hz of HDMI ports. This latest motherboard has the facility of USB 3.1 Gen2 USB Type-A, USB 3.1 Gen1 USB Type-C and Intel Optane Memory Ready. click here for more mother board...

Special Features for Excellence

On the special note this new hybrid digital PWM design mainboard has RGB FUSION 2.0 with multi-zone digital LED light show and Smart Fan 5 features with multiple temperature sensors and hybrid fan headers with FAN STOP option. Considering the audio features, it has high quality capacitors and audio noise guard with LED trace path lighting. It has installed Intel® CNVi 802.11ac Wave2 2T2R for WIFI and GbE LAN with cFosSpeed internet accelerator software for Ethernet connectivity. click here for more mother board...
