D-Link DGS-1210-28 Network Switch Specification
|
- 1000Base-T PoE Interface: 8
- 1000M SFP Interface:2
- Auto MDI/MDIX: Yes
- 10/100/1000BASE-T PoE ports: 8
- SFP ports: 2
- Switch Capacity: 20 Gbps
- Max. Packet Forwarding Rate: 14.88 Mpps
- Store & Forwarding Forwading: Yes
- Weight: 0.95 kg
- Dimension: 280mm x 126 mm x 44mm
- Operation Temperature: -5 - 50°C
- Storage Temperature: -20-70°C
- Operation Humidity: 0% - 95% RH
- Storage Humidity: 0% ~ 95% RH
- Operating Altitude: 1500 meters
- Maximum Power Consumption: PoE on <br>81.9 W/100 V<br> 80.6 W/240 V PoE off <br>7.6 W/100 V <br>7.5 W/240 V
- Standby Power Consumption: 2.5 W/100V / 2.5 W/240V
- Maximum Heat Dissipation: 279.59 BTU/hr (100 V) <br>275.04 BTU/hr (240 V)
- Acoustic: 0 dB
- MTBF: 729,258 hours
- Power Input: 100-240 VAC
- CPU Speed: 500MHz
- DRAM Size: DDR3 128MB
- Flash Memory Size: 32MB
- Packet Buffer Size: 4.1MBits
- FAN: Fanless
|
1 Year Warranty |

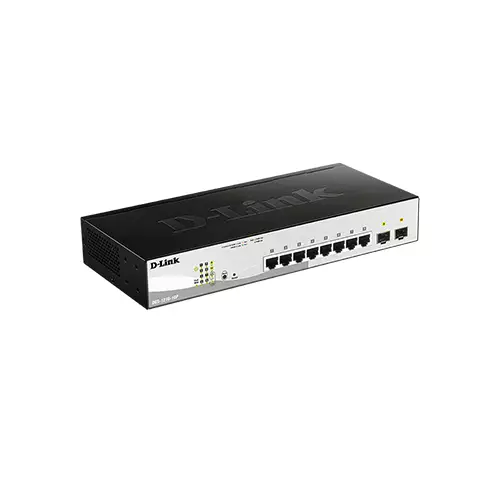

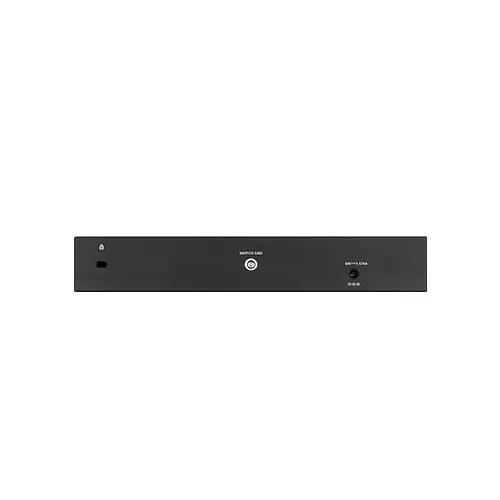

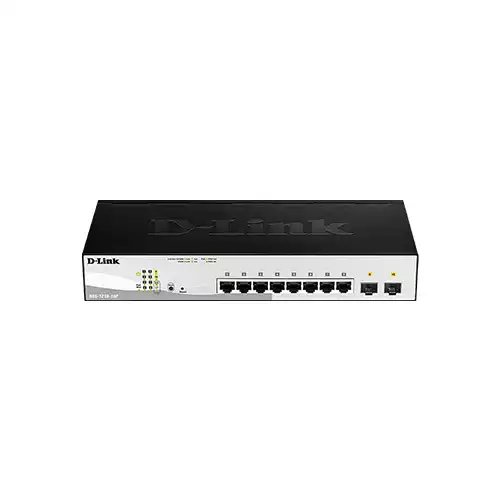

D-Link DGS-1210-10P Network Switch in Bangladesh
The D-Link DGS-1210 -10P Smart Managed Switches are the latest generation of switches to provide increased Power over Ethernet (PoE) output, a range of physical interface types, multiple management interfaces, and advanced Layer 2 features. With all of these features combined, the DGS-1210 Series provides a cost-efficient and flexible solution for expanding any business network.
The DGS-1210 -10P switches support 8, 10/100/1000BASE-T ports. Each switch also supports an additional 2 or 4 Gigabit SFP ports for optical connections using multimode or single-mode SFP transceivers.
PoE Support
Five of the nine models in the DGS-1210 -10P family support Power-over-Ethernet capabilities, simplifying deployments with IP cameras, VoIP phones, wireless access points, and other powered devices. These models include the DGS-1210-10P Using the switch’s management interface, an administrator can control various PoE functions, such as remotely rebooting cameras or access points, from anywhere on the network, including over the Internet.
They also support time-based PoE, which allows administrators to set a time window that determines when each port’s PoE power is turned on and off. All PoE models support the IEEE 802.3af and 802.3at standards, and each PoE power budget varies per model.
Automatic Configuration
The DGS-1210 -10P supports Auto Voice VLAN and Surveillance Mode, which allow voice and video traffic to be automatically identified and handled differently to regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied.
Surveillance Mode detects compatible ONVIF cameras and places them in a surveillance VLAN, allowing a single switch to be used for voice, video, and data, removing the need for dedicated hardware and reducing maintenance costs. Surveillance Mode also includes its own Web UI, making surveillance features easily accessible and simplifying the management of your surveillance network.
