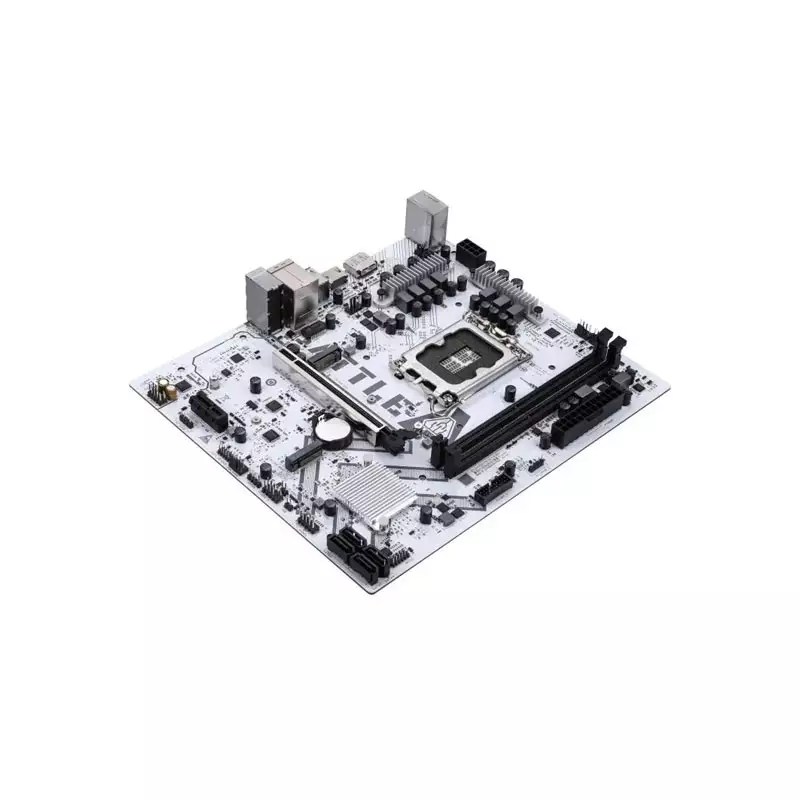

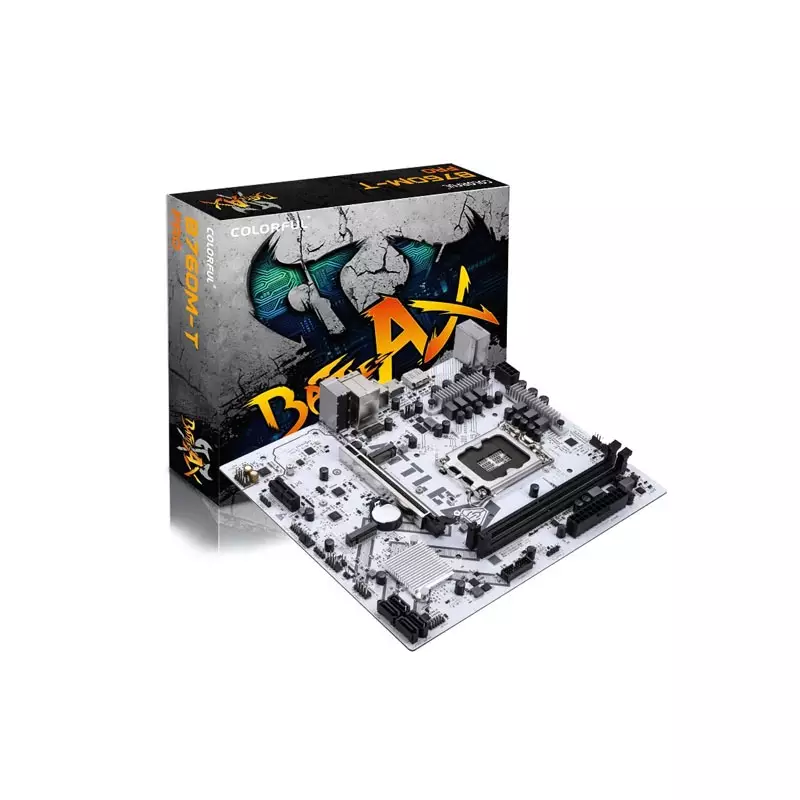

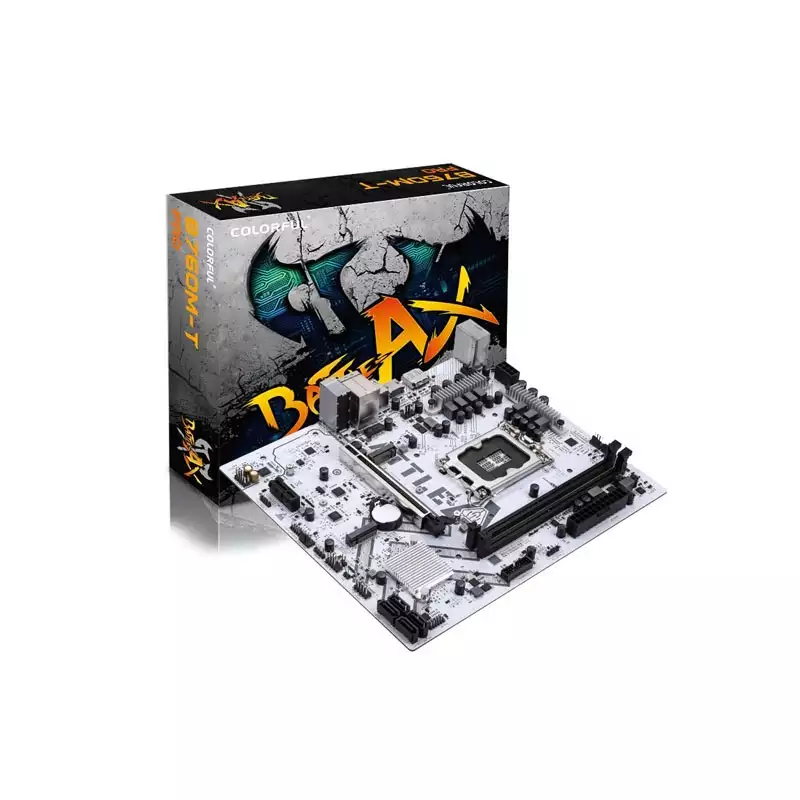

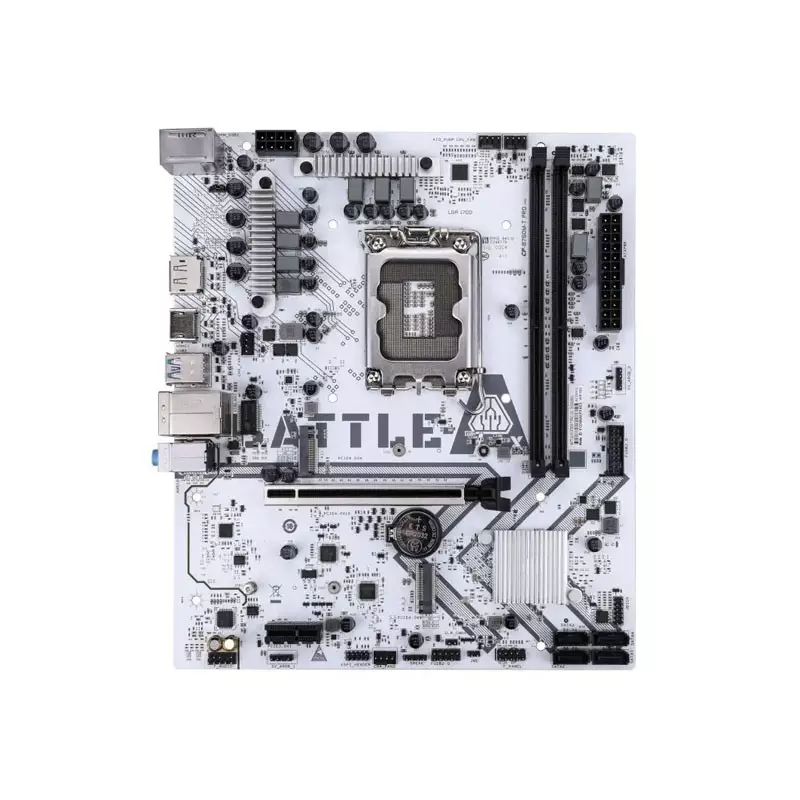

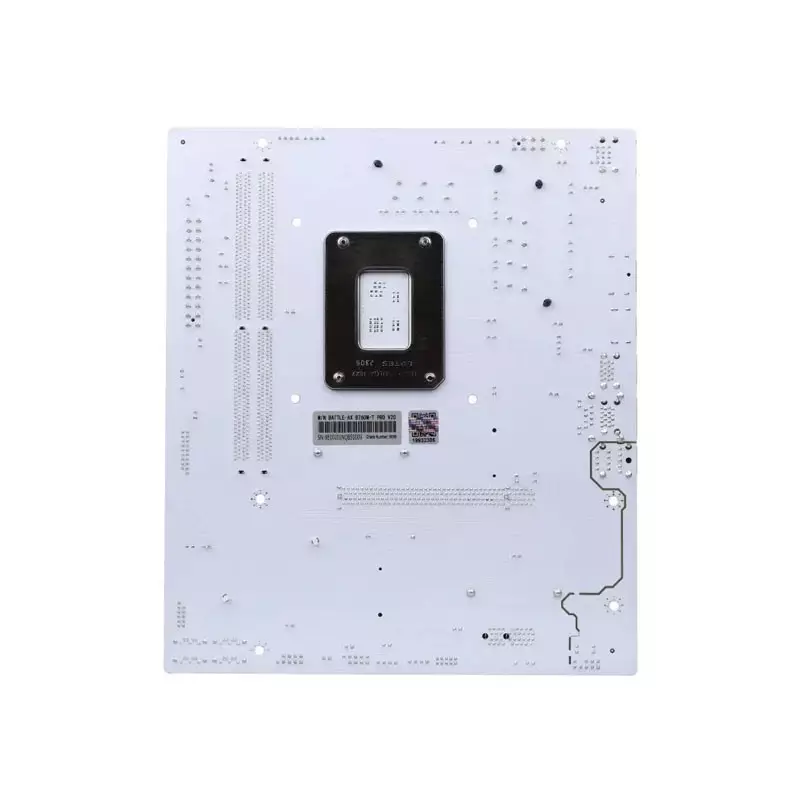

COLORFUL BATTLE-AX B760M-T PRO V20 13TH AND 14TH GEN MOTHERBOARD
COLORFUL BATTLE-AX B760M-T PRO V20 13TH AND 14TH GEN MOTHERBOARD
COLORFUL BATTLE-AX B760M-T PRO V20 13TH AND 14TH GEN MOTHERBOARD - 1

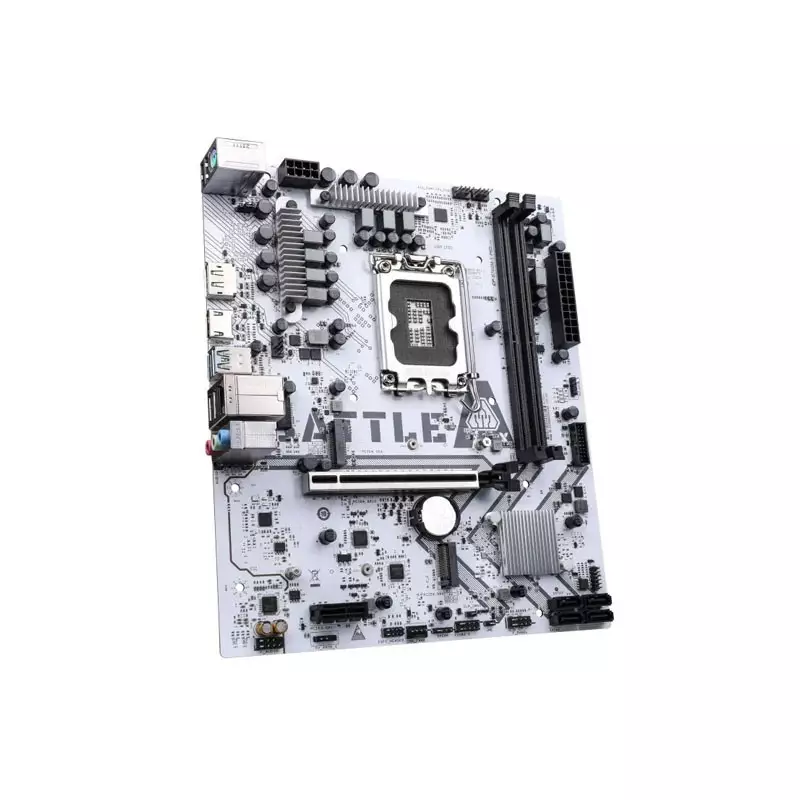

COLORFUL BATTLE-AX B760M-T PRO V20 13TH AND 14TH GEN MOTHERBOARD - 2

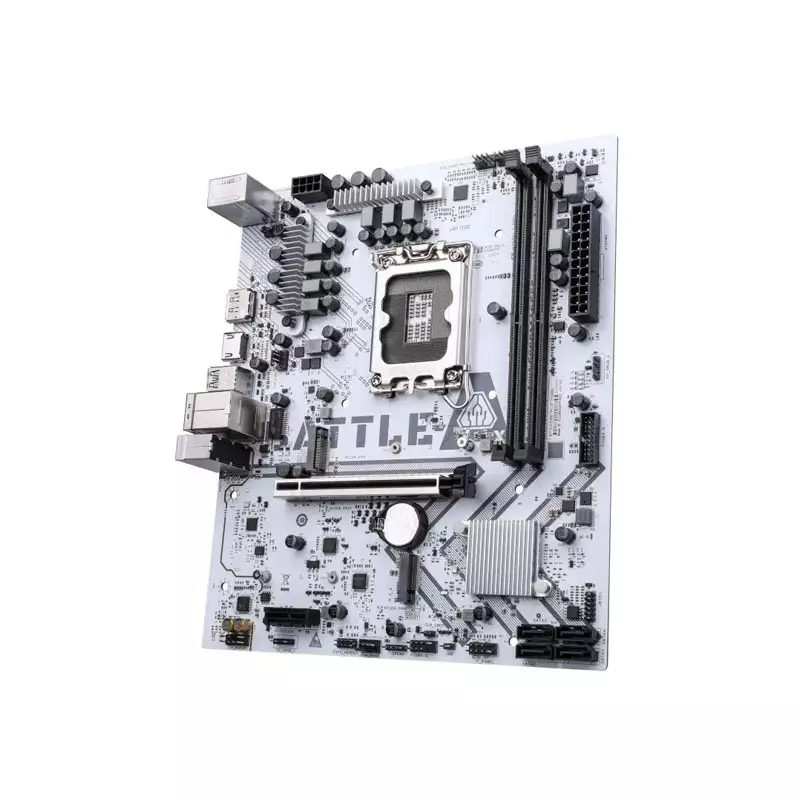

COLORFUL BATTLE-AX B760M-T PRO V20 13TH AND 14TH GEN MOTHERBOARD - 3
COLORFUL BATTLE-AX B760M-T PRO V20 13TH AND 14TH GEN MOTHERBOARD - 4
COLORFUL BATTLE-AX B760M-T PRO V20 13TH AND 14TH GEN MOTHERBOARD - 5
COLORFUL BATTLE-AX B760M-T PRO V20 13TH AND 14TH GEN MOTHERBOARD - 6

COLORFUL BATTLE-AX B760M-T PRO V20 13TH AND 14TH GEN MOTHERBOARD

0 Reviews
Stock : Discontinued
PID : P1512506114
Brand : Colorful
Model : BATTLE-AX B760M-T PRO V20
Warranty : 3 Years
  • Chipset Intel B760M
  • Support 13th, 14th and 12th gen
  • DDR4 memory sockets
  • 128M UEFI BIOS

SPECIFICATIONS

Processor

Supported CPU Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard Core TM,
Pentium And Cylon processor

Mainboard

Chipset Intel B760
BIOS 128M UEFI, supporting multiple languages

Memory

Memory 2 DDR4 memory sockets are provided, which can support up to 64 GB of memory
(a single socket can support up to 32 GB of memory)

- support DDR4-4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466
(OC)/3200/3000/2933/2800/2666/2400/2133MHz of memory

- support Intel ® Extreme Memory Profile (XMP) memory technology

- supports dual channel memory technology

Networking & Connectivity

LAN RTL8125 2.5G network card

Audio & Microphone

Audio 5.1 Channel sound card

Ports

Slots 1 PCIe 4.0 x16 slot

1 PCIe 3.0 x1 slot
Internal I/O Ports 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces,
Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices

- M2_ 1 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4, CPU channel)

- M2_ 2 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4/Optane, PCH channel)

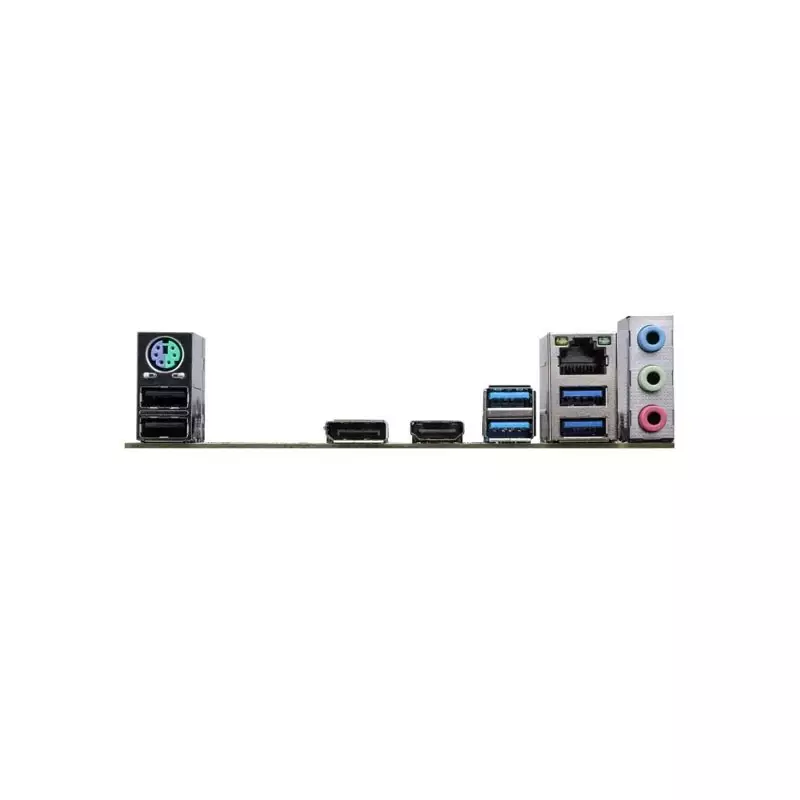

External I/O Ports Rear I/O interface:

- 1×PS/2 interface

- 2×USB 2.0 interfaces

- 4×USB 3.2 Gen 1 Type-A interfaces

- 1×DP 1.2 interface, supporting up to 4K 60Hz resolution

- 1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution

- 1×2.5G network interface

- 3×audio interfaces (audio input/audio output/microphone)

Onboard device interface:

- 1×CPU fan pin

- 2×system fan pins

- 1×water cooling pump pin

- 1×USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces

- 1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces

- 2×5V 3-pin ARGB pins

- 1×front audio pin

- 1×front panel pin

- 1×speaker pin

- 1×ME write protection jumper

- 1×clear CMOS jumper

- 1×BIOS burner pin

- 1×POST card pin

- 1×PS/2 call Wake up control jumper

Others

Other Features Power Management: Support S3, S4, network S5 wake-up, regular power on and power on

Hardware Monitor:

CPU fan speed is controllable, system fan speed is controllable

CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring

Physical Specification

Form Factor M-ATX
Dimension 240mm x 207mm

Warranty Information

Warranty 03 Years Warranty

DESCRIPTION

COLORFUL BATTLE-AX B760M-T PRO V20 13TH AND 14TH GEN MOTHERBOARD

Introducing the Colorful Battle-Ax B760M-T PRO V20 13th and 14th Gen Motherboard, a powerhouse for your computing needs. Based on the Intel B760 chipset, this motherboard supports 14th-, 13th-, and 12th-generation Intel processors in LGA 1700. It's equipped with two DDR4 memory sockets supporting up to 64GB of memory, with impressive memory speed support up to DDR4-4800 (OC). Offering versatility, it features 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, allowing the creation of RAID disk arrays. The rear I/O includes various interfaces such as USB 3.2 Gen 1, DP 1.2, HDMI 2.0, 2.5G network, and audio ports. This motherboard also has an array of onboard device interfaces, including CPU and system fan pins, USB pins, ARGB pins, and more. Measuring 240mm x 207mm, it's a Micro-ATX configuration. This motherboard is backed by a 3-year warranty, ensuring durability and performance for your PC build. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful, knowledgeable crew that is always willing to assist customers. The large selection of Colorful motherboards available at Techland BD is well recognized. The large selection available is well recognized.

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the COLORFUL BATTLE-AX B760M-T PRO V20 13TH AND 14TH GEN MOTHERBOARD Price in Bangladesh 2026 ?

The Colorful BATTLE-AX B760M-T PRO V20 Price in BD is 11,300৳ . This COLORFUL BATTLE-AX B760M-T PRO V20 13TH AND 14TH GEN MOTHERBOARD Manufacturing by Colorful Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Colorful BATTLE-AX B760M-T PRO V20 by 11,300৳ and its regular price is 11,800৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
