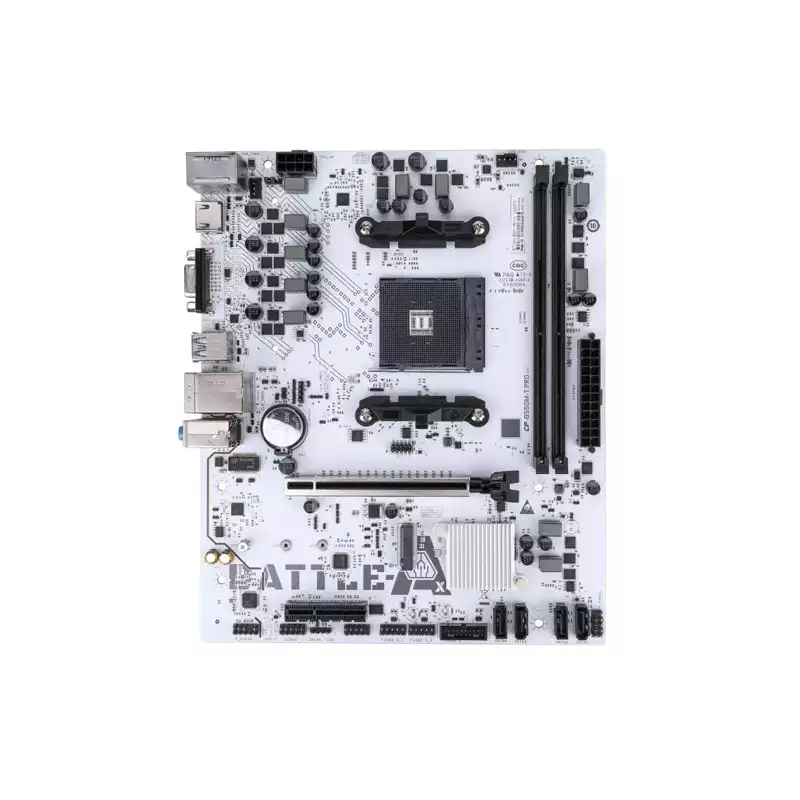

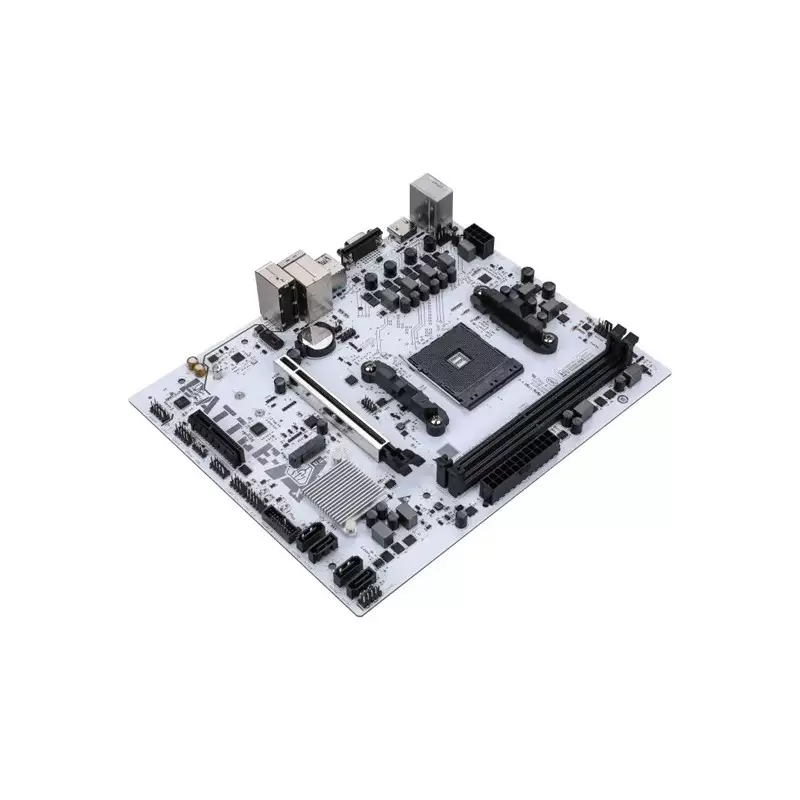

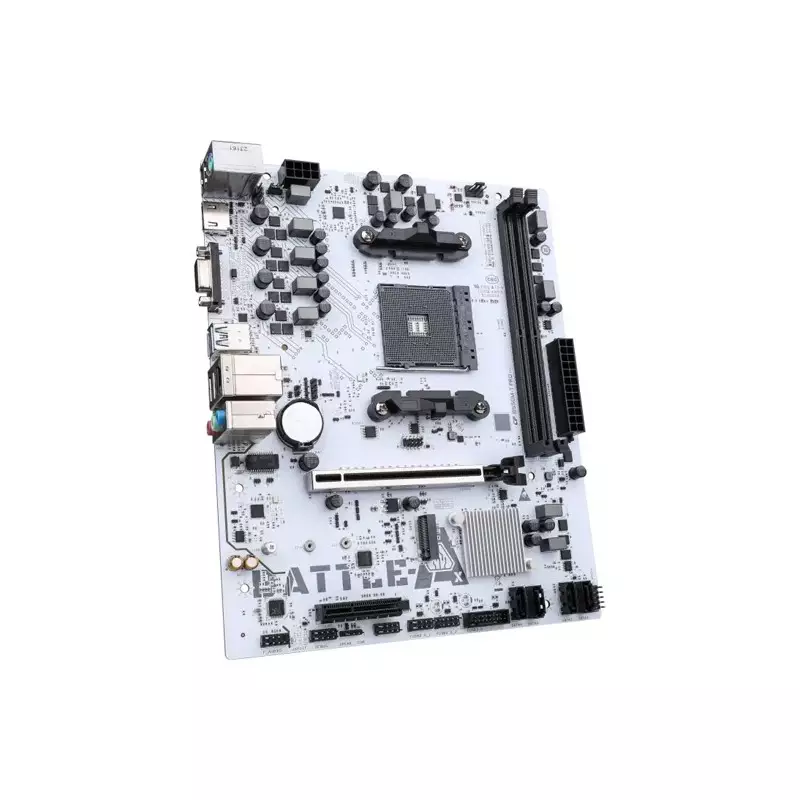

COLORFUL BATTLE-AX B550M-T PRO V14 MICRO ATX AMD MOTHERBOARD (WHITE)
- Chipset AMD B550
- Form Factor M-ATX
- Support AMD Ryzen processors
- LAN RTL8125 2.5Gbit LAN
SPECIFICATIONS
Processor
Mainboard
Memory
Supports up to 64GB of memory
Support DDR4-3600(OC)/3200/2933/2666/2400MHz
Support Extreme Memory Profile (XMP)
Supports dual-channel memory technology
Networking & Connectivity
Audio & Microphone

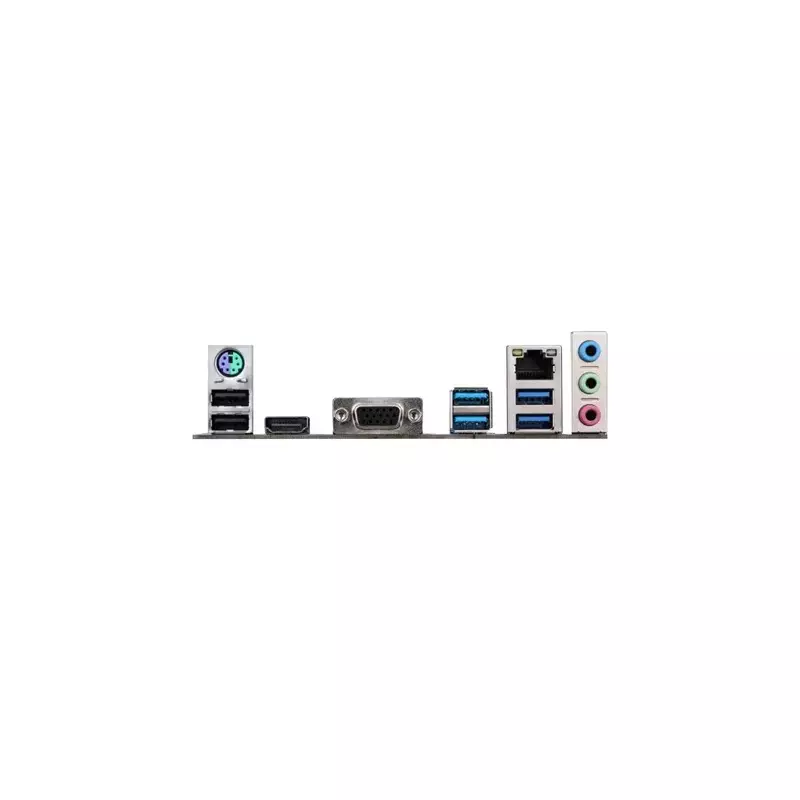

Ports
4×USB 3.2 Gen 1 Type-A interfaces
1×HDMI 1.4 interface (Up to 4K 30Hz)
1×VGA interface
1×PS/2 interface
1×2.5G network interface
3×audio interfaces (audio
1×CPU fan pin
1×system fan pin
2×USB 2.0 pins (expandable to 4 USB 2.0 Type-A interfaces)
1×USB 3.2 Gen 1 pin (expandable to 2 USB 3.2 Gen 1 Type-A interfaces)
1×12V 4-pin RGB pin
1×Front audio pin
1×front panel pin
1×speaker pin
1×Clear CMOS jumper
1×COM port pin
1×BIOS burner pin
1×Debug light pin
1×USB live control jumper
Support USB wake-up
Support timing boot
Call boot
CPU fan speed control
System fan speed control
CPU temperature monitoring
System temperature monitoring
Voltage monitoring (each group)
Physical Specification
Warranty Information
DESCRIPTION
Colorful BATTLE-AX B550M-T PRO V14 Motherboard in Bangladesh
Introducing the Colorful BATTLE-AX B550M-T PRO V14 White Micro ATX Motherboard, a powerhouse of features designed to elevate your computing experience. Equipped with a 128M UEFI BIOS that supports multiple languages, it offers customization and ease of use. Powered by the advanced AMD B550 chipset, this compact M-ATX motherboard measures 197mm x 240mm, making it a perfect fit for smaller PC builds. The 5.1-Channel High Definition audio CODEC ensures crystal-clear sound for gaming and multimedia. You'll find versatile expansion slots, including a PCIe 4.0 x16 slot for graphics cards and a PCIe 3.0 x4 slot for other add-in cards. The inclusion of RTL8125 2.5Gbit LAN guarantees lightning-fast network connectivity. With 2 DDR4 memory sockets supporting up to 64GB of memory, DDR4-3600(OC)/3200/2933/2666/2400MHz support, and Extreme Memory Profile (XMP), this motherboard delivers top-notch memory performance. It also offers convenient hardware monitoring and power management features. This motherboard is built to support AMD Ryzen series processors, ensuring high-performance computing. Additionally, it features 1 M.2 slot for NVMe SSDs and 4 SATA 6Gb/s hard disk interfaces with RAID support. With a 3-year warranty, the Colorful BATTLE-AX B550M-T PRO V14 White Micro ATX Motherboard is a reliable and feature-rich choice, ideal for gamers and PC enthusiasts seeking top-tier performance in a compact form factor.
