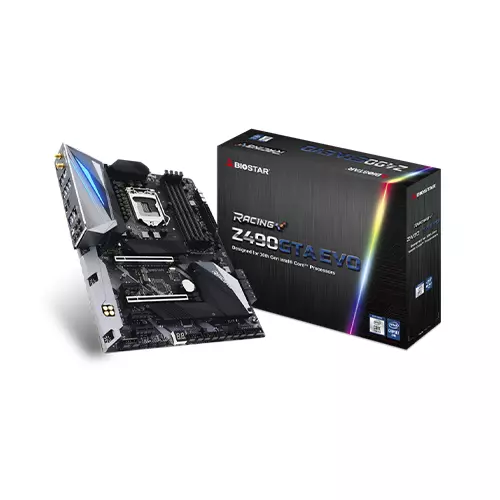

Biostar Racing Z490GTA EVO 11th Gen ATX Motherboard
Biostar Racing Z490GTA EVO 11th Gen ATX Motherboard
Biostar Racing Z490GTA EVO 11th Gen ATX Motherboard - 1
Biostar Racing Z490GTA EVO 11th Gen ATX Motherboard - 2

Biostar Racing Z490GTA EVO 11th Gen ATX Motherboard

0 Reviews
Stock : Discontinued
PID : P00025062822
Brand : Biostar
Model : Racing Z490GTA EVO
Warranty : 3 Years
  • Supports 10th/ 11th Gen Intel Processor
  • Intel Z490 single chip architecture
  • Supports PCIe M.2 (32Gb/s)
  • Supports Intel Optane Technology

SPECIFICATIONS

Processor

Supported CPU Support for 10th/11th Generation Intel® Core™ i9
processors/Intel® Core™ i7 processors/Intel® Core™ i5
processors/Intel® Core™ i3 processors/Intel® Pentium®
processors/Intel® Celeron® processors in the LGA1200 package

Mainboard

Chipset Intel Z490

Memory

Memory Supports Dual Channel DDR4 2133/ 2400/ 2666/ 2800/ 2933
Supports Dual Channel DDR4 3200(OC)/ 3600(OC)/ 3800(OC)/ 4000(OC)/ 4400+(OC)
4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory
Each DIMM supports non-ECC 4/ 8/ 16/ 32GB DDR4 module

Storage

Supported Storage Total supports 2 x M.2 slots and 6 x SATA III(6Gb/s )ports
1 x M2_32G_1 socket , with M key, type 2242/2260/2280/22110 storage devices support SATA & PCIE 3.0 x 4 mode/Intel Optane Technology
1 x M2_32G_2 socket , with M key, type 2242/2260/2280/22110 storage devices support SATA & PCIE 3.0 x 4 mode/Intel Optane Technology
6 x SATA III (6Gb/s) : Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology

Networking & Connectivity

LAN Intel i211-AT; 10/ 100/ 1000 Mb/s auto-negotiation, Half / Full duplex capability
Supports Super LAN Surge Protection

Audio & Microphone

Audio ALC1150 7.1 Channels, High Definition Audio

Ports

Slots 3 x PCIe 3.0 x1 Slots
2 x PCIe 3.0 x16 Slots(x 16 + x 4)
Internal I/O Ports 6 x SATA III Connectors (6Gb/s)
1 x M.2 (E Key) Socket : Supports 2230 type WiFi & Bluetooth module and Intel CNVi
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
2 x 8-Pin Power Connectors
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x CPU water cooling connector (CPU_OPT)
3 x System Fan Connectors
1 x Front Panel Header
1 x Front Audio Header
1 x Clear CMOS Header
1 x COM Port Header
1 x Thunderbolt 3 Header
2 x LED Header (5V)
1 x LED Header (12V)
External I/O Ports 2 x WiFi Antenna Ports
1 x PS/2 Keyboard/ Mouse
1 x HDMI Port
1 x USB 3.2 (Gen 2) Type-C Port
1 x USB 3.2 (Gen 2) Port
8 x USB 3.2 (Gen1) ports
1 x LAN port
5 x Audio Jack
1 x SPDIF_Out
USB 1 x USB 3.2 (Gen2) Type-C port (1 on rear I/O)
1 x USB 3.2 (Gen2) port (1 on rear I/O)
10 x USB 3.2 (Gen1) ports (8 on rear I/Os and 2 via internal header)
4 x USB 2.0 ports (4 via internal header)
HDMI HDMI 4K resolution

Physical Specification

Form Factor ATX Form Factor
Dimension 30.5cm x 24.4cm ( W x L )

DESCRIPTION

Biostar Racing Z490GTA EVO ATX Motherboard in Bangladesh

Powered exclusively by 10th and 11th gen Generation Intel Core, Pentium Gold, and Celeron processors, the Racing Z490GTA EVO LGA 1200 ATX Motherboard from Biostar boasts a robust power design, comprehensive cooling solutions, and intelligent tuning options. It provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. This motherboard will fit in ATX sized cases, supports the LGA 1200 socket, the Intel Z490 chipset, and is compatible with Windows 10 (64-bit).

There is also 6 x SATA III Connectors (6Gb/s) x M.2 (E Key) Socket: Supports 2230 type WiFi & Bluetooth module and Intel CNVi,2 x USB 2.0 Header (each header supports 2 USB 2.0 ports),1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports),2 x 8-Pin Power Connectors,1 x 24-Pin Power Connector,1 x CPU Fan Connector,1 x CPU water cooling connector (CPU_OPT),3 x System Fan Connectors,1 x Front Panel Header,1 x Front Audio Header, Clear CMOS Header,1 x COM Port Header,1 x Thunderbolt 3 Header,2 x LED Header (5V),1 x LED Header (12V)


For delivering sharp, clear graphics, this motherboard supports a maximum resolution of 4096 x 2304 at 60 Hz using DisplayPort 1.4 and HDMI 1.4b outputs.

[product_table id="34" limit="10" type="filter" filter_category="7270"]


REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Biostar Racing Z490GTA EVO 11th Gen ATX Motherboard Price in Bangladesh 2026 ?

The Biostar Racing Z490GTA EVO Price in BD is 15,000৳ . This Biostar Racing Z490GTA EVO 11th Gen ATX Motherboard Manufacturing by Biostar Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Biostar Racing Z490GTA EVO by 15,000৳ and its regular price is 16,500৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
