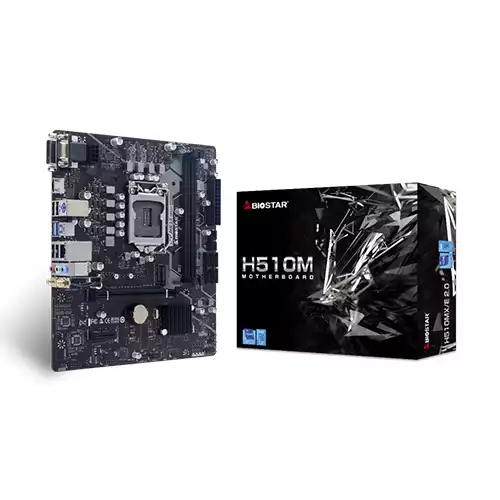

Biostar H510MX/E 2.0 11th Gen Motherboard
Biostar H510MX/E 2.0 11th Gen Motherboard

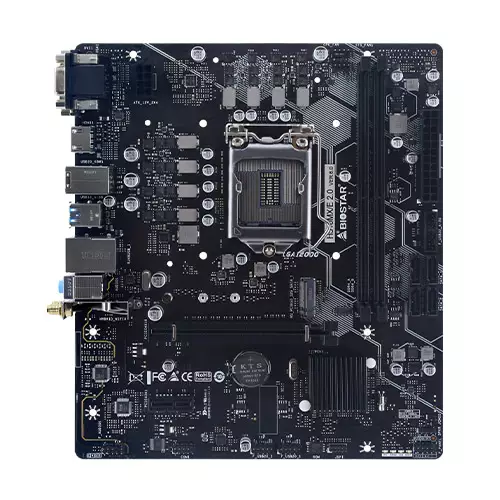

Biostar H510MX/E 2.0 11th Gen Motherboard - 1
Biostar H510MX/E 2.0 11th Gen Motherboard - 2

Biostar H510MX/E 2.0 11th Gen Motherboard

0 Reviews
Stock : Out of Stock
PID : P2482506014
Brand : Biostar
Model : H510MX/E
Warranty : 3 years
  • Supports PCIe 4.0
  • Supports PCIe M.2 3.0 (32Gb/s)
  • Supports USB 3.2 Gen1
  • Supports WiFi 6 module

Product Pricing

Discount Price

৳7,300 ৳8,500
+ Available Payment Method

EMI Start From*

৳257

SPECIFICATIONS

Processor

Supported CPU Support for 10th/ 11th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1200 package
* Please refer to www.biostar.com.tw for CPU support list.

Mainboard

Chipset Intel H510

Memory

Memory Supports Dual Channel DDR4 3200/ 2933/ 2666/ 2400/ 2133/ 1866
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 4/8/16/32GB DDR4 module

Storage

Supported Storage Total supports 1 x M.2 socket and 4 x SATA III (6Gb/s) ports
4 x SATA III Connectors (6Gb/s)
1 x M.2 (M Key) Socket:
Supports M.2 Type 2242/ 2260/ 2280 SSD module.
Supports PCIe 3.0 x4 (32Gb/s) - NVMe/ AHCI SSD & SATA III (6Gb/s) SSD
* When using SATA SSD module on M.2 slot (M2_PCIEG3_32G_SATA_1), the SATA_1 connector will be disabled.

Graphics

Graphics By CPU model
Supports DX12
Supports HDCP
Supports HDMI 1.4 version

Networking & Connectivity

LAN Intel I219V
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

Audio & Microphone

Audio ALC897
7.1 Channels, High Definition Audio

Ports

Slots 1 x PCIe 3.0 x1 Slot
1 x PCIe 3.0/ 4.0 x16 Slot (x16 mode)
* The PCIe 4.0 only depends on Rocket Lake CPUs.
Internal I/O Ports 4 x SATA III Connectors (6Gb/s)
1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
* M.2 (E key) Wi-Fi card is not provided

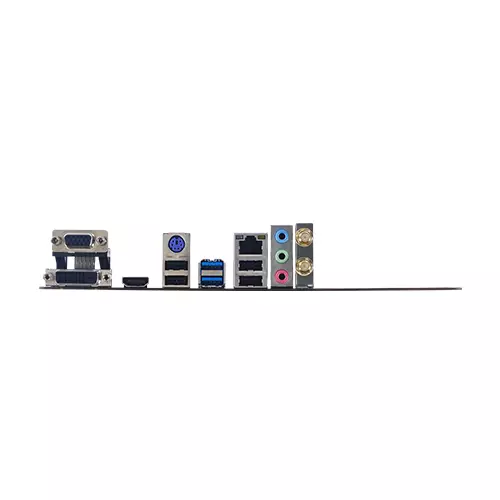

External I/O Ports 2 x WIFI Antenna Ports
1 x PS/2 Keyboard / Mouse
1 x HDMI Port
1 x VGA Port
1 x DVI-D Port
2 x USB 3.2 (Gen1) Ports
4 x USB 2.0 Port
1 x LAN port
3 x Audio Jack
USB 4 x USB 3.2(Gen1) ports (2 on rear I/Os and 2 via internal headers)
8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers)

Physical Specification

Form Factor Micro ATX
Dimension 20.8 cm x 23.6 cm ( W x L )

Warranty Information

Warranty 03 Years

DESCRIPTION

Intel H510 chipset

With the Intel® H510 chipset and the 10th/ 11th generation Intel® Core™ i9/ i7/ i5/ i3 processors and Intel® Pentium® processors, you will immediately be at the forefront of the battlefield, fueled by mind-blowing power and performance. From content creation to gaming, the Intel H510 chipset

HDMI 4K2K

The new 4K2K resolution enables high-definition image display with four times the resolution of a full HD 4K2K display is faithfully expresses bright, highly detailed content that fills the entire screen with lifelike images. Connectivity with PCs via a single HDMI cable for displaying 4K2K data.

Intel GbE LAN

Unlike ordinary LAN solutions, Intel® GbE LAN offers fewer CPU resource consumption and more bandwidth stability. Thus, Intel® LAN is the best choice for performance seekers.

PCIe M.2

PCIe M.2 32Gb/s is the latest storage interface; it delivers the highest bandwidth and lower latency. It's 3 times faster compared with PCIe M.2 10Gb/s.

PCIe Gen 3.0

PCIe 3.0 is the next evolution of the ubiquitous and general-purpose PCI Express I/O standard. At 8GT/s bit rate, the interconnect performance bandwidth is doubled over PCIe 2.0, while preserving compatibility with software and mechanical interfaces.

SATAIII 6Gbps

SATAIII 6Gbps provides a higher bandwidth to retrieve and transfer HD media. With this super speed data transfer, SATAIII allows an incredible data boost which is 2x faster than the SATA 3G.
