Biostar B460GTA 10th Gen Motherboard Specification
| Chipset | Intel B460
|
CPU Support
| - Support for 10th Generation Intel Core i9
- processors/Intel Core i7 processors/Intel Core i5
- processors/Intel Core i3 processors/Intel Pentium
- processors/Intel Celeron processors in the LGA1200 package
| |
Memory
| - Supports Dual Channel DDR4 2133/ 2400/ 2666/ 2800/ 2933
- 4 x DDR4 DIMM Memory Slots, Max. Supports up to 128 GB Memory
- Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
|
Storage
| - Total supports 2 x M.2 slots and 6 x SATA III(6Gb/s) ports
- 1 x PCIe-M2_1 socket , with M key, type 2242/2260/2280 storage devices support SATA & PCIE 3.0 x 4 mode/Intel Optane Technology
- 1 x PCIe-M2_2 socket , with M key, type 2242/2260/2280 storage devices support SATA & PCIE 3.0 x 4 mode/Intel Optane Technology
- 6 x SATA III(6Gb/s)
|
LAN
| - Intel i219V
- 10/ 100/ 1000 Mb/s auto-negotiation, Half / Full duplex capability
- Supports Super LAN Surge Protection
|
Audio & Video
| - By CPU model
- Supports DX 12
- Supports HDCP
- ALC1150
- 7.1 Channels, High Definition Audio, Hi-Fi(Front)
|
USB
| - 8 x USB 3.2(Gen1) ports (4 on rear I/Os and 4 via internal headers)
- 6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)
|
Expansion Slot
| - 3 x PCIe 3.0 x1 Slots
- 1 x PCIe 3.0 x16 Slot (x4)
- 1 x PCIe 3.0 x16 Slot (x16)
|

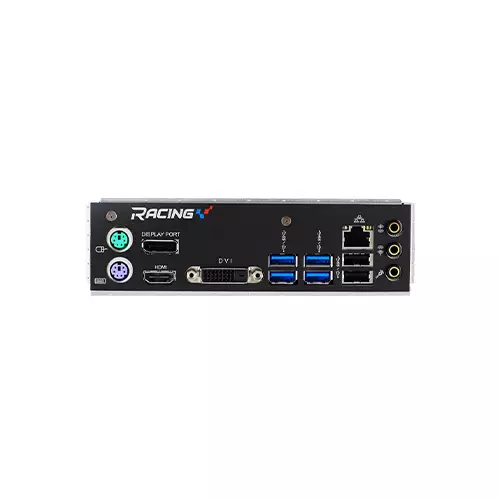

Rear I/O
| - 1 x PS/2 Keyboard
- 1 x PS/2 Mouse
- 1 x DP Port
- 1 x HDMI Port
- 1 x DVI-D Port
- 4 x USB 3.2 (Gen1) Ports
- 2 x USB 2.0 Ports
- 1 x LAN port
- 3 x Audio Jack
|
Internal I/O
| - 6 x SATA III Connectors (6Gb/s)
- 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
- 2 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
- 1 x 8-Pin Power Connector
- 1 x 24-Pin Power Connector
- 1 x CPU Fan Connector
- 1 x CPU water cooling connector (CPU_OPT)
- 2 x System Fan Connectors
- 1 x Front Panel Header
- 1 x Front Audio Header
- 1 x Clear CMOS Header
- 1 x COM Port Header
- 1 x TPM Header
- 2 x LED Header (5V)
- 1 x LED Header (12V)
|
kEY FEATURES:
- Supports 10th Generation Intel Core Processor
- Intel B460 single chip architecture
- Supports 4-DIMM DDR4- 2133/ 2400/ 2666/ 2800/ 2933 up to 128 GB Memory
- Supports PCIe M.2 (32Gb/s)
- Supports Intel Optane Technology
- Supports HDMI 4K resolution
- Supports GbE LAN
