ASUS TUF GAMING H770-PRO WIFI ATX Wi-Fi 6 Motherboard
- Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors
- Intel H770 Chipset
- 4 x DIMM, Max. 192GB, DDR5
- PCIe 5.0 x16 slot
SPECIFICATIONS
Processor
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Mainboard
Memory
7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/
5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Graphics
1 x HDMI port
Networking & Connectivity
TUF LANGuard
Audio & Microphone
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio Cover

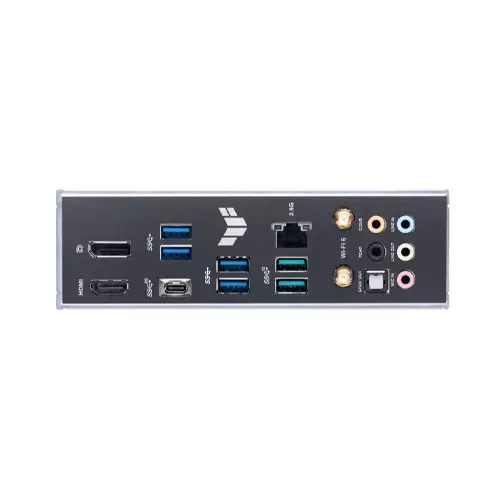

Ports
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt (USB4) header
2 x USB 3.2 Gen 2 ports (2 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
- Two-Way AI Noise Cancelation
- Power Saving
AI Suite 3
- DIGI+ VRM
- PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyAsus
Norton 360 for Gamers
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Special Features
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- Safeslot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeSlot Core+
- SafeDIMM
AURA Sync
- Aura RGB header
- Addressable Gen 2 headers
Others
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antenna
1 x TUF GAMING sticker
2 x M.2 Rubber Packages
2 x Screw package for M.2 SSD
Documentation
1 x TUF Certification card
1 x User guide
Physical Specification
Technical Info
Warranty Information
DESCRIPTION

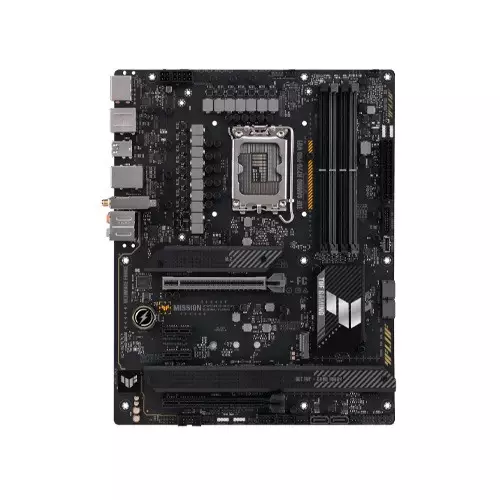

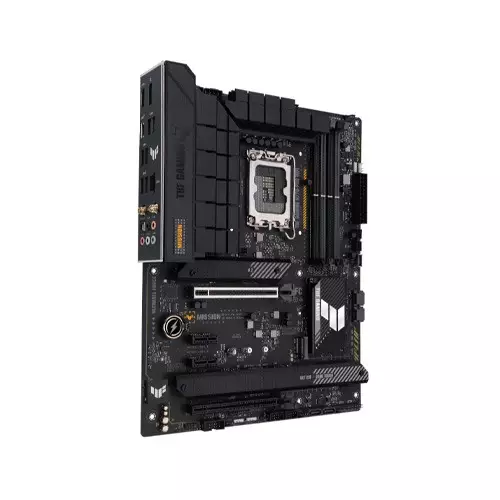

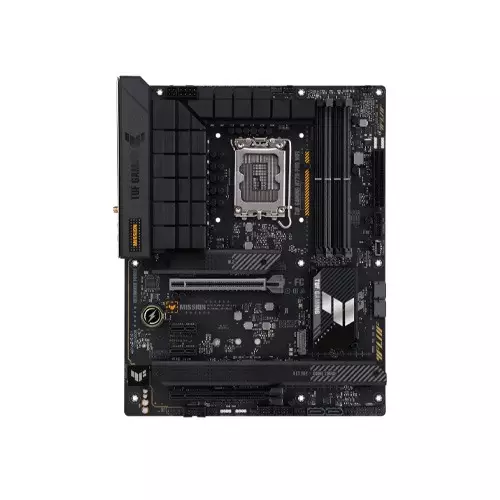

ASUS TUF GAMING H770-PRO WIFI ATX Wi-Fi 6 Motherboard
The ASUS TUF GAMING H770-PRO WIFI is a powerful and versatile ATX motherboard designed for gamers and enthusiasts. This motherboard is designed to be durable and reliable, and it supports the latest Intel processors. It also includes features that will improve your gaming experience and system capabilities. The motherboard supports Intel Socket LGA1700, which means it can run 14th, 13th, and 12th Generation Intel Core processors, as well as Pentium Gold and Celeron processors. It is compatible with Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 for enhanced performance. The TUF GAMING H770-PRO WIFI follows the ATX form factor (12 inch x 9.6 inch) and has a 192 Mb Flash ROM with UEFI AMI BIOS, providing a user-friendly interface for system configuration. The motherboard has four DDR5 DIMM slots and can support up to 192GB of non-ECC, unbuffered memory at speeds of up to DDR5 7200 (OC). It incorporates Intel OptiMem II technology to improve memory performance. Storage options include four M.2 slots and four SATA 6Gb/s ports that support a variety of RAID configurations. The motherboard has three expansion slots: one PCIe 5.0 x16 slot for graphics cards, one PCIe 4.0 x16 slot (which supports x4 mode), and two PCIe 3.0 x1 slots. It has DisplayPort and HDMI outputs for integrated graphics. There are 14 USB ports total, seven on the back (including USB 3.2 Gen 2x2 Type-C and USB 3.2 Gen 2 Type-A ports) and seven on the front. An Intel 2.5Gb Ethernet port with TUF LANGuard is available, as is a 2x2 Wi-Fi 6 module that supports both the 2.4GHz and 5GHz bands, as well as Bluetooth v5.2. The onboard audio is powered by a Realtek 7.1 Surround Sound High Definition Audio CODEC, which supports high-quality audio playback and includes audio shielding, premium capacitors, and dedicated audio PCB layers to improve sound quality. Multiple fan headers are available, including dedicated headers for the CPU, AIO pumps, and chassis fans. The power design includes a 24-pin main power connector, an 8-pin +12V connector, and an extra 4-pin +12V connector to ensure consistent power delivery. ASUS TUF PROTECTION adds durability with DIGI+ VRM, ESD Guards, Overvoltage Protection, and stainless-steel back I/O. ASUS Q-Design and EZ DIY features such as M.2 Q-Latch, Q-LED, and a pre-installed I/O shield make installation and upgrades easier. The motherboard supports AURA Sync, which allows for synchronised RGB lighting. ASUS-exclusive software includes Armoury Crate for system management and customisation, AI Suite 3, Fan Xpert 4, and a variety of third-party applications. The motherboard comes with a three-year manufacturer's warranty. Overall, the ASUS TUF GAMING H770-PRO WIFI motherboard combines dependability, performance, and a plethora of features, making it an excellent choice for gamers and power users looking for a solid foundation for their systems.
What is the price of ASUS TUF GAMING H770-PRO WIFI ATX Wi-Fi 6 Motherboard In Bangladesh?
If you’re looking for a Original ASUS TUF GAMING H770-PRO WIFI ATX Wi-Fi 6 Motherboard in Bangladesh, has got you covered. Peruse our vast selection of the latest Asus Motherboard on sale. You can place your order online or visit the nearest Tech Land store to buy yours at the most reasonable price. The ASUS TUF GAMING H770-PRO WIFI ATX Wi-Fi 6 Motherboard is covered by a 3-year warranty. ASUS TUF GAMING H770-PRO WIFI Price in Bangladesh Starting 34000 BDT
