Asus ROG STRIX Z490-H GAMING Intel 10th Gen Motherboard
Asus ROG STRIX Z490-H GAMING Intel 10th Gen Motherboard

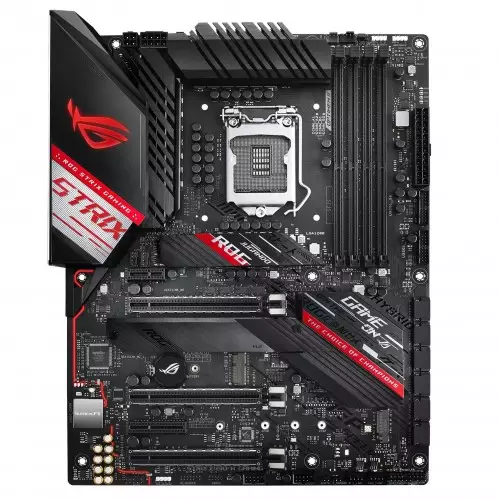

Asus ROG STRIX Z490-H GAMING Intel 10th Gen Motherboard - 1

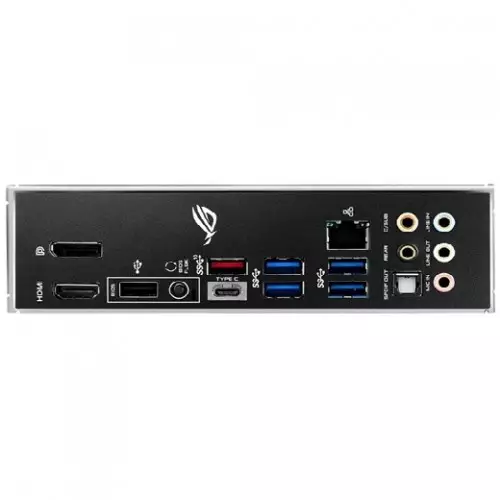

Asus ROG STRIX Z490-H GAMING Intel 10th Gen Motherboard - 2

Asus ROG STRIX Z490-H GAMING Intel 10th Gen Motherboard

0 Reviews
Stock : Discontinued
PID : P00025061897
Brand : Asus
Model : ROG STRIX Z490-H GAMING
Warranty : 5 Years
  • Chipset: Intel Z490
  • Supported CPU: Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports In...
  • LAN: Intel I225-V 2.5Gb Ethernet ASUS LANGuard
  • Slots: PCI Intel 10th Gen Processors 3 x PCIe 3.0 x16 (x16 or x8+x4+x4) Intel Z490 Chipset 1 x PC...

SPECIFICATIONS

Processor

Supported CPU Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Mainboard

Chipset Intel Z490
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Memory

Memory Type Dual Channel Memory Architecture
Slots : 4 x DDR4 DIMM
Supported Memory 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
OptiMem II
Maximum Mamory : 128 GB

Storage

Supported Storage Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel Z490 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel Optane Memory Ready

Graphics

Graphics Integrated Graphics Processor
1 x DisplayPort 1.4
1 x HDMI 1.4b
Supports AMD 2-Way CrossFireX Technology

Networking & Connectivity

LAN Intel I225-V 2.5Gb Ethernet
ASUS LANGuard

Audio & Microphone

Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
Audio Feature :
- SupremeFX Shielding Technology
- Gold-plated jacks
- Optical S/PDIF in port(s) at back panel
- LED-lit Audio Shielding
- Premium Japanese audio capacitors
- Audio Cover

Ports

Slots PCI Intel 10th Gen Processors
3 x PCIe 3.0 x16 (x16 or x8+x4+x4)
Intel Z490 Chipset
1 x PCIe 3.0 x4 (max at x2 mode)
1 x PCIe 3.0 x1
M.2 Socket Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel Z490 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
Internal I/O Ports 1 x M.2_FAN connector
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x Addressable RGB header
1 x AAFP connector
2 x Aura RGB Strip Headers
2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 1 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode)
1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 with E key for Wi-Fi module
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x CPU_OV jumper
1 x VRM_HS_FAN Header
External I/O Ports 1 x Intel® I225-V 2.5Gb Ethernet
1 x DisplayPort
1 x HDMI
2 x USB 3.2 Gen 2 (1 x Type-A + USB Type-CTM)
4 x USB 3.2 Gen 1 Type-A
1 x USB 2.0 (one port can be switched to USB BIOS FlashBack™)
1 x Optical S/PDIF out
1 x USB BIOS FlashBack™ Button(s)
5 x Gold-plated audio jacks
USB Rear USB Port ( Total 7 )
2 x USB 3.2 Gen 2 port(s)(1 x Type-A + USB Type-C)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
1 x USB 2.0 port(s)
Front USB Port ( Total 8 )
4 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)

Physical Specification

Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Warranty Information

Warranty 03 Years

DESCRIPTION

Asus ROG STRIX Z490-H GAMING Motherboard

Overview

  • Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors.
  • Optimal Power Solution: 12+2 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors.
  • High-performance Networking: M.2 socket with E-key and Intel® 2.5 Gb Ethernet with ASUS LANGuard.
  • Best Gaming Connectivity: Supports HDMI 1.4 and DisplayPort 1.4, and featuring USB 3.2 Gen 2 Type-A and Type-C® connectors.
  • Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling and AI Networking, helping you configure your gaming build easily.
  • DIY Friendly Design: Pre-mounted I/O shield, BIOS Flashback, Q-LEDs and FlexKey.
  • Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers.
  • Industry-leading Gaming Audio: High fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III to draw you deeper into the action.
**03 Year Warranty.

Asus ROG STRIX Z490-H GAMING Motherboard

ROG Strix Z490-H Gaming motherboard dons the classic red-and-black color scheme, and pairs it with futuristic cybertext for a new look. This ATX gaming motherboard is packed with all the essentials, including the latest connectivity and intuitive ROG software. Striking aesthetics and cutting-edge innovations make ROG Strix Z490-H Gaming ideal for gamers of all levels. ROG Strix Z490-H Gaming helps you get the most out of your gaming build with up-rated power delivery and optimized cooling. Intelligent controls let you manage to overclock, cooling, and networking settings easily, giving you everything you need to harness the full potential of your build for top-tier gaming performance. ER DESIGN Digital power control and an array of power stages ensure ROG Strix Z490-H Gaming has the muscle to control the latest Intel CPUs. The ProCool II socket is built to tight specifications to ensure flush contact with the PSU power lines and have a metal armor for improved heat dissipation. The connector's lower impedance helps prevent hotspots and improves reliability. The Digi+ voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and clean power delivery to the CPU. ROG Strix Z490-H Gaming utilizes 12+2 power stages to combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest Intel processors demand. Superior chokes and durable capacitors are engineered to resist extreme temperatures and provide up to 110% better performance than the industry standard. ROG Strix Z490-H Gaming provides you with the latest connectivity for supersmooth online experiences and blisteringly-fast file transfers.



[product_table id="34" limit="10" type="filter" filter_category="6082"]

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Asus ROG STRIX Z490-H GAMING Intel 10th Gen Motherboard Price in Bangladesh 2026 ?

The Asus ROG STRIX Z490-H GAMING Price in BD is 43,500৳ . This Asus ROG STRIX Z490-H GAMING Intel 10th Gen Motherboard Manufacturing by Asus Comes With 5 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus ROG STRIX Z490-H GAMING by 43,500৳ and its regular price is 45,000৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
