ASROCK X570S PG RIPTIDE AMD AM4 ATX MOTHERBOARD
ASROCK X570S PG RIPTIDE AMD AM4 ATX MOTHERBOARD
ASROCK X570S PG RIPTIDE AMD AM4 ATX MOTHERBOARD - 1
ASROCK X570S PG RIPTIDE AMD AM4 ATX MOTHERBOARD - 2
ASROCK X570S PG RIPTIDE AMD AM4 ATX MOTHERBOARD - 3

ASROCK X570S PG RIPTIDE AMD AM4 ATX MOTHERBOARD

0 Reviews
Stock : Discontinued
PID : P00025064615
Brand : ASRock
Model : X570S PG Riptide
Warranty : 3 Years
  • Chipset AMD X570
  • 256Mb AMI UEFI Legal BIOS
  • ATX Form Factor
  • Solid Capacitor design

SPECIFICATIONS

Processor

Supported CPU - Supports AMD AM4 Socket Ryzen 2000, 3000, 4000 G-Series and 5000 Series Desktop
Processors

- Digi Power design

- 10 Power Phase design

Mainboard

Chipset AMD X570
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support

- Supports "Plug and Play"

- ACPI 5.1 compliance wake up events

- Supports jumperfree

- SMBIOS 2.3 support

- CPU, VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP
Voltage Multi-adjustment

Memory

Memory - Dual Channel DDR4 Memory Technology

- 4 x DDR4 DIMM Slots

- AMD Ryzen series CPUs (Vermeer) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) /
4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) /
4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) /
3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-
ECC, un-buffered memory*

- AMD Ryzen series CPUs (Matisse) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) /
4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) /
4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) /
3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-
ECC, un-buffered memory*

- AMD Ryzen series APUs (Cezanne) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) /
4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) /
4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) /
3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-
ECC, un-buffered memory*

- AMD Ryzen series APUs (Renoir) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) /
4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) /
4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) /
3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC &
non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) /
3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*

- AMD Ryzen series APUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667
/ 2400 / 2133 non-ECC, un-buffered memory*

- Max. capacity of system memory: 128GB*

- Supports Extreme Memory Profile (XMP) memory modules

- 15μ Gold Contact in DIMM Slots

Storage

Supported Storage - 6 x SATA3 6.0 Gb/s Connectors

- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI
Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32
Gb/s) (with Cezanne, Renoir, Pinnacle Ridge and Picasso)*

- 1 x Hyper M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3
6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with
Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir, Pinnacle Ridge
and Picasso)*

Graphics

Graphics - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*

- DirectX 12, Pixel Shader 5.0

- Shared memory default 2GB. Max Shared memory supports up to 16GB.**

- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio)
with HDMI 2.1 Port (Compliant HDMI monitor is required)

- Supports HDR (High Dynamic Range) with HDMI 2.1

- Supports HDCP 2.3 with HDMI 2.1 Port

- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port

- Supports Microsoft® PlayReady

Networking & Connectivity

LAN - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

- 1 x Killer E3100G (PCIE x1 Gigabit LAN 10/100/1000/2500 Mb/s)

- Supports Killer LAN Software

- Supports Wake-On-LAN

- Supports Lightning/ESD Protection

- Supports Energy Efficient Ethernet 802.3az

- Supports PXE

Audio & Microphone

Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

- Supports Surge Protection

- Gold Audio Jacks

- Nahimic Audio

Ports

Slots AMD Ryzen series CPUs (Vermeer, Matisse)

- 1 x PCI Express 4.0 x16 Slot (x16 (PCIE1))*

AMD Ryzen series CPUs (Cezanne, Renoir, Pinnacle Ridge)

- 1 x PCI Express 3.0 x16 Slot (x16 (PCIE1)*

AMD Ryzen series APUs (Picasso)

- 1 x PCI Express 3.0 x16 Slot (x8 (PCIE1))*

AMD X570 Chipset

- 2 x PCI Express 4.0 x16 Slots (x4 (PCIE4) / x2 (PCIE6))


- 3 x PCI Express 4.0 x1 Slots

- Supports AMD Quad CrossFireX™ and CrossFireX™

- 15μ Gold Contact in VGA PCIe Slot (PCIE1)

- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

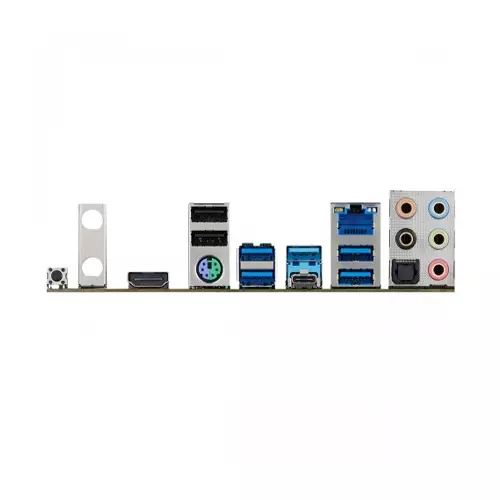

Internal I/O Ports - 1 x Antenna Bracket

- 1 x PS/2 Mouse/Keyboard Port

- 1 x HDMI Port

- 1 x Optical SPDIF Out Port

- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)

- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)

- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)*

- 2 x USB 2.0 Ports (Supports ESD Protection)

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- 1 x BIOS Flashback Button with LED

- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
External I/O Ports - 1 x Power LED and Speaker Header

- 2 x RGB LED Headers*

- 2 x Addressable LED Headers**

- 1 x CPU Fan Connector (4-pin)***

- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****

- 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****

- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)

- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)

- 1 x Front Panel Audio Connector

- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card only)

- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)

- 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)

- 1 x Clear CMOS Button
USB - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)

- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)

- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)

- 2 x USB 2.0 Ports (Supports ESD Protection)

Physical Specification

Form Factor ATX Form Factor
Dimension 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

Warranty Information

Warranty 03 Years

DESCRIPTION

ASRock X570S PG Riptide AMD Motherboard in Bangladesh

Riptide is named after a specific kind of water current with strong waves that occurs in the ocean, representing the philosophy of sea’s double-side, calm and unlimited strength. Built around powerful gaming-related features, the Riptide has given a powerful smash and immersed users in the sense of stability.

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Premium 60A Power Choke

Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Killer Ethernet E3100

The Killer E3100 2.5 Gbps Ethernet controller is designed specically for competitive gamers and performance-hungry users. The enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications.

Intel Killer Prioritization Engine

The Intel Killer Prioritization Engine detects and optimally prioritizes over 1,000 different games, apps, and websites to deliver amazing online experiences, ensuring you get your lowest in-game latencies by prioritizing your gaming traffic above everything else.

AMD SMART ACCESS MEMORY

Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With AMD Smart Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.

Dual Hyper M.2 For SSD

Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Lightning Gaming Ports

(Patent Pending)

Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!

Reinforced Steel Slot [PCIe 4.0 Version]

The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:

  •  Extra anchor points
  •  Stronger latch
  •  Ensure signal stability
  •  Make sure heavy graphics cards to be well-installed.

ASRock Graphics Card Holder

(Patent Pending)

Install your heavy graphics card on the holder; connect it to your motherboard and chassis with screws. Flexibly slide up and down to perfectly adjust the height required for your graphics card in place.
