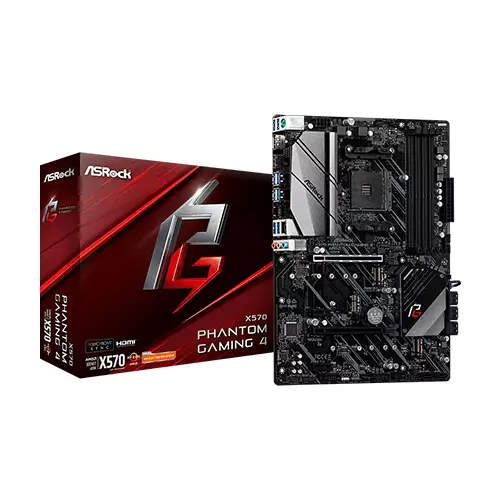

Asrock X570 Phantom Gaming 4 AMD Motherboard
Asrock X570 Phantom Gaming 4 AMD Motherboard
Specifications : |

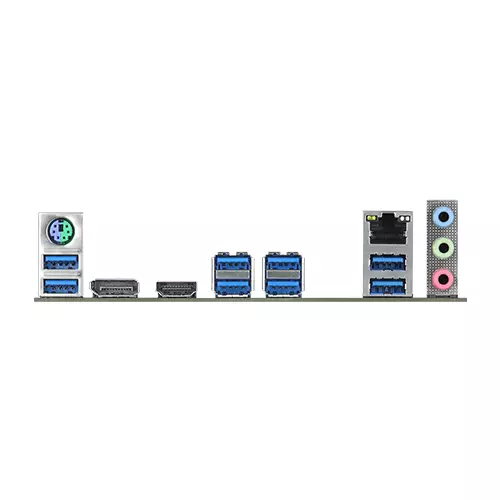

●︎ Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors ●︎ 10 Power Phase Design ●︎ Supports DDR4 4066+ (OC) ●︎ 2 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2(Key E) For WiFi ●︎ AMD Quad CrossFireX™ and CrossFireX™ ●︎ Graphics Output Options: HDMI, DisplayPort ●︎ 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), ELNA Audio Caps ●︎ 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4) ●︎ 2 USB 3.2 Gen2 (Rear Type-A), 10 USB 3.2 Gen1 (4 Front, 6 Rear) ●︎ Intel® Gigabit LAN ●︎ ASRock Polychrome SYNC |
**03 Year Warranty |
Asrock X570 Phantom Gaming 4 AMD Motherboard
The next generation PCI Express 4.0 is capable of performing twice the speed compared to previous 3rd generation. ASRock’s exclusive Steel Slot with extra anchor points are revolutionary added to ensure signal stability and also making sure heavy graphics cards to be well-installed in the PCI-E slot safely. Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique. Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. Delivering data transfer rates up to 10X faster than USB 2.0 with optimized power efficiency. USB 3.2 Gen2 technology advances the data transfer rate up to 10Gb/s. ASRock provides 2 x USB 3.2 Gen2 ports onboard allows you to have a stunning data transfer experience. Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network.
