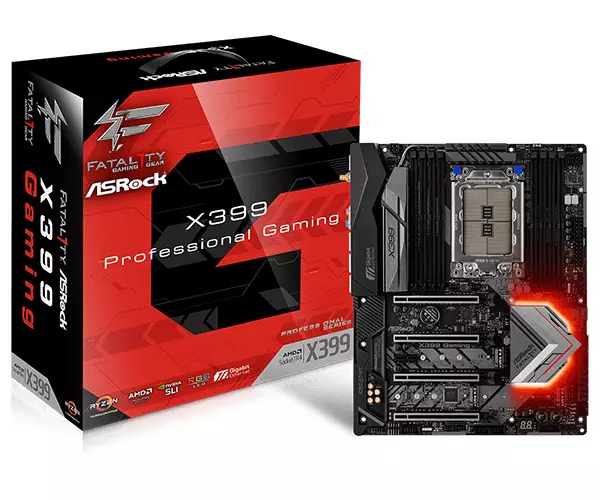

ASRock Fatal1ty X399 Professional Gaming AMD Motherboard
- Chipset: AMD X399
- LAN: 1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (AQUANTIA® AQC107): - Supports Wake-On-LA...
- Slots: - 4 x PCI Express 3.0 x16 Slots (PCIE1/PCIE2/PCIE4/PCIE5: single at x16 (PCIE1); dual at x...
- Audio: - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray...
SPECIFICATIONS
Mainboard
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustment
Memory
- 8 x DDR4 DIMM Slots
- Supports DDR4 3600+(OC)/3200(OC)/2933(OC)/2667/2400/2133 ECC & non-ECC, un-buffered memory(U-DIMM)
- Max. capacity of system memory: 128GB*
- 15μ Gold Contact in DIMM Slots
Storage
- 2 x Ultra M.2 Sockets (M2_1 and M2_2), support M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
- 1 x Ultra M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
- 1 x U.2 Connector**
Networking & Connectivity
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports PXE
Wireless LAN
- Intel® 802.11ac WiFi Module (Free Bundle)
- Supports IEEE 802.11a/b/g/n/ac
- Supports Dual-Band (2.4/5 GHz)
- Supports high speed wireless connections up to 433Mbps
- Supports Bluetooth 4.2 / 3.0 + High speed class II
Audio & Microphone
- Premium Blu-ray Audio support
- Supports Surge Protection
- Nichicon Fine Gold Series Audio Caps
- 120dB SNR DAC with Differential Amplifier
- TI® NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
- Pure Power-In
- Direct Drive Technology
- PCB Isolate Shielding
- Impedance Sensing on Rear Out port
- Individual PCB Layers for R/L Audio Channel
- RGB LED
- Gold Audio Jacks
- 15μ Gold Audio Connector
- Supports Creative Sound Blaster™ Cinema 3
Ports
- 1 x PCI Express 2.0 x1 Slot
- Supports AMD Quad CrossFireX™, 4-Way CrossFireX™, 3-Way CrossFireX™ and CrossFireX™
- Supports NVIDIA® Quad SLI™, 4-Way SLI™, 3-Way SLI™ and SLI™
- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
- 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE4)
Others
- Hi-Density Power Connectors (24 pin for Motherboard, 8+4 pin for Motherboard, 6 pin for PCIe Slot)
- IR Dr. MOS
Memory
- 15μ Gold Contact in DIMM Slots
VGA Card
- 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE4)
Internet
- AQUANTIA® 10G LAN
- Intel® LAN
Cooling
- XXL Aluminum Alloy Heatsink
- 8 Layer PCB
- 2oz Copper PCB
- Heat Pipe Design
Audio
- Creative Sound Blaster™ Cinema 3
Warranty Information
DESCRIPTION
ASRock Fatal1ty X399 Professional
●︎ ASRock Super Alloy
●︎ Gaming Armor: Power / Memory / VGA / Internet / Cooling / Audio
●︎ Supports AMD TR4 Socket Ryzen Threadripper Series CPUs
●︎ IR Digital PWM, 11 Power Phase & Dr. MOS
●︎ Supports Quad Channel DDR4 3600+(OC) & ECC UDIMM Memory
●︎ 4 PCIe 3.0 x16, 1 PCIe 2.0 x1
●︎ NVIDIA® 4-Way SLI™, AMD 4-Way CrossFireX™
●︎ 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Creative Sound Blaster™ Cinema 3
●︎ 8 SATA3, 3 Ultra M.2 (PCIe Gen3 x4 & SATA3)
●︎ 2 USB 3.1 Gen2 10Gb/s (1 Type-A + 1 Type-C), 12 USB 3.1 Gen1 (4 Front, 8 Rear)
●︎ 1 U.2 Connector
●︎ AQUANTIA® 10 Gigabit LAN, Dual Intel® Gigabit LAN
●︎ Intel® 802.11ac WiFi
●︎ ASRock RGB LED
●︎ BIOS Flashback
●︎ Hyper BCLK Engine III
**3 years warranty.
AQUANTIA® 10Gb/s BASE-T Ethernet
The new 10Gb/s network standard was specially designed to satisfy the user who is seeking immediate performance improvements. Based on AQUANTIA's AQtion™ client controller, it offers blazingly fast 10-gigabit/sec transfer speed over Cat6 cable. The 10Gb/s Ethernet not only fully compatible with 5Gb/s, 2.5Gb/s & Gigabit Lan but also delivers lightning fast transfer speed, perfect for media center, workstation and gaming PC.
[product_table id="34" limit="10" type="filter" filter_category="7271"]
The ASRock Fatal1ty X399 Professional Gaming AMD Motherboard, available at Techland BD in Bangladesh, is a high-performance powerhouse designed for serious gamers, content creators, and PC enthusiasts seeking ultimate stability, speed, and expandability. Built around the robust AMD X399 chipset, this motherboard supports the latest AMD Ryzen Threadripper processors, delivering exceptional multi-core performance for gaming, rendering, and multitasking. Its 128Mb AMI UEFI BIOS with GUI support ensures user-friendly operation, full "Plug and Play" functionality, and advanced voltage multi-adjustment for CPU, DRAM, VCORE, and other critical components, while supporting ACPI 5.1 wake-up events and jumper-free configuration for convenience. Equipped with quad-channel DDR4 memory technology across 8 DIMM slots, the motherboard can accommodate up to 128GB of DDR4 memory, supporting speeds from 2133MHz to 3600MHz (OC) for both ECC and non-ECC modules, ensuring seamless gaming and workstation performance. Storage options are equally impressive, featuring 8 SATA3 6.0 Gb/s connectors with RAID support (RAID 0, 1, 10), three Ultra M.2 sockets, and a U.2 connector, allowing ultra-fast NVMe SSDs and ample storage expansion. Networking capabilities include a 10 Gigabit LAN port (AQUANTIA AQC107) for lightning-fast wired connections with PXE, Wake-On-LAN, and surge protection, as well as an Intel 802.11ac WiFi module for dual-band wireless speeds up to 433Mbps and Bluetooth 4.2/3.0 support. Audio enthusiasts will appreciate the 7.1-channel Realtek ALC1220 HD audio codec, premium Nichicon gold series capacitors, TI NE5532 headset amplifier, Pure Power-In, PCB isolate shielding, and Creative Sound Blaster™ Cinema 3 support, delivering immersive sound with 120dB SNR. The motherboard also features 4 PCIe 3.0 x16 slots supporting AMD CrossFireX™ and NVIDIA SLI™, plus additional PCIe 2.0 x1 expansion, a vertical M.2 slot for WiFi, and gold-plated contacts for stability and longevity. Enhanced cooling is ensured with XXL aluminum alloy heatsinks, heat-pipe design, 2oz copper 8-layer PCB, and efficient power delivery through Hi-Density connectors and IR Dr. MOS. The ASRock Fatal1ty X399 Professional Gaming AMD Motherboard combines cutting-edge technology, exceptional connectivity, and premium design, making it the ideal choice for high-end gaming and professional PC builds in Bangladesh.
