ASRock B550 Taichi Razer Edition AMD AM4 ATX Motherboard
ASRock B550 Taichi Razer Edition AMD AM4 ATX Motherboard

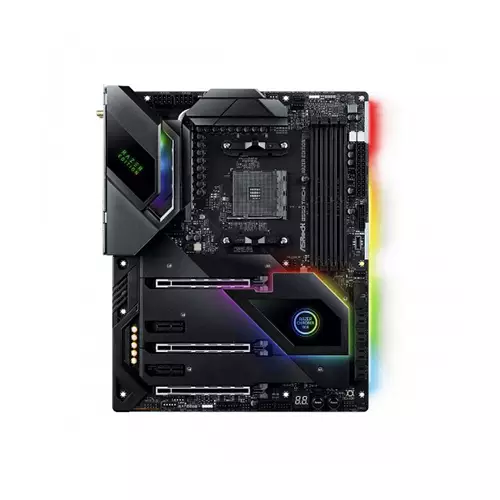

ASRock B550 Taichi Razer Edition AMD AM4 ATX Motherboard - 1

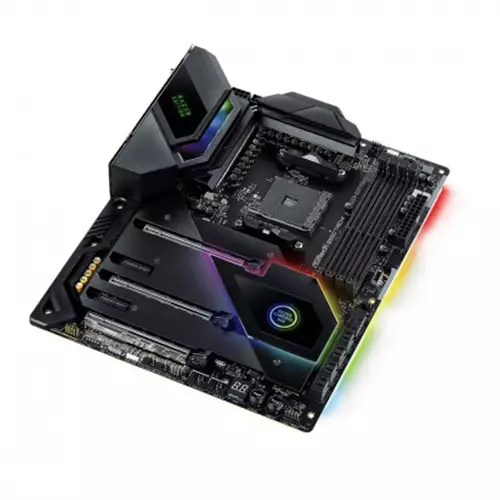

ASRock B550 Taichi Razer Edition AMD AM4 ATX Motherboard - 2

ASRock B550 Taichi Razer Edition AMD AM4 ATX Motherboard

0 Reviews
Stock : Discontinued
PID : P00025063231
Brand : ASRock
Model : ASRock B550
Warranty : 3 Years
  • Chipset AMD B550
  • 256Mb AMI UEFI Legal BIOS
  • ATX Form Factor
  • 4 x DDR4 DIMM Slots

SPECIFICATIONS

Processor

Supported CPU Supports AMD AM4 Socket Ryzen 3000, 4000 G-Series, and 5000 Series Desktop Processors

Mainboard

Chipset AMD B550
BIOS 256Mb AMI UEFI Legal BIOS with GUI support
Supports "Plug and Play"
ACPI 5.1 compliance wake up events
Supports jumperfree
SMBIOS 2.3 support
CPU, CPU VDDCR_SOC, DRAM, VPPM, VTT_DDR Offset, CPU VDD 1.8 Voltage Multi-adjustment

Memory

Memory 128GB

Storage

Supported Storage 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
4 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer and Matisse) or Gen3x4 (32 Gb/s) (with Renoir)
1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

Graphics

Graphics Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
DirectX 12, Pixel Shader 5.0
Shared memory default 2GB. Max Shared memory supports up to 16GB.
Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports DisplayPort 1.4 Input with max. resolution up to 5K (5120x2880)@120Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
Supports HDR (High Dynamic Range) with HDMI 2.1
Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports
Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports
Supports Microsoft PlayReady

Networking & Connectivity

LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
1 x Killer E3100X (PCIE x1 Gigabit LAN 10/100/1000/2500 Mb/s)
Supports Killer LAN Software
Supports Killer DoubleShot Pro
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE
Wireless Communication module
Killer AX1650x 802.11a
WiFi Killer AX1650x 802.11ax WiFi Module
Supports IEEE 802.11a/b/g/n/ax
Supports Dual-Band (2.4/5 GHz)
Supports Killer WiFi6 802.11ax (2.4Gbps)
2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
Supports Bluetooth 5.1 + High speed class II
Supports MU-MIMO
Supports Killer LAN Software
Supports Killer DoubleShot Pro

Audio & Microphone

Audio 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
Premium Blu-ray Audio support
Supports Surge Protection
NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
Pure Power-In
Direct Drive Technology
PCB Isolate Shielding
Impedance Sensing on Rear Out port
Individual PCB Layers for R/L Audio Channel
Gold Audio Jacks
15μ Gold Audio Connector
Nahimic Audio

Ports

Slots 4 x DDR4 DIMM Slots
Internal I/O Ports 1 x Power LED and Speaker Header
2 x RGB LED Headers
2 x Addressable LED Headers
1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)
1 x Dr. Debug with LED
1 x Power Button with LED
1 x Reset Button with LED
1 x Clear CMOS Button
HDMI Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz

Others

Other Features ASRock Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- 50A Dr.MOS
- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- I/O Armor
- Matte Black PCB
High Density Glass Fabric PCB
2oz Copper PCB
Killer 2.5G LAN
Killer 802.11ax WiFi
Killer DoubleShot Pro
ASRock Steel Slot Gen4
ASRock Full Coverage M.2 Heatsink
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock Ultra USB Power
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

Physical Specification

Form Factor ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
2oz Copper PCB
Dimension 12.0" x 9.6"(WL)

Warranty Information

Warranty 03 Years

DESCRIPTION

ASRock B550 TAICHI RAZER Edition Motherboard Overview

For Gamers. By Gamers.Co-developed in partnership with Razer, this board combines ASRock's signature quality and durability with gorgeous lighting Razer is known for. Crafted with superb components, advanced circuitry, comprehensive onboard cooling, and new-generation connectivity like PCIe 4.0 and USB 3.2 Gen2, the ASRock B550 offers a solid foundation for you to build your new powerhouse, in style


ASRock x Razer

The COOLEST flagship motherboard, ASRock Taichi, stands out for its incredible OC performance and premium specification. Here comes the new version, Taichi - Razer Edition, which is the world’s first motherboard natively integrated with Razer Chroma RGB lighting. It is the ultimate control center for all things Chroma RGB, and enables universal compatibility with thousands of ARGB components directly into the ecosystem.Go perfect the Razer build


Razer Chroma

Razer Synapse 3 allows you to customize the lighting on your motherboard and other Addressable RGB (ARGB) devices connected to the motherboard's headers. To set up, follow these steps:

1. Plug your ARGB LED strips or devices to any of the 3-pin 5V ARGB headers on the motherboard.

2. Download Razer Synapse 3 from razer.com/synapse then install and login.

3. Use Razer Synapse 3 to access in-depth lighting customization options; and integrate games and applications across your ARGB and Razer Chroma-enabled devices for a truly immersive experience


CHROMA CONNECT

From one convenient dashboard, sync up all your Chroma-enabled devices with Chroma-integrated games and applications for a truly immersive lighting experience. To make the most of this, stay up to date with our latest developments by visiting the Chroma Workshop.

CHROMA VISUALIZER

Enjoy a dynamic level of audio visualization with colorful sound waves that jump up and down on your device as you play your favorite music, games, and videos.

Killer Networking

Killer Ethernet E3100 and Killer Wi-Fi 6 AX1650, designed specifically for competitive gamers and performance-hungry users, prioritize real time packets over other packets and offer an uninterrupted online entertainment experience
