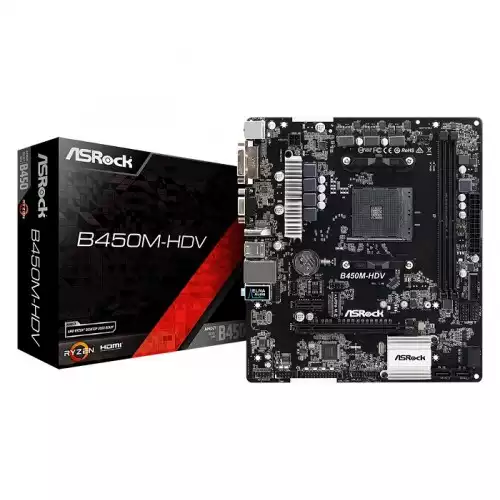

Asrock B450M-HDV AM4 Micro ATX AMD Motherboard

Asrock B450M-HDV AM4 Micro ATX AMD Motherboard

0 Reviews
Stock : Out of Stock
PID : P1172506002
Brand : ASRock
Model : Asrock B450M-HDV
Warranty : 3 years
  • AMD AM4 Socket
  • Supports DDR4 3200+ (OC)
  • 1 PCIe 3.0 x16, 1 PCIe 2.0 x1

Product Pricing

Discount Price

৳7,900 ৳8,500
+ Available Payment Method

EMI Start From*

৳278

SPECIFICATIONS

Processor

Supported CPU - AMD AM4 Socket
- Digi Power design
- Supports CPU up to 105W

Mainboard

Chipset AMD Promontory B450
BIOS - 128Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- DRAM Voltage multi-adjustment

Memory

Memory -AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory
Maximum Mamory: 32GB

Storage

Supported Storage - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
- 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge)

Graphics

Graphics Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU
Supported Graphics:
-Three graphics output options: D-Sub, DVI-D and HDMI
- Supports Triple Monitor
- Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP with DVI-D and HDMI Ports
- Supports 4K Ultra HD (UHD) playback with HDMI Port

Networking & Connectivity

LAN 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

Audio & Microphone

Audio 1 x Front Panel Audio Connector

Ports

Slots 2 x DDR4 DIMM Slots
Internal I/O Ports - 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
USB - 2 x USB 2.0 Ports (Supports ESD Protection)
- 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
HDMI 1 x HDMI Port

Physical Specification

Form Factor - Micro ATX Form Factor: 9.1-in x 8.1-in, 23.1 cm x 20.6 cm
- Solid Capacitor design

Warranty Information

Warranty 3 years

DESCRIPTION



Asrock B450M-HDV AMD

●︎ AMD AM4 Socket

●︎ Supports DDR4 3200+ (OC)

●︎ 1 PCIe 3.0 x16, 1 PCIe 2.0 x1

●︎ Graphics Output: HDMI, DVI-D, D-Sub

●︎ Supports Triple Monitor

●︎ 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps

●︎ 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)

●︎ 6 USB 3.1 Gen1 (2 Front, 4 Rear)

●︎ Realtek Gigabit LAN

**03 years Warranty.



[product_table id="34" limit="10" type="filter" filter_category="7271"]

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Asrock B450M-HDV AM4 Micro ATX AMD Motherboard Price in Bangladesh 2026 ?

The ASRock Asrock B450M-HDV Price in BD is 7,900৳ . This Asrock B450M-HDV AM4 Micro ATX AMD Motherboard Manufacturing by ASRock Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you ASRock Asrock B450M-HDV by 7,900৳ and its regular price is 8,500৳ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
