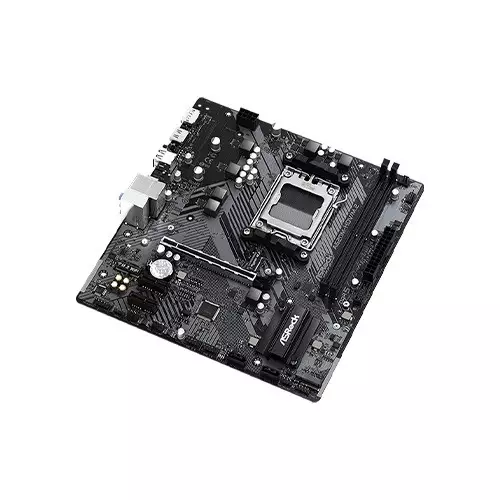

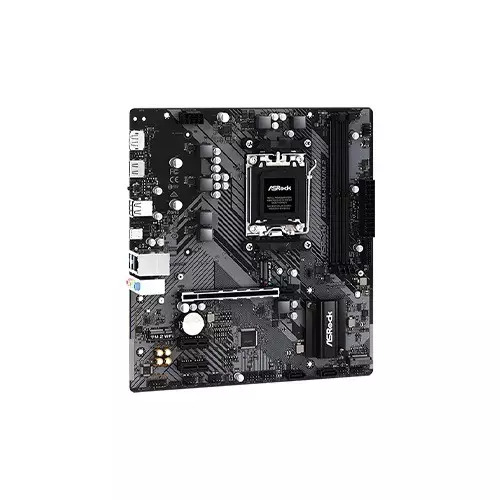

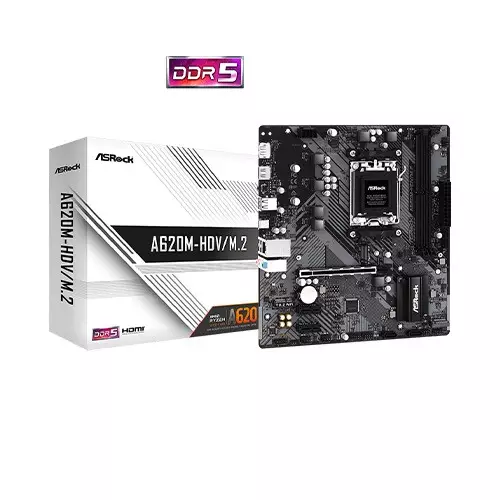

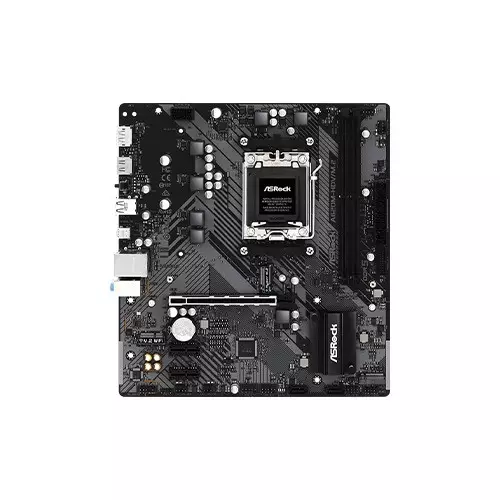

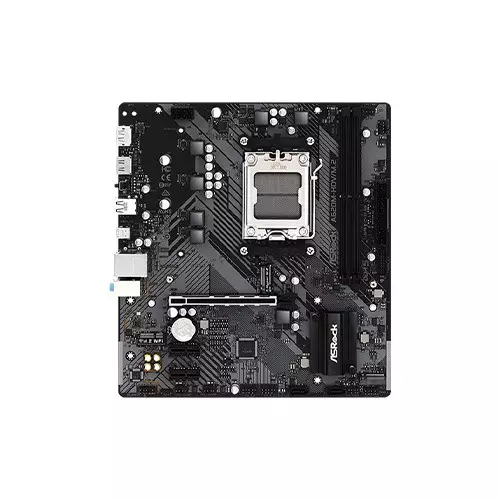

ASRock A620M-HDV/M.2 DDR5 AM5 Micro ATX AMD Motherboard
ASRock A620M-HDV/M.2 DDR5 AM5 Micro ATX AMD Motherboard
ASRock A620M-HDV/M.2 DDR5 AM5 Micro ATX AMD Motherboard - 1
ASRock A620M-HDV/M.2 DDR5 AM5 Micro ATX AMD Motherboard - 2
ASRock A620M-HDV/M.2 DDR5 AM5 Micro ATX AMD Motherboard - 3
ASRock A620M-HDV/M.2 DDR5 AM5 Micro ATX AMD Motherboard - 4
ASRock A620M-HDV/M.2 DDR5 AM5 Micro ATX AMD Motherboard - 5

ASRock A620M-HDV/M.2 DDR5 AM5 Micro ATX AMD Motherboard

0 Reviews
Stock : Discontinued
PID : P1172506060
Brand : ASRock
Model : A620M-HDV/M.2
Warranty : 3-Years
  • Chipset: AMD A620
  • Memory Slots: 4 x DDR5 DIMM
  • Maximum Memory: 256GB
  • BIOS: 256Mb AMI UEFI Legal

PRODUCT SPECIFICATIONS

Processor

Chipset AMD A620

Mainboard

BIOS 256Mb AMI UEFI Legal BIOS with GUI support

Memory

Memory Specifications Maximum Memory: 128GB



Supported Memory

Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)

Supports Extreme Memory Profile (XMP) and EXTended Profiles for
Overclocking (EXPO) memory modules
Memory Type Dual Channel DDR5 Memory Technology
Expansion RAM Slot 2 x DDR5 DIMM Slots

Storage

Supported Storage - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10),


NCQ, AHCI and Hot Plug

- 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0

Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

(with Summit Ridge, Raven Ridge and Pinnacle Ridge) or

Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU)



- Supports NVMe SSD as boot disks

- Supports ASRock U.2 Kit





RAID

Supports RAID 0 and RAID 1 for SATA storage devices

Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

Graphics

Graphics 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR,

HDCP 2.3 and max. resolution up to 4K 120Hz

1 x DisplayPort 1.4 with DSC (compressed),

supports HDCP 2.3 and max. resolution up to 4K 120Hz





Max Shared Memory

Integrated AMD RDNA graphics (Actual support may vary by CPU)

Networking & Connectivity

LAN 1 x RJ-45 Gigabit LAN 10/100/1000 Mb/s

Realtek RTL8111H

Audio & Microphone

Audio HD Audio Jacks: Line in / Front Speaker / Microphone

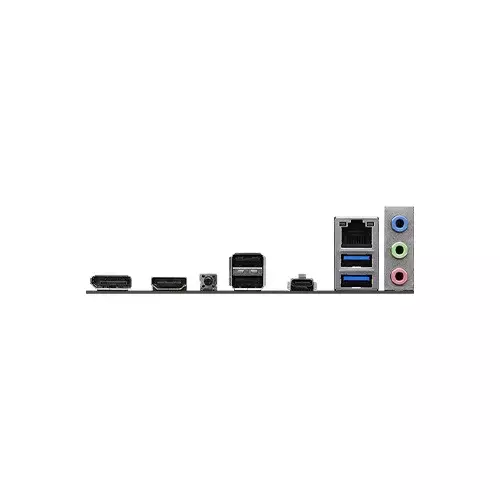

Ports

I/O Port - 2 x Antenna Mounting Points

- 1 x HDMI Port

- 1 x DisplayPort 1.4

- 1 x USB 3.2 Gen1 Type-C Port

- 2 x USB 3.2 Gen1 Type-A Ports

- 2 x USB 2.0 Ports

- 1 x RJ-45 LAN Port

- 1 x BIOS Flashback Button

- HD Audio Jacks: Line in / Front Speaker / Microphone

- 1 x Power LED and Speaker Header

- 1 x CPU Fan Connector (4-pin)*

- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**

- 1 x 24 pin ATX Power Connector

- 1 x 8 pin 12V Power Connector

- 1 x Front Panel Audio Connector

- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
USB 1 x USB 3.2 Gen1 Type-C (Rear)

4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)

6 x USB 2.0 (2 Rear, 4 Front)
HDMI 1 x HDMI Port

Software

Bundled Software Superb Productivity

- Dual Channel DDR5


Rock-Solid Durability

- 4+1+1 Power Phase, 50A Dr.MOS for VCore


EZ Update

- BIOS Flashback Button

- ASRock Auto Driver Installer

Special Features

Special Features Software

- ASRock Motherboard Utility (A-Tuning)


UEFI

- ASRock Full HD UEFI

- ASRock Auto Driver Installer

- ASRock Instant Flash

Others

Other Features Display Port (s): 1 x DisplayPort 1.4

Physical Specification

Expansion Slots PCI

CPU:

1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode




Chipset:

2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)

1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

15μ Gold Contact in VGA PCIe Slot (PCIE1)




M.2 Socket

1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode

1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s &

PCIe Gen3x2 (16 Gb/s) modes*
Form Factor Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm


2oz Copper PCB

Technical Info

Model A620M-HDV/M.2

Warranty Information

Warranty 3-Years

PRODUCT DESCRIPTION


ASRock A620M-HDV/M.2 DDR5 AM5 Micro ATX AMD Motherboard in Bangladesh

The ASRock A620M-HDV/M.2 DDR5 AM5 Micro ATX AMD Motherboard is a reliable and high-performance motherboard designed to support AMD's latest Ryzen 9000, 8000, and 7000 series processors. It offers cutting-edge technology and a compact form factor suitable for a variety of PC builds, making it an ideal choice for gamers, professionals, and enthusiasts in Bangladesh.


Technical Details

The ASRock A620M-HDV/M.2 motherboard features the AMD A620 chipset and supports AMD Socket AM5 processors, ensuring exceptional performance and future-ready compatibility. This Micro ATX motherboard comes equipped with 2 DDR5 DIMM slots, supporting up to 128GB of high-speed memory for enhanced multitasking and gaming. It offers multiple expansion slots, including PCIe 4.0 x16 for GPUs and PCIe 3.0 x1 for additional peripherals. With two M.2 sockets, the motherboard supports both Gen4x4 NVMe SSDs and SATA drives, ensuring lightning-fast storage solutions. Connectivity options include HDMI 2.1 and DisplayPort 1.4 for 4K resolution at 120Hz, along with USB 3.2 Gen1 Type-C and Type-A ports for seamless device integration. Enhanced with 7.1 CH HD Audio powered by Realtek ALC897 and Nahimic Audio, it delivers crystal-clear sound. Built with 2oz copper PCB and 50A Dr.MOS for VCore, it ensures durability and efficient performance.


Availability and Usability

The ASRock A620M-HDV/M.2 DDR5 AM5 Micro ATX AMD Motherboard is readily available at Tech Land BD. It is a versatile motherboard perfect for gamers and professionals seeking to build or upgrade their systems. Its support for DDR5 memory and advanced expansion options make it a future-proof investment. Additionally, its compact Micro ATX form factor ensures compatibility with a wide range of PC cases. Whether you're gaming, working, or creating content, this motherboard delivers the performance and features needed for seamless multitasking. For the best ASRock A620M-HDV/M.2 Price in BD, visit Tech Land BD today.


Highlights

  • Supports AMD Ryzen 9000, 8000, and 7000 series processors.
  • Dual-channel DDR5 memory up to 128GB with overclocking support.
  • Two M.2 sockets for ultra-fast NVMe and SATA SSDs.
  • Multiple USB 3.2 Gen1 ports, including Type-C for modern devices.
  • Durable design with 2oz copper PCB and 50A Dr.MOS power phases.


Grab the ASRock A620M-HDV/M.2 from Tech Land BD Now!

Don't miss out on the ASRock A620M-HDV/M.2 DDR5 AM5 Micro ATX AMD Motherboard available at Tech Land BD. With its cutting-edge features, robust build quality, and support for the latest AMD processors, this motherboard is the ideal choice for anyone looking to build a high-performance PC. Whether you're gaming, editing, or working on demanding applications, this motherboard has you covered. Visit Tech Land BD today to get the best ASRock A620M-HDV/M.2 Price in Bangladesh and elevate your computing experience. Hurry, as stocks are limited!

CUSTOMER REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the ASRock A620M-HDV/M.2 DDR5 AM5 Micro ATX AMD Motherboard Price in Bangladesh 2026 ?

The ASRock A620M-HDV/M.2 Price in BD is 11,500৳ . This ASRock A620M-HDV/M.2 DDR5 AM5 Micro ATX AMD Motherboard Manufacturing by ASRock Comes With 3-Years Warranty & Based on 0 reviews. Tech Land BD Offers you ASRock A620M-HDV/M.2 by 11,500৳ and its regular price is 12,000৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
