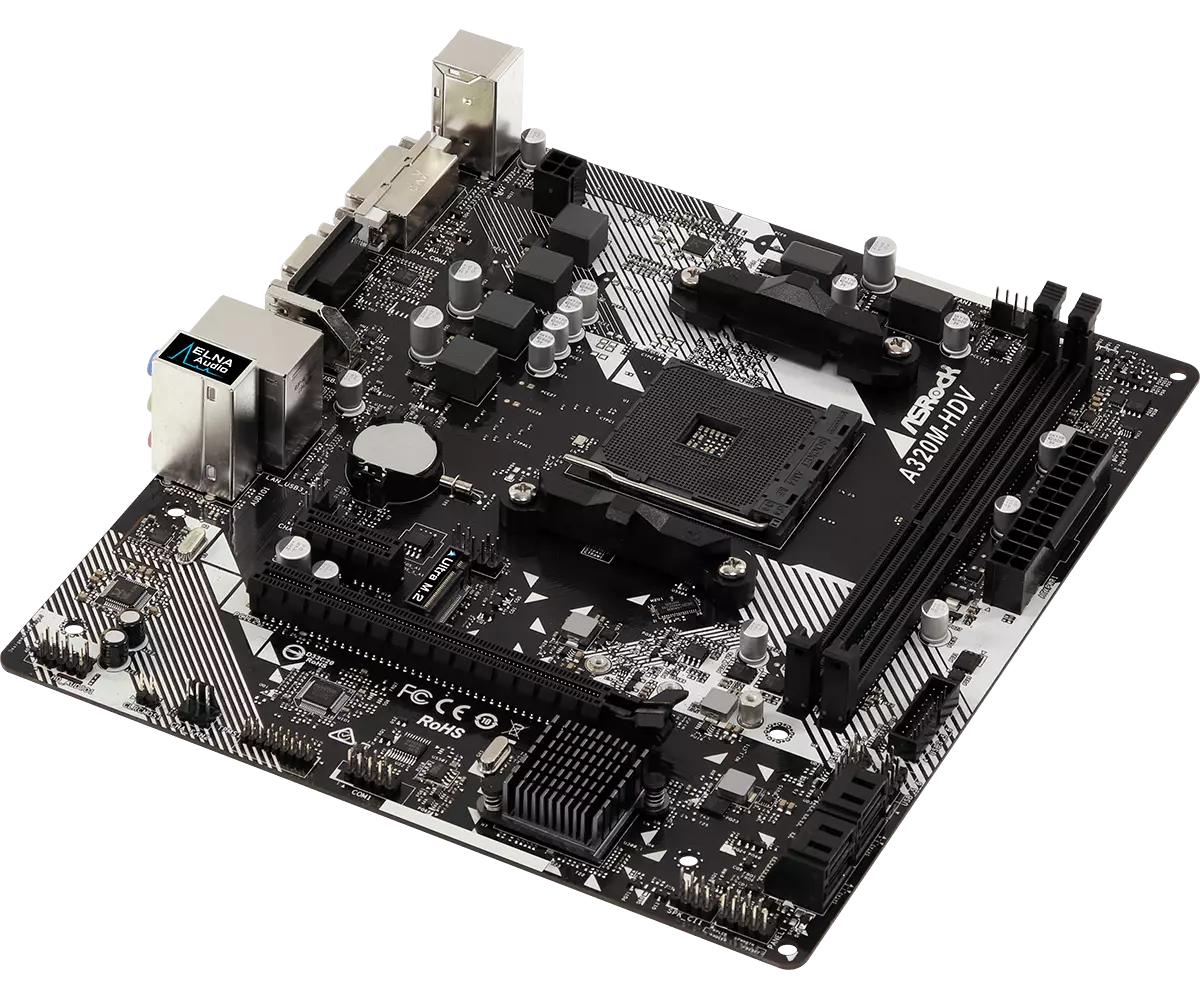

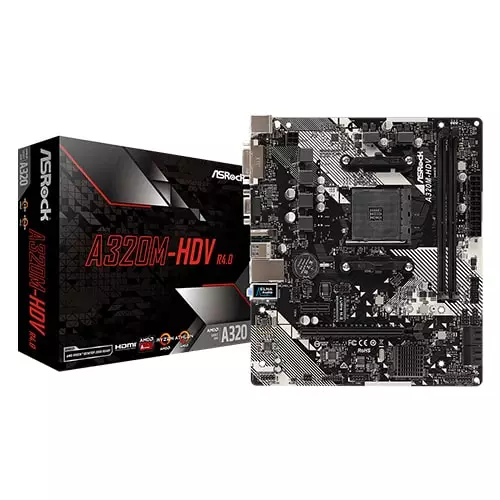

ASROCK A320M-HDV R4.0 AMD Motherboard

ASROCK A320M-HDV R4.0 AMD Motherboard
ASROCK A320M-HDV R4.0 AMD Motherboard
ASROCK A320M-HDV R4.0 AMD Motherboard
-100 % Out Of Stock
ASROCK A320M-HDV R4.0 AMD Motherboard
ASROCK A320M-HDV R4.0 AMD Motherboard
ASROCK A320M-HDV R4.0 AMD Motherboard
ASROCK A320M-HDV R4.0 AMD Motherboard
Stock Status
Out Of Stock
Product ID
9371
Brand
ASRock
Product modelA320M-HDV R4.0
Warranty 3 years
Total Reviews
  • Stock availability is subject to change. Please confirm availability before shopping by calling us.
  • The product image is for illustration purposes only. The actual product may vary in size, color, and layout. No claim will be accepted for an image mismatch.
  • Tech Land BD can change the price of any product at any moment due to the volatile price of the technology.
  • We cannot guarantee that the information on this page is 100% correct. Tech Land BD is not responsible for the results obtained from the use of this information.
Processor
Supported CPU - Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge); - 6 Power Phase design; - Supports CPU up to 105W;
Mainboard
Chipset - AMD Promontory A320
Memory
Memory - Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory* - AMD 7th Gen A-Series APUs support DDR4 2400/2133 non-ECC, un-buffered memory* - Max. capacity of system memory: 32GB** - 15μ Gold Contact in DIMM Slots
Storage
Supported Storage - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with A-Series APU and Athlon 2xxGE series APU)*
Graphics
Graphics - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU; - Integrated AMD Radeon™ R-Series Graphics in A-series APU; - DirectX 12, Pixel Shader 5.0; - Shared memory default 2GB. Max Shared memory supports up to 16GB.; - Three graphics output options: D-Sub, DVI-D and HDMI; - Supports Triple Monitor; - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz; - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz; - Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz; - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required); - Supports HDCP 1.4 with DVI-D and HDMI 1.4 Ports; - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports;
Audio & Microphone
Audio - 7.1 CH HD Audio (Realtek ALC887 Audio Codec); - Supports Surge Protection; - ELNA Audio Caps;
Networking & Connectivity
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s; - Realtek RTL8111H; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE;
Ports
Slots AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode); AMD 7th A-Series APUs - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode); AMD Ryzen series CPUs (Raven Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode); AMD Athlon series CPUs - 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode);

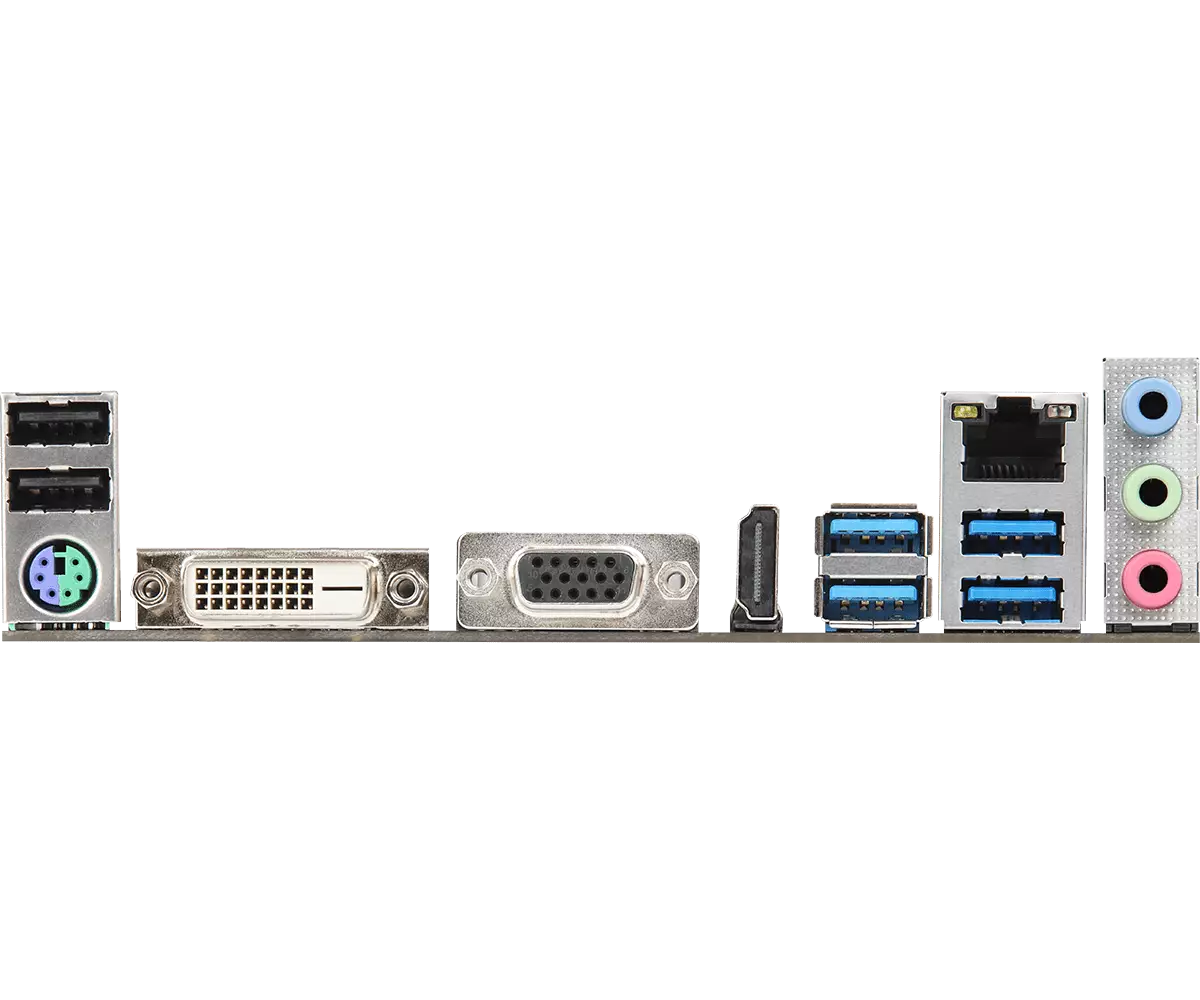

Internal I/O Ports - 1 x COM Port Header; - 1 x TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x CPU Fan Connector (4-pin); - 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin); - 1 x 24 pin ATX Power Connector; - 1 x 4 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection); - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection);
Technical Info
BIOS - 128Mb AMI UEFI Legal BIOS with GUI support; - Supports "Plug and Play"; - ACPI 5.1 compliance wake up events; - Supports jumperfree; - SMBIOS 2.3 support; - DRAM Voltage multi-adjustment;
Physical Specification
Form Factor - Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm; - Solid Capacitor design
Others
Other Features ASRock Super Alloy; - High Density Glass Fabric PCB; - Sapphire Black PCB; ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3);; ASRock Full Spike Protection (for all USB, Audio, LAN Ports); ASRock Live Update & APP Shop;
Warranty Information
Warranty 3 years

A320M-HDV R4.0

●︎ AMD AM4 Socket

●︎ 2 DIMMs, Supports DDR4 3200+(OC)*

●︎ 1 PCIe 3.0 x16, 1 PCIe 2.0 x1

●︎ Graphics Output: HDMI, DVI-D, D-Sub

●︎ 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps

●︎ 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)*

●︎ 6 USB 3.1 Gen1 (2 Front, 4 Rear)

●︎ Realtek Gigabit LAN

●︎ Actual support may vary by CPU.

**2 years warranty.

Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs. Click here for more motherboards.

4K x 2K

Composed by a minimum of 3840 x 2160 pixels, which is twice the horizontal and vertical resolution of the 1080p format.

ASROCK A320M-HDV R4.0

Triple Monitor

ASROCK A320M-HDV R4.0  motherboard

Graphics, graphics, and even more graphics! You've demanded more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.

Solid Capacitor Design

ASROCK

ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure a longer lifetime.

ELNA Audio Caps

 Motherboard

Who says high-quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reducing noise levels significantly and satisfying even the pickiest audiophiles.

Full Spike Protection

ASROCK AMD Motherboard

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop

A320M-HDV R4.0 AMD

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
