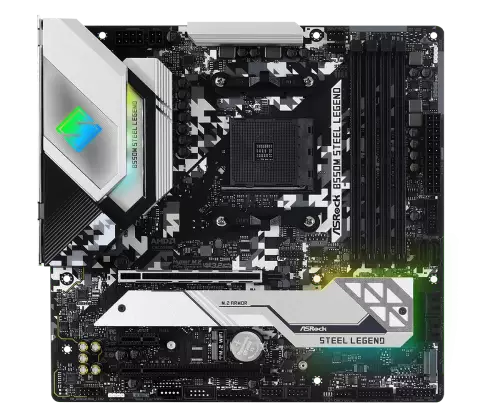

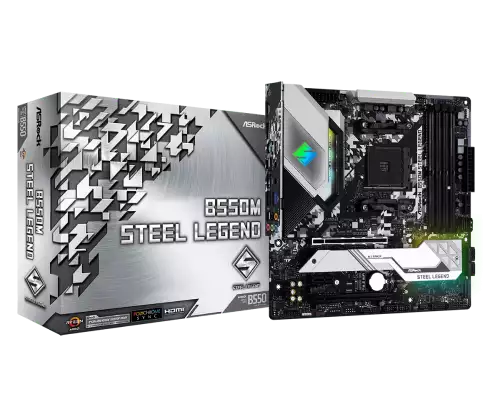

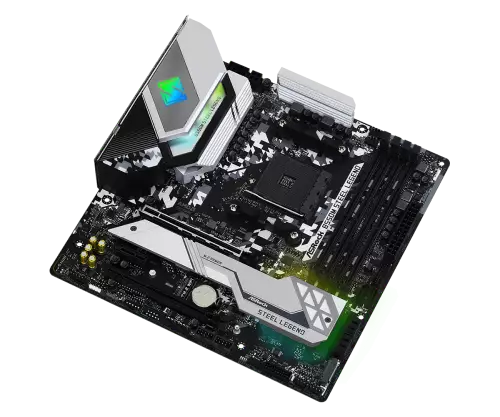

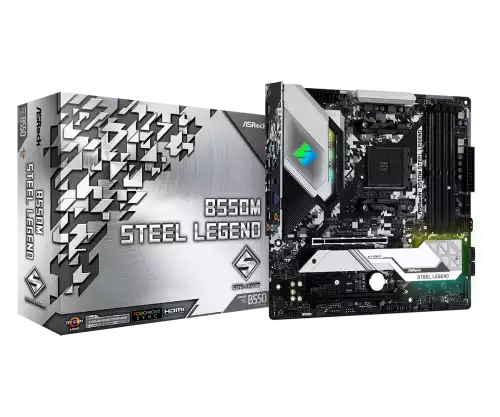

ASRock B550M Steel Legend m-ATX Motherboard

ASRock B550M Steel Legend m-ATX Motherboard
ASRock B550M Steel Legend m-ATX Motherboard
ASRock B550M Steel Legend m-ATX Motherboard
ASRock B550M Steel Legend m-ATX Motherboard
Save: 600৳
ASRock B550M Steel Legend m-ATX Motherboard
ASRock B550M Steel Legend m-ATX Motherboard
ASRock B550M Steel Legend m-ATX Motherboard
ASRock B550M Steel Legend m-ATX Motherboard
ASRock B550M Steel Legend m-ATX Motherboard
  • Offer Price: 16,300৳
  • Price: 16,900৳
  • Stock: In Stock
  • Product Code: 14220
  • Brand: ASRock
  • Model: B550M Steel Legend
  • Warranty: 3 years
16,300৳
16,900৳
Ex Tax: 16,300৳

Description

ASRock B550M Steel Legend MOTHERBOARD

  Unique Feature

ASRock USB 3.2 Gen2

- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)

- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)

ASRock Super Alloy

- XXL Aluminum Alloy Heatsink

- Premium 60A Power Choke

- 50A Dr.MOS

- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)

- Nichicon 12K Black Caps (100% Japan-made high-quality conductive polymer capacitors)

- I/O Armor

- Matte Black PCB

- High-Density Glass Fabric PCB

- 2oz Copper PCB

2.5G LAN

ASRock Steel Slot Gen4

ASRock Full Coverage M.2 Heatsink

ASRock Hyper M.2 (PCIe Gen4x4)

ASRock Ultra USB Power

ASRock Full Spike Protection (for all USB, Audio, LAN Ports)

ASRock Live Update & APP Shop

CPU

- Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors*

- Digi Power design

- 10 Power Phase design

Chipset

AMD B550

Memory

- Dual Channel DDR4 Memory Technology

- 4 x DDR4 DIMM Slots

- AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*

- AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*

- Max. capacity of system memory: 128GB**

- Supports Extreme Memory Profile (XMP) memory modules

- 15μ Gold Contact in DIMM Slots

BIOS

- 256Mb AMI UEFI Legal BIOS with GUI support

- Supports "Plug and Play"

- ACPI 5.1 compliance wake up events

- Supports jumperfree

- SMBIOS 2.3 support

- CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment

Graphics

    - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*

    - DirectX 12, Pixel Shader 5.0

    - Shared memory default 2GB. Max Shared memory supports up to 16GB.**

    - Dual graphics output: Support HDMI and DisplayPort 1.4 ports by independent display controllers

    - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz

    - Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz

    - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC, and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)

    - Supports HDR (High Dynamic Range) with HDMI 2.1

    - Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports

    - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports

    - Supports Microsoft® PlayReady

    Audio

    - 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)

    - Premium Blu-ray Audio support

    - Supports Surge Protection

    - PCB Isolate Shielding

    - Individual PCB Layers for R/L Audio Channel

    - Gold Audio Jacks

    - Nahimic Audio

    LAN

    - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

    - Dragon RTL8125BG

    - Supports Dragon 2.5G LAN Software

    - Smart Auto Adjust Bandwidth Control

    - Visual User-Friendly UI

    - Visual Network Usage Statistics

    - Optimized Default Setting for Game, Browser, and Streaming Modes

    - User Customized Priority Control

    - Supports Wake-On-LAN

    - Supports Lightning/ESD Protection

    - Supports Energy Efficient Ethernet 802.3az

    - Supports PXE

    Slots

    AMD Ryzen series CPUs (Matisse)

    - 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)*

    AMD Ryzen series APUs (Renoir)

    - 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)*


    - 1 x PCI Express 3.0 x1 Slot

    - Supports AMD Quad CrossFireX™ and CrossFireX™

    - 15μ Gold Contact in VGA PCIe Slot (PCIE1)

    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module

    Certifications

    - FCC, CE

    - ERP/EuP ready (ErP/EuP ready power supply is required)

    Storage

    - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*

    - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Renoir)**

    - 1 x M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)**

    Connector

    - 1 x SPI TPM Header

    - 1 x Power LED and Speaker Header

    - 2 x RGB LED Headers*

    - 2 x Addressable LED Headers**

    - 1 x CPU Fan Connector (4-pin)***

    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****

    - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****

    - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)

    - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

    - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)

    - 1 x Front Panel Audio Connector

    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

    - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)

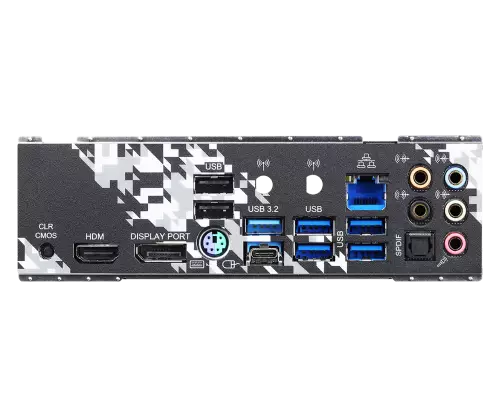

    Rear Panel I/O

    - 2 x Antenna Mounting Points

    - 1 x PS/2 Mouse/Keyboard Port

    - 1 x HDMI Port

    - 1 x DisplayPort 1.4

    - 1 x Optical SPDIF Out Port

    - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)

    - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)

    - 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)

    - 2 x USB 2.0 Ports (Supports ESD Protection)

    - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

    - 1 x Clear CMOS Button

    - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

    Software and UEFI

    Software

    - ASRock Motherboard Utility (A-Tuning)

    - ASRock Dragon 2.5G LAN Software

    - ASRock Polychrome SYNC*

    UEFI

    - ASRock Full HD UEFI

    - ASRock Instant Flash


    *These utilities can be downloaded from ASRock Live Update & APP Shop.

    Support CD

    - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

    Accessories

    - Quick Installation Guide, Support CD

    - 2 x SATA Data Cables

    - 2 x Screws for M.2 Sockets

    Hardware Monitor

    Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans

    - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans

    - Quiet Fan (Auto adjust the chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans

    - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans

    - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, CPU VDD 1.8V

    Form Factor

    - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

    - 2oz Copper PCB

    OS

    - Microsoft® Windows® 10 64-bit

    Warranty

    3 Years Warranty

    ASRock B550M Steel Legend MOTHERBOARD Comes with 03 years Warranty

    ASRock B550M Steel Legend MOTHERBOARD Main Features:

    • Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors
    • 10 Power Phase Design, Dr. MOS
    • Supports DDR4 4733+ (OC)
    • 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi
    • Graphics Output Options: HDMI, DisplayPort
    • AMD CrossFireX™
    • 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
    • 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
    • 2 USB 3.2 Gen2 (Rear Type A+C), 8 USB 3.2 Gen1 (4 Front, 4 Rear)
    • Dragon 2.5G LAN

    ASRock B550M Steel Legend Motherboard Overview:

    Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around the most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure stable and reliable performance.

    STEEL FOREVER

    Get Endless Performance Possibilities with Steel Style, Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure stable and reliable performance.

    Unbeatable Heatsink Armor

    Forged with aluminum alloy heatsink top cover that effectively improves heat dissipation. Underneath its solid strong cover lie two gaming required M.2 Key M sockets for high-speed SSDs.

    Dual M.2 Sockets for SSD

    Hyper M.2 socket that supports PCIe Gen4 x4 while Ultra M.2 socket is capable of running PCIe Gen3 x2 and SATA3 mode.
