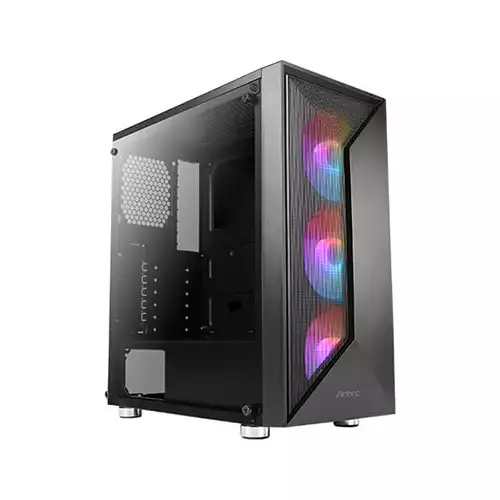

Antec NX320 Gaming Case Overview
Dimensions
| 422 x 215 x 446 mm (DWH)
|
Form Factor
| Mid Tower
|
Materials
| SPCC + ABS
|
Mainboard Support
| ATX, M-ATX, ITX
|
Front Access & Controls
| Power,LED control button, USB3.0 x 1,USB2.0 x 2,MIC/HD-AUDIO
|
Side Panel
| Tempered Glass Side Panel
|
Expansion Slots
| 7
|
Front
| 3 x 120mm |
Top
| 2 x 120mm/2 x 140mm
|
Rear
| 1 x 120mm
|
|
Max GPU Length
| ≤ 355mm
|
Max CPU Cooler Height
| ≤ 160mm
|
Max PSU Length
| ≤ 205mm(with HDD)
≤ 355mm(without HDD)
|
Dust Filter
| Top / Bottom
|
Net Weight
| 4.8kg
|
Gross Weight
| 5.6kg
|
3.5" /2.5"
| 2/2
|
Bringing your gaming world to your desktop
In the tradition of Antec's NX series, this NX320 mid-tower case for ATX, Micro-ATX or Mini ITX motherboards has everything you need to build a machine dedicated to your most intense video game entertainment. The case features a tempered glass side window, six fan slots, RGB lighting and water cooling support. With it, you can enjoy an optimized environment for your components and create the ideal gaming atmosphere for your games in the best conditions.
AN ENVIRONMENT OF CHOICE
With its tempered glass window, the Antec NX320 Medium Tower case offers an ideal view of your setup! This model, designed for ATX, Micro-ATX and Mini ITX motherboards, will accommodate a graphics card up to 355 mm in length, a CPU fan up to 160 mm high and a power supply up to 205 mm long.
On the top, you will find a complete set of connectors with 2 USB 2.0 ports, 1 USB 3.0 port and audio connectors (microphone/headset). Finally, you will have the possibility to install up to 5 2.5" disks or 3 2.5" disks and 2 3.5" disks thanks to the available slots.
OPTIMISED COOLING
For the best performance, efficient cooling is essential. The NX320 has 6fan slots and features addressable RGB lighting on the 3 front fans(3 ARGB pre-installed on the front). To ensure even more efficient and quiet cooling, this model is water cooling compatible and can accommodate a radiator up to 360mm on the front or a 120mm radiator on the back.
MAIN FEATURES :
- Gamer medium tower case
- Tempered glass side window
- ATX, Micro-ATX and Mini ITX motherboard support
- Maximum power supply length: 205 mm
- Maximum fan height: 160 mm
- The maximum length of the graphics card: 355 mm
- 3 x 120mm ARGB fans in front
- 6 fan slots(3 x 120mm ARGB fans included)
- Connectivity: 2 x USB 2.0, 1 x USB 3.0,
audio (microphone+headset), RGB control button - Number of bays: 3 x 2.5" and 2 x 2.5/3.5"
- Watercooling compatibility
- Dimensions: 422 x 215 x 446 mm
- Weight : 4.8 kg
