Zhiyun-Tech CRANE M3 Gimbal Specification
|
Battery | - Battery Runtime Max: 8h (lab data)
- Charging Time 2h (lab data)
|
Others | - Following Deviation in Static State Max: ± 0.04°
- Min: ± 0.01°
- Following Deviation in Motion State Max: ± 0.3°
- Standard: ± 0.1°
- Min: ± 0.05°
- Tilt Mechanical Range 309°
- Roll Mechanical Range 333°
- Pan Mechanical Range 360°
- Operation Voltage Max: 11.1v
- Min: 9.8v
- Operation Current Max: 4700mA
- Min: 130mA
- Output 5V, 1A
|
Weight And Size
| - Net Weight ~700g/unit
- Product Size (W*D*H) 208*102*290mm
|
|

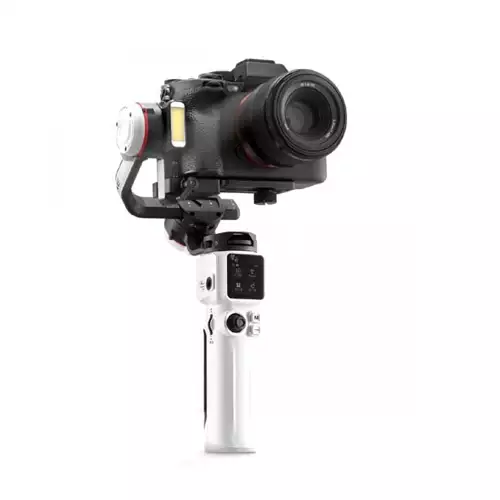

Zhiyun Crane M3 Gimbal Stabilizer
Portable yet professional with compatibility – That’s what describes CRANE-M3 the best. Compact body design and optimized axis arm structure deliver a better gripping and user experience. With the brand new dual-color temperature lighting and professional audio solution, CRANE-M3 offers an outstanding filming experience without extra equipment.
Features:
- Compact structure for mounting with multiple devices
- 1.22” Touch screen for single-handed operation
- Built-in dual color temperature fill light
- Upgraded quick release system 4.0
- All-New Sleek Design
- Multi-functional expansion base and professional audio solution
- PD 12W fast charging
Compact Size But Not Compromised Performance
Get rid of the hefty body, Zhiyun Crane M3 is as tiny as a bottle of water. But the upgraded motors with strong torque guarantee stable movements and filming with cameras in different sizes.
Light The Dark And Sharpen The Image
Pioneering built-in LED fill light for reducing image noise. Shooting in dark or dim light is favored by the adjustable color temperature and brightness, which sharpens the image.
Color Temperature Level: 2600-5400K, Brightness: Warm Light 650-750, White Light 850-950, CRI 90+
Touch Screen Does More Than You Think
All-new full-color touch screen with advanced UI design and intuitive interface. The gimbal is tiny and portable like a smartphone that you can operate with just one hand at ease.
3-Sec Super Quick Release
Upgraded quick release system with general quick release plate for easier balancing, assembly, and disassembly. Locks with transverse palm-rejection design to protect cameras while ensuring efficiency.
Charge Fast, And Faster
PD Fast Charge, Type-C charging port and 1150mAh battery capacity allow you to enjoy the following: Charge only 2 hours but work for 8 hours, using the gimbal while charging via power bank.
