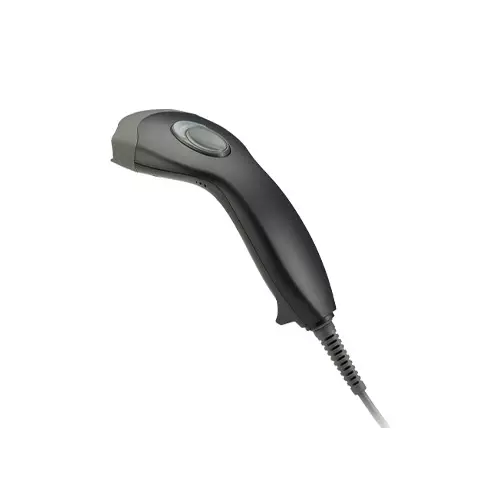

Zebex Z-3100 Linear Image Handheld Scanner
Zebex Z-3100 Linear Image Handheld Scanner

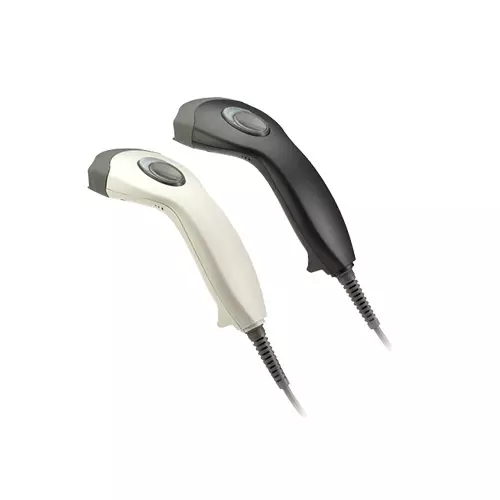

Zebex Z-3100 Linear Image Handheld Scanner - 1

Zebex Z-3100 Linear Image Handheld Scanner

0 Reviews
Stock : Discontinued
PID : P00025065017
SKU : Z-3100
Brand : Zebex
Model : Z-3100
Warranty : 1 Year
  • Light Source 617 Nm Visible LED
  • Optical System Linear CCD Array
  • Microprocessor 32-Bit
  • Scan Rate 330 Scans Per Second

DESCRIPTION

Best Zebex Z-3100 Linear Image Handheld Scanner Overview

Technical Information

Light Source
617 nm visible LED
Optical System
Linear CCD array
Microprocessor
32-bit
Scan Rate
330 scans per second
Scan Angle
42°
Print Contrast
30% @ UPC/EAN 100%
Indicator
Blue LED
EMC
CE & FCC DOC compliant, VCCI, BSMI
Depth of Field
0 – 300 mm (UPC/EAN 100%, PCS=90%)
Power Information
Input Voltage
5 VDC ±10%
Operating Current
110 mA typical
Physical Information

Dimensions (H x W x L)
152.3 × 64.4 × 104.9 mm (device only)
Weight
84 g (device only)

Best Zebex Z-3100 Linear Image Handheld Scanner in bd

The Zebex Z-3100 Linear Image Handheld Scanner is a high-performance scanning device that offers fast and accurate barcode scanning. With its 617 nm visible LED light source and linear CCD array optical system, it can scan barcodes at a rate of 330 scans per second, making it ideal for high-volume applications. The scanner has a wide scan angle of 42 degrees, allowing it to capture codes from various angles with ease. It also boasts a print contrast of 30% at UPC/EAN 100%, ensuring accurate scanning of even poorly printed or damaged barcodes. The scanner's blue LED indicator provides users with visual feedback on successful scans, and it is compliant with EMC regulations such as CE & FCC DOC, VCCI, and BSMI. With a depth of field ranging from 0 to 300 mm (UPC/EAN 100%, PCS=90%), the Z-3100 scanner is suitable for scanning products of different sizes, including large items like boxes and pallets. The scanner is lightweight at only 84 g (device only), making it easy to carry around and use for extended periods. Its compact size, measuring 152.3 × 64.4 × 104.9 mm (device only), makes it convenient to store in small spaces when not in use.
