VIEWSONIC TD1655 PORTABLE TOUCH MONITOR Specification
DISPLAY
| - Display Size (in.): 16
- Viewable Area (in.): 15.6
- Panel Type: IPS Technology
- Resolution: 1920 x 1080
- Resolution Type: FHD
- Static Contrast Ratio: 800:1 (typ)
- Dynamic Contrast Ratio: 50M:1
- Light Source: LED
- Brightness: 250 cd/m² (typ)
- Colors: 262K
- Color Space Support: 6 bit true
- Aspect Ratio: 16:9
- Response Time (Typical GTG): 6.5ms
- Response Time (GTG w/OD): 6.599ms
- Response Time (Typical Tr+Tf): 30ms
- Viewing Angles: 178º horizontal, 178º vertical, CR>5; 170º horizontal, 170º vertical, CR>10
- Backlight Life (Hours): 15000 Hrs (Min)
- Curvature: Flat
- Refresh Rate (Hz): 60
- Blue Light Filter: Yes
- Color Gamut: NTSC: 45% size (Typ), sRGB: 64% size (Typ)
- Pixel Size: 0.179 mm (H) x 0.179 mm (V)
- Touch Screen: Projected Capacitive, 10-point multi-touch
- Surface Treatment: Glossy w/ anti-finger print, Hard Coating (≧6H)
- Cover Glass Thickness: 0.8mm
|
Compatibility
| - PC Resolution (max): 1920x1080
- Mac® Resolution (max): 1920x1080
- PC Operating System: Windows 10 certified; macOS tested
- Mac® Resolution (min): 1920x1080
|

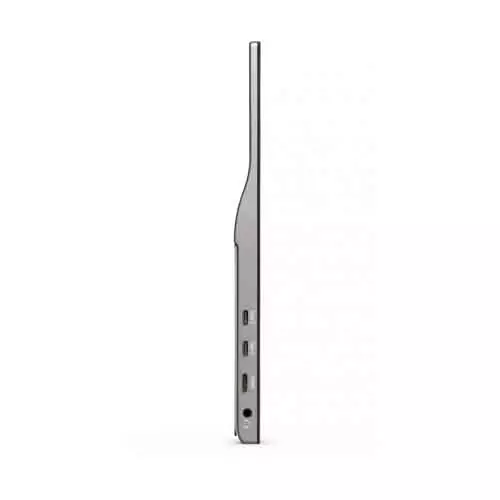

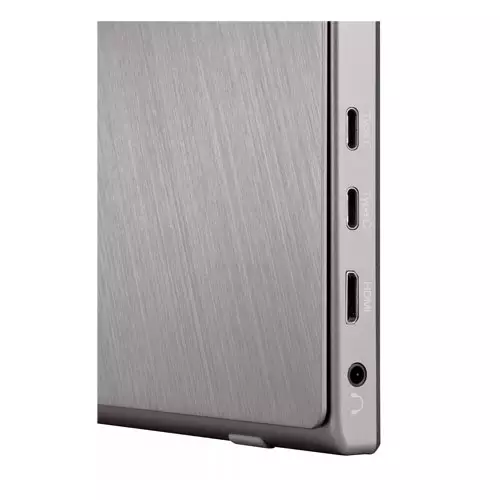

Connector
| - USB 3.1 Type C: 2
- 3.5mm Audio Out: 1
- Mini HDMI: 1
- Power in: External power adapter
|
Audio
| - Internal Speakers: 0.8Watts x2
|
Power
| - Eco Mode (Conserve): 6W
- Eco Mode (optimized): 6.9W
- Consumption (typical): 8W
- Consumption (max): 8.3W
- Voltage: AC 100-240V, 50/60 Hz
- Stand-by: 0.5W
- Power Supply: External
|
Controls
| - Physical Controls: Up, Right, Down, Left, Power
- On-Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
|
Operating Conditions
| - Temperature: 32°F to 104°F (0°C to 40°C)
- Humidity (non-condensing): 20% to 90%
|
Input Signal
| - Frequency Horizontal: 15 ~ 82KHz
- Frequency Vertical: 50 ~ 75Hz
|
Video-Input
| - Digital Sync: TMDS - mini HDMI (v1.4), Micro-Packet - Type C
|
Ergonomics
| - Tilt (Forward/Back): 20º / 60º
|
Weight (imperial)
| - Net (lbs): 2.1
- Net Without Stand (lbs): 2.1
- Gross (lbs): 5.1
|
Weight (metric)
| - Net (kg): 1
- Net Without Stand (kg): 1
- Gross (kg): 2.3
|
DIMENSIONS (IMPERIAL) (WXHXD)
| - Packaging (in.): 17.3 x 11.3 x 3.5
- Physical (in.): 14 x 8.8 x 0.6
- Physical Without Stand (in.): 14 x 8.8 x 0.6
|
DIMENSIONS (METRIC) (WXHXD)
| - Packaging (mm): 440 x 288 x 89
- Physical (mm): 355 x 223 x 16
- Physical Without Stand (mm): 355 x 223 x 16
|
| Warranty | |
VIEWSONIC TD1655 PORTABLE TOUCH MONITOR in Bangladesh

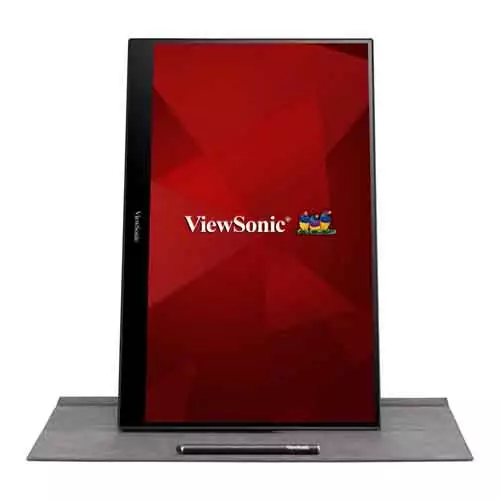

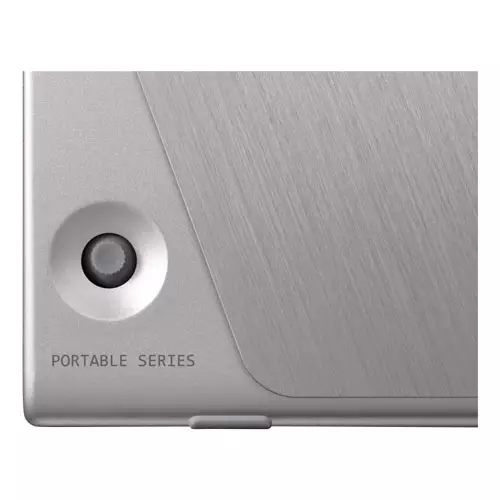

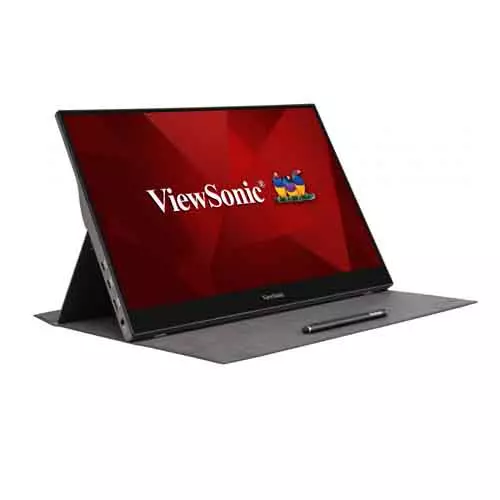

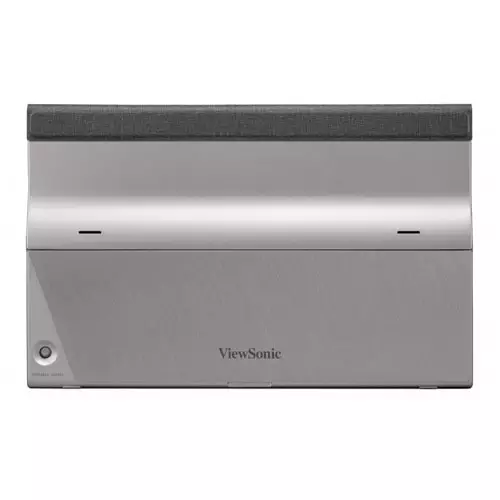

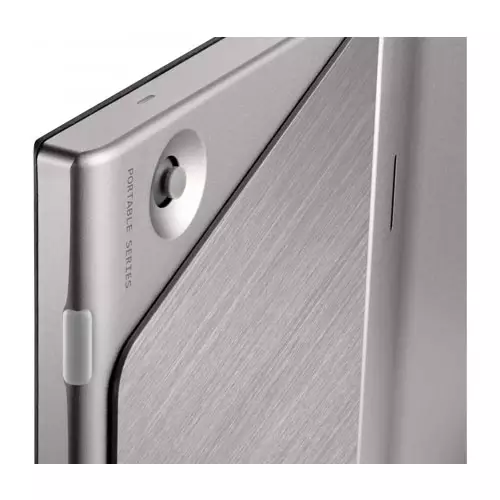

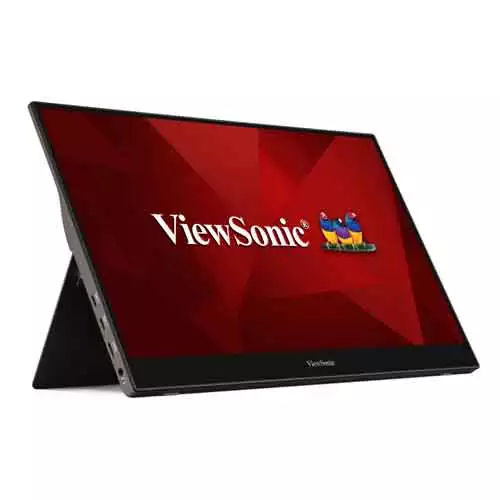

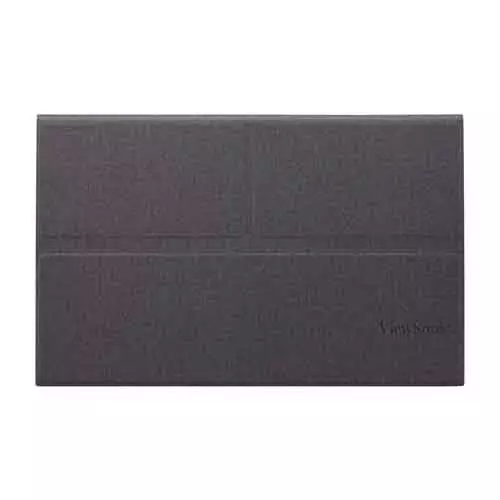

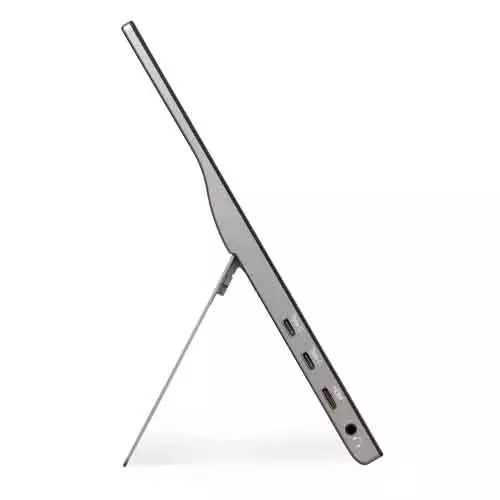

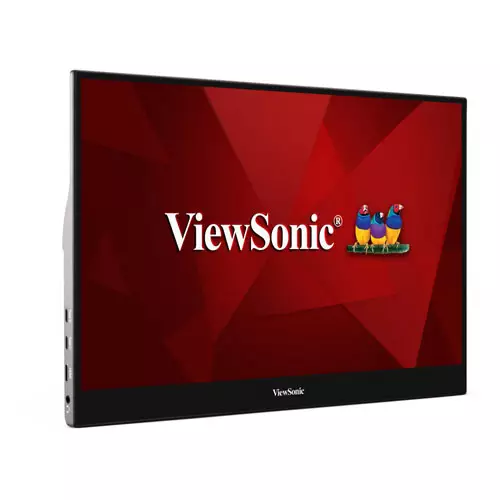

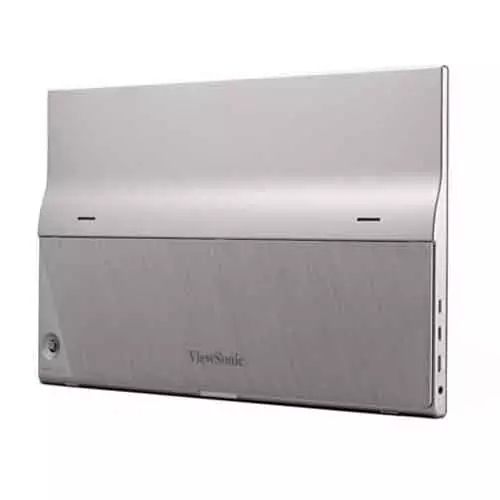

The ViewSonic TD1655 is a portable 16” Full HD touch monitor perfect for overcoming one-screen limitations outside the office. Extend the screen from phones, tablets, or laptops for mobile work, one-on-one presentations, or leisure entertainment. The two universal USB Type C connectors provide a one-cable solution for audiovisual, power, and touch signal transmission. The adjustable wide stand and pivot-able display will support your working angles. With the anti-slip cover, stainless case, aluminum stand, and 6H hardness screen, reliability is embodied in the design.
