ViewSonic EP5542T Digital ePoster Specification
|
Display
| - Panel Size: 55"
- Type/Tech: TFT LCD (VA type,DLED Backlight)
- Display Area (mm): 1209.6 (H) * 680.4 (V)
- Aspect Ratio: 9:16
- Native Resolution: 2160 x 3840
- Colors: 1.07B
- Brightness: 450 nits (typ.)
- Contrast Ratio: 1300:1 (typ.)
- Response Time: 9 ms (typ. G to G)
- Viewing Angles: H = 178, V = 178 typ.
- Backlight Life: 30,000 Hours Typ.
- Surface Treatment: 7H Tempered Glass
- Orientation: Portrait
|
Touch
| - Type/ Tech: IR Recognition
- Touch Resolution: 32768 x 32768
- Touch Point: 10 Points
|
INPUT
| - HDMI: (2.0) x 3
- RGB / VGA: x1
- DisplayPort: (1.2) x 1
- Audio: x1 PC audio(3.5 mm)
- RS232: x1
|
OUTPUT | - Audio: x1 (Earphone out)
- SPDIF: x1
|
LAN
| |
USB | - Type A: x3 (2.0)
- Type B: x2 (for touch module)
|
SPEAKERS | |
COMPATIBILITY | - RGB PC/HDMI PC: 1920x1080 @60Hz
- HDMI: 2160 x 3840 @60Hz
- DisplayPort: 2160 x 3840 @60Hz
|
Android Version
| |
Multimedia
| - Image: JPG, BMP, PNG, Video: MP4, MOV, MKV, DAT, MPG, MPEG, AVI, TS, WMV,RM,RMVB, Audio: MP3,WAV,AAC
|
Bundle Software
| |
Power
| - Voltage: 100-240VAC +/- 10% Wide Range
- Consumption: Normal 126 W, Max 149 W (max.), < 0.5W (Off)
|
OPERATING CONDITIONS
| - Temperature (º C): 0°C to 40°C
- Humidity: 20% ~ 80% non-condensing
|
DIMENSIONS (W x H x D)
| - Physical (inch / mm): 30.26 x 73.62 x 17.72 in/768.5 x 1870 x 450 mm
- Packaging (inch / mm): 38.19 x 80.08 x 23.98 in/970 x 2034 x 609 mm
|
WEIGHT
| - Net (lb / kg): 138.23 lbs/62.7 kg
- Gross (lb / kg): 164.69 lbs/74.7 kg
|
REGULATIONS
| - cTUVus, FCC, Energy Star, CE, CB, RoHS, ErP, EEI, WEEE, BSMI
|
PACKAGE CONTENTS
| - 1. Power Cord
- 2. Remote control with battery
- 3. Quick Start Guide
- 4. Key
|
Warranty | |

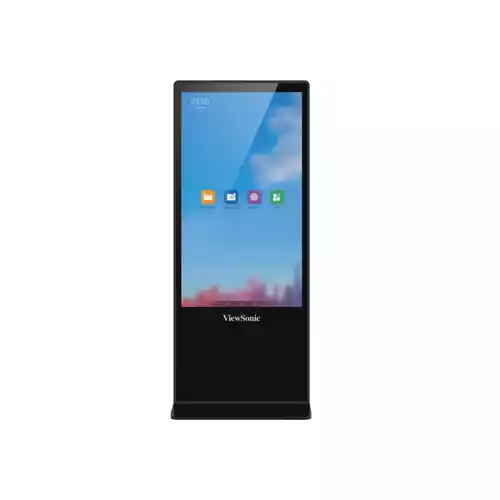

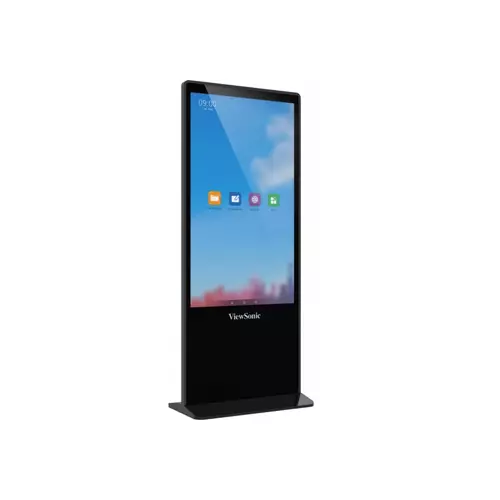

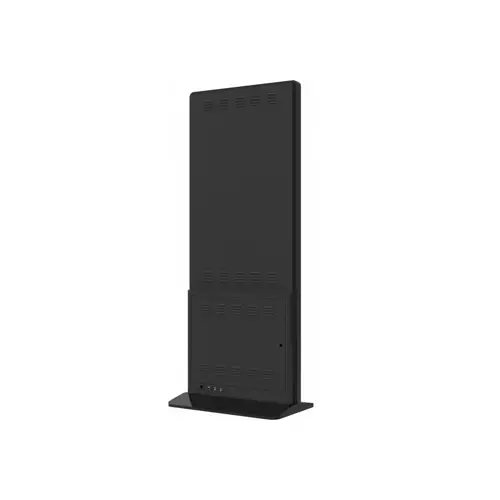

VIEWSONIC EP5542T 55 INCH 4K MULTI-TOUCH DIGITAL EPOSTER DISPLAY
The ViewSonic EP5542T is a 55-inch digital ePoster display that boasts a native 4K resolution of 2160 x 3840 pixels, providing crisp and clear visuals. The TFT LCD panel with VA technology and DLED backlight offers a contrast ratio of 1300:1 and a brightness of 450 nits for vibrant colors and deep blacks in all lighting conditions. The display has a 9:16 aspect ratio and a viewing angle of 178 degrees both horizontally and vertically. The screen is protected by 7H tempered glass, making it durable and resistant to scratches. The touchscreen features Infrared (IR) recognition technology that allows for up to 10-point touch input with high accuracy and precision. The touch resolution is 32768 x 32768, ensuring that every touch is detected and registered correctly. In terms of connectivity, the display comes equipped with multiple inputs like HDMI, VGA, DisplayPort, audio jack, and USB ports for easy integration with various devices. The EP5542T also supports multimedia playback of images, videos, and audio files in various formats. The display bundle software includes Revel Digital and SureMDM, which allows users to remotely manage and control the content displayed on the device. The ViewSonic EP5542T is energy efficient, with a maximum power consumption of 149W and consumes less than 0.5W when turned off. The display is designed to be mounted in portrait orientation and comes with a 1-year warranty. The ViewSonic EP5542T has been certified by several regulatory bodies, including cTUVus, FCC, Energy Star, CE, CB, RoHS, ErP, EEI, WEEE, and BSMI. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of Viewsonic Signage available at Techland BD is well recognized. The large selection of Signage available at Techland BD is well recognized.
