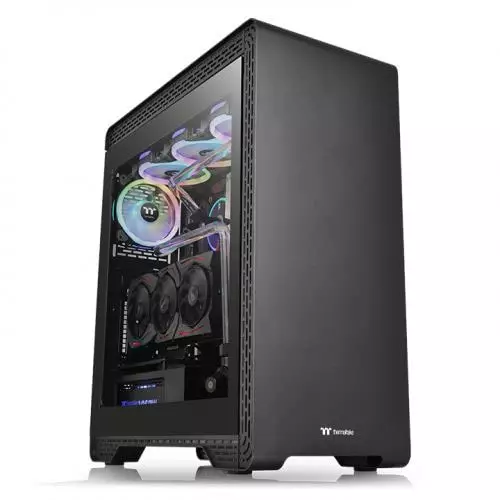

Thermaltake S500 Tempered Glass Mid-Tower ATX Casing
Thermaltake S500 Casing
S500 TG Mid-tower case comes with one tempered glass panel on the left, one pre-installed 140mm front fan and one 120mm rear fan, supporting motherboards up to ATX. Click here for more casing for you PC..
| Specification: |
●︎ CASE TYPE: Middle Tower ●︎ DIMENSION (H X W X D): 565 x 240 x 500 mm ●︎ NET WEIGHT: 15.04 kg ●︎ SIDE PANEL: 4mm Tempered Glass x 1(Left) ●︎ COLOR: Exterior & Interior : Black ●︎ MATERIAL: SPCC ●︎ EXPANSION SLOTS: 8 ●︎ MOTHERBOARDS: 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) ●︎ I/O PORT: USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1, Reset Button x 1 ●︎ PSU: Standard PS2 PSU (optional) |
COOLING SYSTEM ●︎ Rear: 120 x 120 x 25 mm fan ●︎ Front :140 x 140 x 25 mm fan ●︎ 2.5” x 2 or 3.5”x 2 (HDD Rack) ●︎ 2.5”x 1(HDD Bracket) ; 2.5” x 2 or 3.5” x 1(HDD Bracket) |

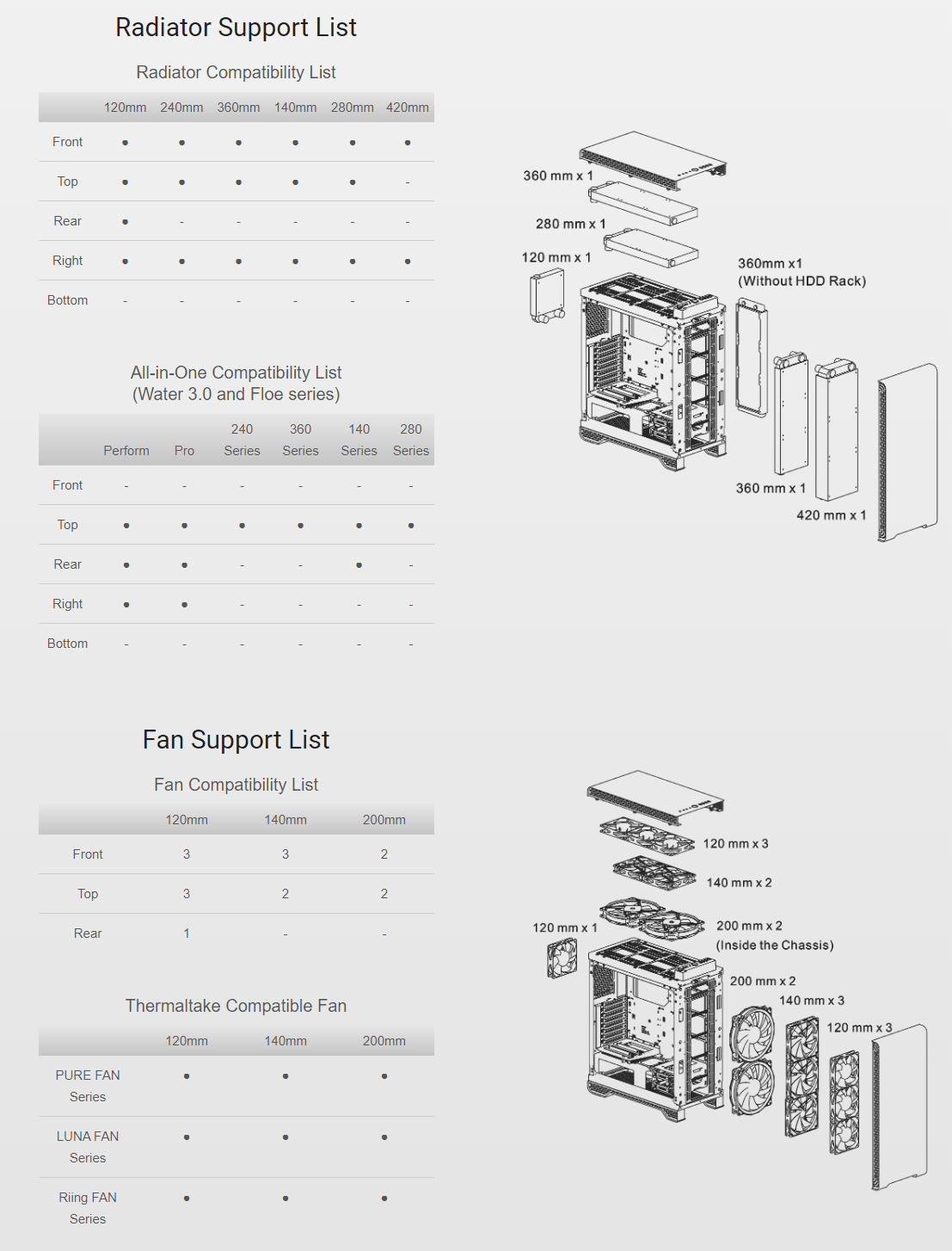

FAN SUPPORT ●︎ Front:3 x 120mm, 3 x 140mm, 2 x 200mm ●︎ Top:3 x 120mm, 2 x 140mm, 2 x 200mm ●︎ Rear:1 x 120mm |
RADIATOR SUPPORT ●︎ Front:1 x 360mm, 1 x 420mm ●︎ Top:1 x 280mm, 1 x 360mm ●︎ Rear:1 x 120mm ●︎ Right:1 x 360mm (Without HDD Rack) |
CLEARANCE ●︎ CPU cooler height limitation: 172mm ●︎ VGA length limitation: 282mm(With HDD Rack) 400mm(Without HDD Rack) ●︎ PSU length limitation: 220mm |
| Related Video: |
Superior Hardware and Liquid Cooling Support
The S500 TG has outstanding expandability. It can support a CPU cooler with a maximum height of 172mm, dual expansion slot VGA of up to 400mm in length without an HDD rack, and a power supply with a length of up to 220mm. Optimized for excellent cooling capability with one 140mm exhaust front fan and one 120mm rear fan preinstalled, S500 TG is able to house up to three 140mm or two 200mm front fans, up to two 200mm fans on top, and a radiator up to 360mm on top and 420mm at the front to allow users to build their desired high-end system.
Patented Rotational PCI-E 8 Slots Design
With Patented Rotational PCI-E slots, you can choose the way you want to display graphics cards vertically which helps you gain flexible space for system..

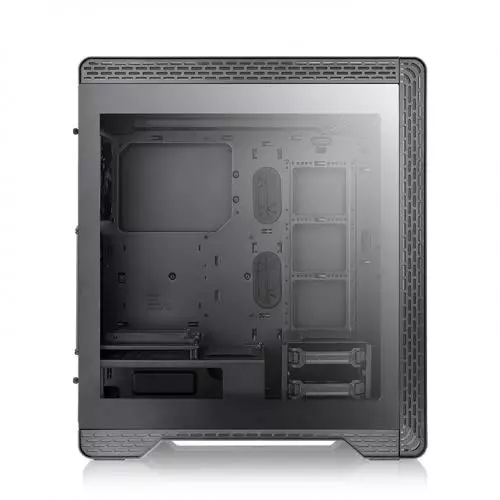

Tempered Glass Window
The 4mm tempered glass window on the side of the S500 TG is built to be more durable, scratch-resistant, and transparent for an advanced view of your hardware.
|
