Thermaltake A500 Aluminum Tempered Glass Edition Mid Tower Casing

●︎ CASE TYPE: Mid Tower

●︎ DIMENSION (H X W X D): 560 x 236 x 510 mm

●︎ NET WEIGHT: 14.82 kg

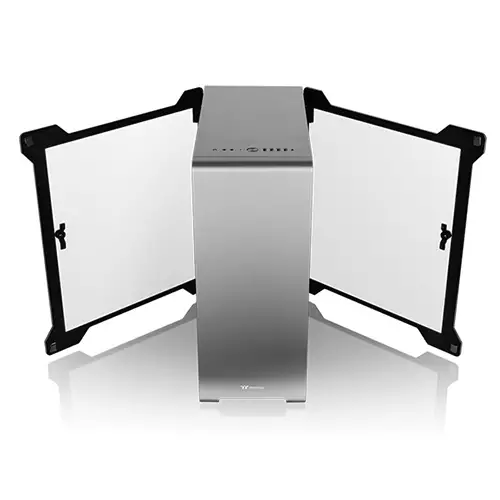

●︎ SIDE PANEL: 4mm Tempered Glass x 2 (Left & Right)

●︎ COLOR: Exterior: Space Gray; Interior : Black

●︎ MATERIAL: Aluminum & SPCC

●︎ EXPANSION SLOTS: 8 + 2

●︎ MOTHERBOARDS: 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)

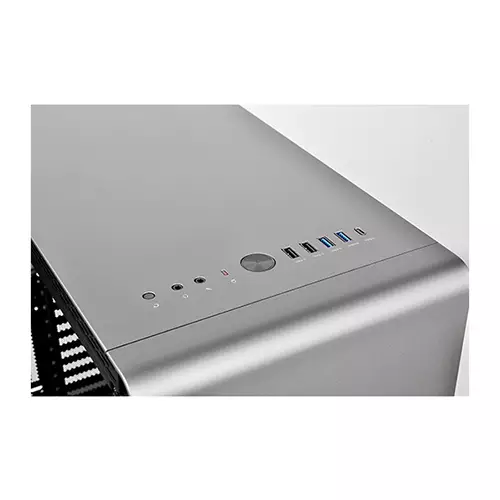

●︎ I/O PORT: USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1, Type-C x 1

●︎ PSU: Standard PS2 PSU (optional)

COOLING SYSTEM

●︎ Front (intake) : 120 x 120 x 25 mm fan (1000rpm, 22dBA) x 2

●︎ Rear (exhaust) :120 x 120 x 25 mm fan (1000rpm, 22dBA) x 1

●︎ 2.5” x 2 or 3.5”x 2 (HDD Rack)

●︎ 2.5”x 1(HDD Bracket) ; 2.5” x 2 or 3.5” x 1(HDD Bracket)

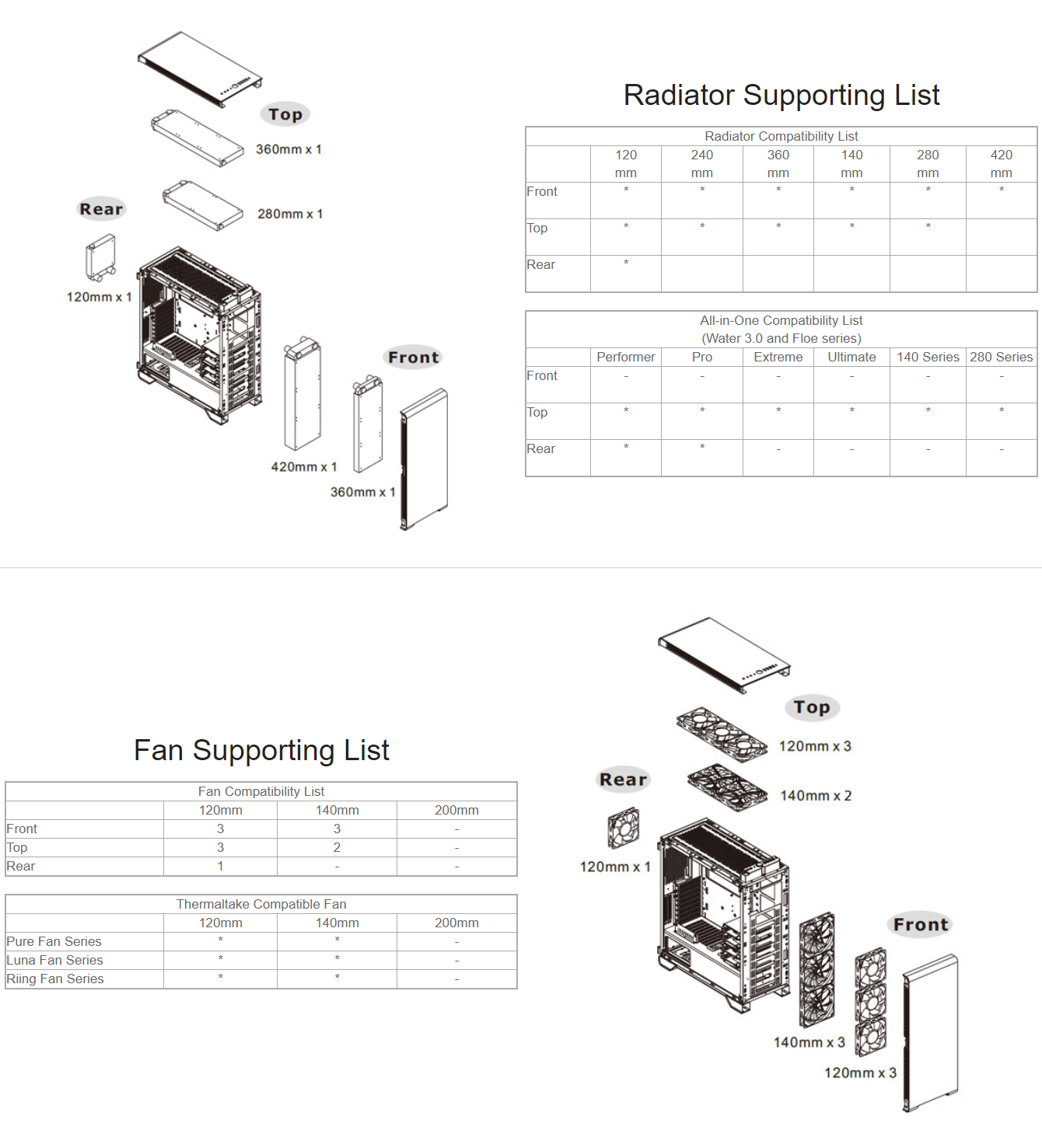

FAN SUPPORT

●︎ Front:3 x 120mm , 3 x 140mm

●︎ Top:3 x 120mm , 2 x 140mm

●︎ Rear:1 x 120mm

RADIATOR SUPPORT

●︎ Front:1 x 360mm , 1 x 420mm

●︎ Top:1 x 360mm , 1 x 280mm

●︎ Rear:1 x 120mm

●︎ Right:1 x 360mm (Without HDD Rack)

CLEARANCE

●︎ CPU cooler height limitation: 160mm

●︎ VGA length limitation: 295mm(with HDD rack)

420mm(without HDD rack)

●︎ Suggested VGA thickness up to 40mm(2-slot reference card standard) with 7mm space for ventilation if extending for VGA card.

●︎ PSU length limitation: 220mm
