Thermaltake View 71 Tempered Glass Edition Full Tower Gaming Chassis
EMI Start From*
| Thermaltake View 71 Tempered Glass Edition Tower Casing |
| Specifications: | SERIES: View CASE TYPE: Full Tower NET WEIGHT: 18.9 kg / 41.66 lb SIDE PANEL: 5mm Tempered Glass x 4(Left & Right & Front & Top) COLOR: Exterior & Interior : Black MATERIAL: SPCC EXPANSION SLOTS: 8+2 MOTHERBOARDS: 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13”(E-ATX) I/O PORT: USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1 PSU: Standard PS2 PSU (optional) |
| DIMENSION (H X W X D): | 592 x 274 x 577 mm (23.3 x 10.8 x 22.7 inch) |
| COOLING SYSTEM: | Rear (exhaust) : 140 x 140 x 25 mm Riing LED Blue fan (1400rpm, 28dBA) (1000rpm, 22 dBA with LNC) Front (intake) : 140 x 140 x 25 mm Riing LED Blue fan (1400rpm, 28dBA) (1000rpm, 22 dBA with LNC) |
DRIVE BAYS: -ACCESSIBLE -HIDDEN | 2.5” x 4 or 3.5”x4(HDD Rack) 2.5”x 6 or 3.5” x 3 |
| FAN SUPPORT: | Front: 3 x 120mm , 2 x 140mm Top: 3 x 120mm , 3 x 140mm Rear: 1 x 120mm, 1 x 140mm Bottom: 2 x 120mm |
| RADIATOR SUPPORT: | Front: 1 x 360mm , 1 x 420mm Top: 1 x 360mm , 1 x 420mm Rear: 1 x 120mm, 1 x 140mm Right: 1 x 360mm, 1 x 420mm Bottom: 1 x 240mm |
| CLEARANCE: | CPU cooler height limitation: 190mm VGA length limitation: 310mm(With HDD Rack) 410mm(Without HDD Rack) PSU length limitation: 220mm (Without Bottom Fan) |
Thermaltake View 71 Tempered Glass Edition Tower Casing Overview

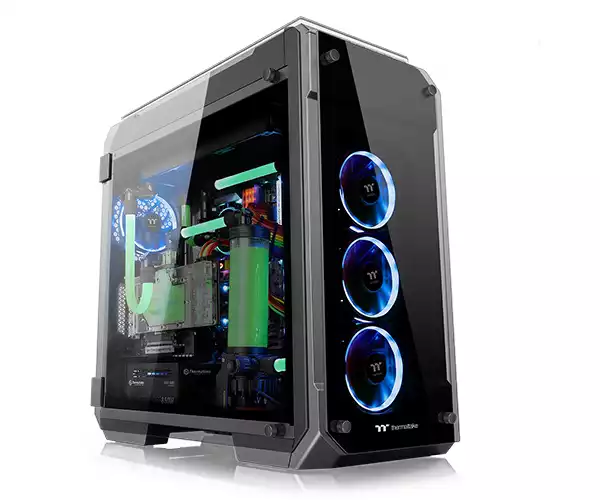

Thermaltake View 71 Tempered Glass Edition Tower Casing Designed to expand the legacy of the View Series lineup, the Thermaltake View 71 Tempered Glass Edition Tower Casing features unrivaled cooling support and expandability surrounded in tempered glass for a one of a kind view. Thermaltake View 71 Tempered Glass Edition Tower Casing Swing open full window tempered glass panels for easy access with all panels properly spaced for optimal airflow. The Thermaltake View 71 Tempered Glass Edition Tower Casing is Preinstalled with two 140mm Riing Blue fans, Vertical GPU mount and 3-Way radiator support for today’s PC hardware demands, the only limitation is your imagination.

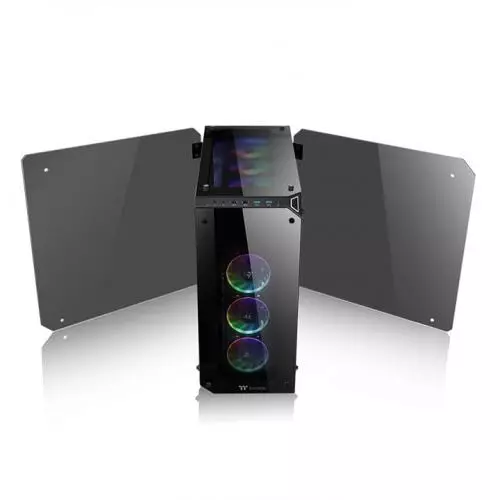

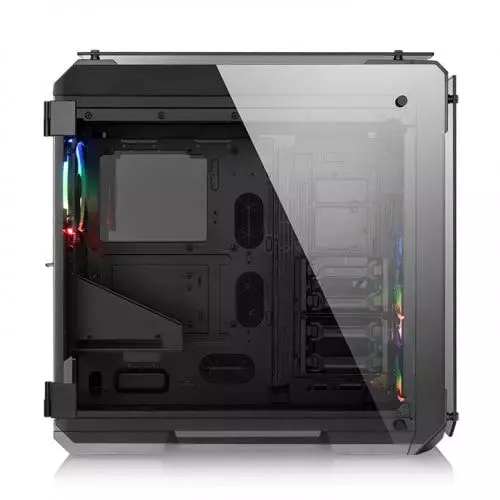

Four-Sided 5mm Thick Tempered Glass Panels with Swing Door Design
Premium-quality 5mm thick tempered glass guarantees the durability of the window and adds overall strength to the chassis. Swing Doors on either side allows users to demonstrate their DIY spirit and enjoy the ultimate internal component visibility. Take on easy to install building with a fully modular design and easy removal of swing door for full access.
Tool-Free Installation
Innovative 3.5” and 2.5” tool-free drive bay design minimizes the hassles of installation/removal, allowing users to freely interchange the 3.5” and 2.5” storage drives to secure and store with ease.
Riser GPU Support Bracket
Specially designed for dual GPU placement options, the View 71 TG Edition has the support for vertical graphic card layout with dual PCI-E slots design. Integrated riser GPU support bracket not only prevents the graphic card from sagging, but also helps to reduce the weight on the motherboard PCI-E slots.
Thermaltake TT Premium PCI-E 3.0 Extender (Optional) – Supports a wide range of GPU solutions with ultra-excellent quality. Features like, extreme high-speed cable with highly-routable design, EMI shielding with conducting polymer are crafted for meeting the most demanding system. Available in 300mm, 600mm and 1000mm length.
Vertical Radiator View (VRV)
Turn the tides on traditional radiator mounting and bring out the glorious view of custom loop or all-in-one radiator applications with vertical radiator viewing. Supporting proper placement for 120mm and 140mm radiator applications up to 420mm in length, gain more compatibility when pairing up both CPU and GPU cooling solutions. Take on even more with custom loop options for enthusiast-grade cooling, fitment, and flow.
AIO/DIY Liquid Cooling Capable
The Thermaltake View 71 Tempered Glass Edition Tower Casing features its roomy installation space for advanced AIO/DIY liquid cooling components. The case is natively supported for all types of AIO liquid cooling solutions. The Thermaltake View 71 Tempered Glass Edition Tower Casing has the capability to house up to triple 420mm DIY liquid cooling radiator fitment and up to 360mm AIO liquid coolers. Most importantly, the Thermaltake View 71 Tempered Glass Edition Tower Casing design is optimized for providing users a quick way to access the drain valve without having to turn around the entire PC when evacuating coolant from the loop.
Advanced Ventilation
With wide top-to-bottom side ventilation grills, the Thermaltake View 71 Tempered Glass Edition Tower Casing maximizes airflow with two built-in 140mm Riing Blue fans. Including options for up to three 120mm or two 140mm front fans, combined with two bottom mount 120mm fan locations for maximum fan space selection. Dissipate heat properly with one rear fan and three sectional top mounts to manage proper airflow in and out.
Thermaltake Riing 14 LED Blue – A 140mm high-static pressure fan with a patented blue LED ring.
| ||||||||||||||||||||||||
| ||||||||||||||||||||
