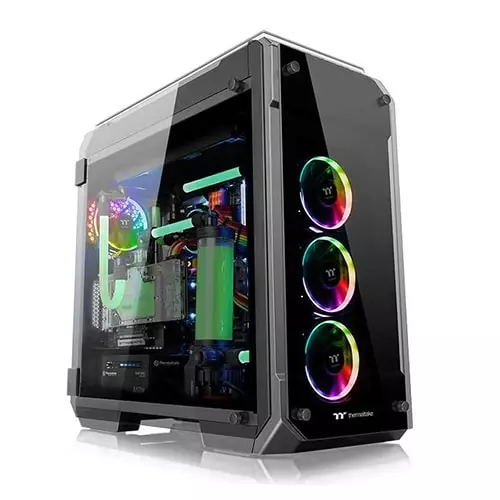

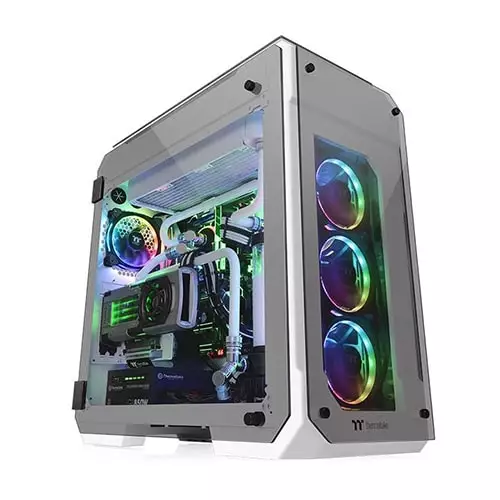

Thermaltake View 71 Tempered Glass RGB Edition Full Tower Chassis
Product Pricing
EMI Start From*
| Thermaltake View 71 TG RGB Edition Tower Case |
| Specification: | SERIES: View CASE TYPE: Full Tower NET WEIGHT: 18.9 kg / 41.66 lb SIDE PANEL: 5mm Tempered Glass x 4 (Left & Right & Front & Top) COLOR: Exterior & Interior: White MATERIAL: SPCC EXPANSION SLOTS: 8+2 MOTHERBOARDS: 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13”(E-ATX) I/O PORT: USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1 PSU: Standard PS2 PSU (optional) |
| DIMENSION (H X W X D): | 592 x 274 x 577 mm (23.3 x 10.8 x 22.7 inch) |
| COOLING SYSTEM: | Rear (exhaust) : 140 x 140 x 25 mm Riing LED White fan (1400rpm, 28dBA) (1000rpm, 22 dBA with LNC) Front (intake) : 140 x 140 x 25 mm Riing LED White fan (1400rpm, 28dBA) (1000rpm, 22 dBA with LNC) |
DRIVE BAYS -ACCESSIBLE -HIDDEN | 2.5” x 4 or 3.5”x4 (HDD Rack) 2.5”x 6 or 3.5” x 3 |
| FAN SUPPORT: | Front: 3 x 120mm , 2 x 140mm Top: 3 x 120mm , 3 x 140mm Rear: 1 x 120mm, 1 x 140mm Bottom: 2 x 120mm |
RADIATOR SUPPORT: | Front: 1 x 360mm , 1 x 420mm Top: 1 x 360mm , 1 x 420mm Rear: 1 x 120mm, 1 x 140mm Right: 1 x 360mm, 1 x 420mm Bottom: 1 x 240mm |
| CLEARANCE: | CPU cooler height limitation: 190mm VGA length limitation: 310mm(With HDD Rack) 410mm(Without HDD Rack) PSU length limitation: 220mm (Without Bottom Fan) |
Thermaltake View 71 TG RGB Edition Tower Case Overview
The Thermaltake View 71 TG RGB Edition Tower Case Designed to expand the legacy of the View Series lineup, the Thermaltake View 71 TG RGB Edition Tower Case features unrivaled cooling support and expandability surrounded in tempered glass for a one of a kind view. The Thermaltake View 71 TG RGB Edition Tower Case Swing open full window tempered glass panels for easy access with all panels properly spaced for optimal airflow. Thermaltake View 71 TG RGB Edition Tower Case Preinstalled with three 140mm Riing RGB fans, Vertical GPU mount and 3-Way radiator support for today’s PC hardware demands, the only limitation is your imagination.

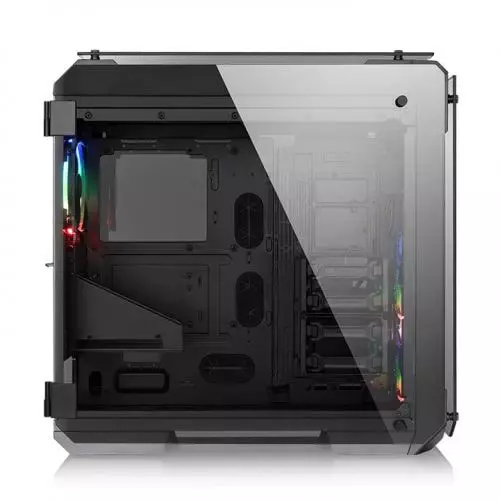

Four-Sided 5mm Thick Tempered Glass Panels with Swing Door Design
Premium-quality 5mm thick tempered glass guarantees the durability of the window and adds overall strength to the chassis. Swing Doors on either side allows users to demonstrate their DIY spirit and enjoy the ultimate internal component visibility. Take on easy to install building with a fully modular design and easy removal of swing door for full access.

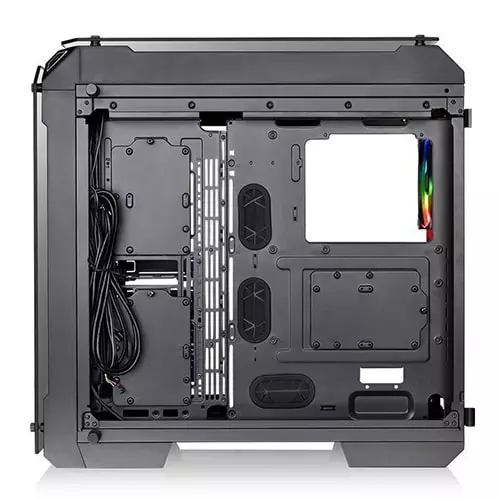

Make the Move to Modular Design
The Thermaltake View 71 TG RGB Edition Tower Case enables users to freely build their system from the ground up with modular panels, racks, brackets, and pre-design mounting arrays. No more unreachable screw corners or gaps to enjoy even more space for your precious parts during installation or maintenance.
Tool-Free Installation
The Thermaltake View 71 TG RGB Edition Tower Case is Innovative 3.5” and 2.5” tool-free drive bay design minimizes the hassles of installation/removal, allowing users to freely interchange the 3.5” and 2.5” storage drives to secure and store with ease.
High-End Complete Solution
The Thermaltake View 71 TG RGB Edition Tower Case allows users to build a complete high-end system that supports motherboards up to standard E-ATX with high-wattage PSU up to 220mm length. With extended graphic card support (up to 410mm), the Thermaltake View 71 TG RGB Edition Tower Case simultaneously protects the hardware and increases the CPU’s overclocking potential for users looking to get the most out of their hardware. Modular HDD cage design offers more flexibility for custom cooling loops to take advantage of high-end, maximum capacity, cooling allotment without the reduction of GPU length limitations when incorporating enthusiast grade liquid cooling systems.
Vertical Radiator View (VRV)
Turn the tides on traditional radiator mounting and bring out the glorious view of custom loop or all-in-one radiator applications with vertical radiator viewing. Supporting proper placement for 120mm and 140mm radiator applications up to 420mm in length, gain more compatibility when pairing up both CPU and GPU cooling solutions. Take on even more with custom loop options for enthusiast-grade cooling, fitment, and flow.
Advanced Ventilation
With wide top-to-bottom side ventilation grills, the Thermaltake View 71 TG RGB Edition Tower Case maximizes airflow with three built-in 140mm Riing RGB fans. Including options for up to three 120mm or two 140mm front fans, combined with two bottom mount 120mm fan locations for maximum fan space selection. Dissipate heat properly with one rear fan and three sectional top mounts to manage proper air flow in and out.
Thermaltake Riing 14 LED RGB – A 140mm high-static pressure fan with a patented RGB LED ring.
