Product Information
Thermaltake View 31 Tempered Glass Edition Mid Tower Casing
| Thermaltake View 31 Tempered Glass Edition Mid Tower Casing |
| Specification: | SERIES: View MODEL: View 31 TG RGB CASE TYPE: Mid Tower NET WEIGHT: 10.7 kg / 23.6 lb SIDE PANEL: 4mm Tempered Glass x 2 (Left & Right) COLOR: Exterior & Interior: Black MATERIAL: SPCC EXPANSION SLOTS: 8 + 2 MOTHERBOARDS: 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) LCS UPGRADABLE: Supports 1/2”、3/8”、1/4” water tube I/O PORT: USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1 PSU: Standard PS2 PSU (optional) |
| DIMENSION (H X W X D): | 497 x 250 x 511 mm (19.5 x 9.8 x 20.1 inch) |
| COOLING SYSTEM: | Front (intake) : 140 x 140 x 25 mm Riing RGB fan (1400rpm, 28dBA) x 2 Rear (exhaust) : 140 x 140 x 25 mm Riing RGB fan (1400rpm, 28dBA) |
DRIVE BAYS -ACCESSIBLE -HIDDEN | 3 x 3.5’’ or 2.5’’ (HDD Cage) |
| FAN SUPPORT: | Front: 3 x 120mm , 2 x 140mm , 1 x 200mm Top: 3 x 120mm , 3 x 140mm , 2 x 200mm Rear: 1 x 120mm , 1 x 140mm Bottom: 2 x 120mm , 2 x 140mm |
RADIATOR SUPPORT: | Front: 1 x 360mm , 1 x 280mm Top: 1 x 360mm , 1 x 280mm Rear: 1 x 120mm , 1 x 140mm Bottom: 1 x 120mm , 1 x 140mm |
| CLEARANCE: | CPU cooler height limitation: 180mm VGA length limitation: 278mm(with HDD rack) 420mm(without HDD rack) PSU length limitation: 180mm (With One Bottom Fan) 220mm (Without Bottom Fan) |
| Related Videos: |

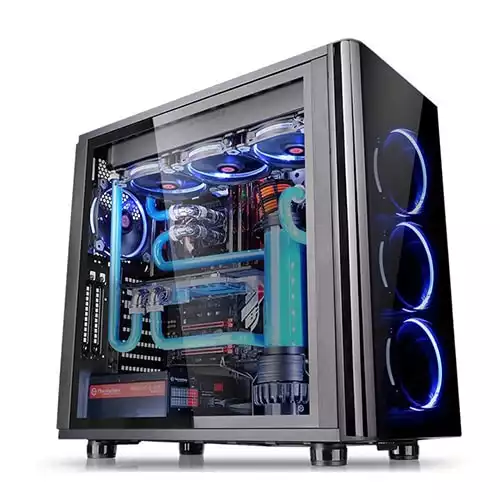

Thermaltake View 31 Tempered Glass Edition Casing Overview
The Thermaltake View 31 Tempered Glass Edition Casing features dual durable 4mm thick tempered glass window, riser GPU support bracket with optional PCI-e riser cable, two preinstalled 140mm Riing Blue fans with removable filters, and outstanding system ventilation. The Thermaltake View 31 Tempered Glass Edition Casing supports the latest PC hardware and all high-end GPU solutions, guarantees on unparalleled expandability for high-end configurations and liquid cooling system to satisfy the market where users have opted for stylish PC chassis with advanced features and aesthetic appeal.

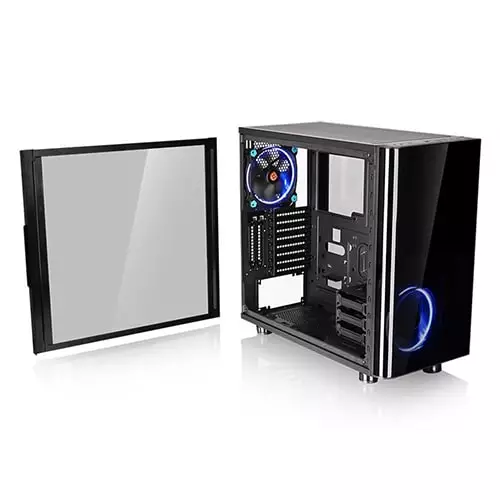

Left and Right 4 mm Thick Tempered Glass Window Design
Thermaltake View 31 Tempered Glass Edition Casing with left and right 4 mm thick tempered glass window guarantees the durability of the window; moreover, the enlarged window design permits users to fully display and admire all components of the liquid-cooling system. Show off your dedicated set in the subtlest manner!

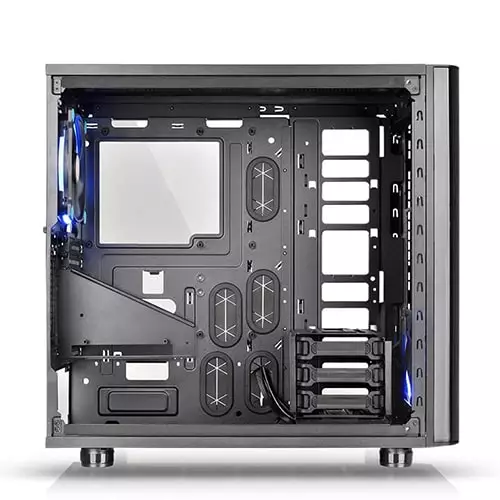

Fully Modular Concept
The Thermaltake View 31 Tempered Glass Edition Casing comes with fully modular drive cages that provide the ease of installation/removal and maximize the interior space for a custom cooling loop. Especially, the tool-less drive bay design allows users to freely interchange the 3.5” and 2.5” hard-drives to suit their particular needs.
Riser GPU Support Bracket
Specially designed with dual GPU placement, the View 31 TG has the support for vertical graphic card layout with dual PCI-E slots design. The PCI-e riser cable is optional. Plus, the included riser GPU support bracket not only can prevent the graphic card from sagging, but also helps to reduce the weight on the motherboard.
Thermaltake PCI-e X16 Riser Cable (Optional) – Support a wide range of GPU solutions.
Dust Reduction
The Thermaltake View 31 Tempered Glass Edition Casing magnetic fan filter on the top simply attaches the filter for dust filtration. Super fine fan filters with excellent protection and reduction against dirt and dust at the bottom.

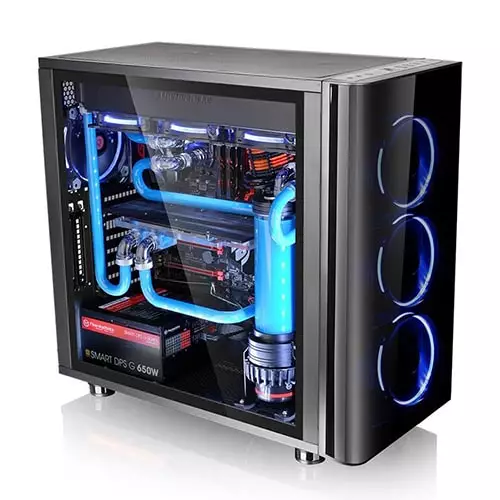

Made for High-End PCs with Outstanding Expandability
The Thermaltake View 31 Tempered Glass Edition Casing features its cable management with maximum 50mm in width, and supports up to a tower CPU cooler with maximum height 180mm, and a dual expansion slot VGA of up to 420mm in length without HDD rack. Moreover, the Thermaltake View 31 Tempered Glass Edition Casing has the ability to accommodate multiple 3.5”/2.5” storage devices at the same time. Most importantly, the hidden drive bay design guarantees expandability for more liquid cooling components.
Advanced Ventilation
The Thermaltake View 31 Tempered Glass Edition Casing Series delivers advanced cooling performance for DIY/AIO liquid cooling and air cooling systems. With wide top-to-bottom side ventilation grills, the Thermaltake View 31 Tempered Glass Edition Casing maximizes the air intake with two built-in 140mm Riing Blue LED fans. It includes options for up to (3) 120mm or 140mm front fans, combined with (2) bottom mount 120mm fan locations for maximum fan space selection. Dissipate heat properly with (1) rear built-in 140mm fan and (3) sectional top mounts to manage proper air flow in and out.
