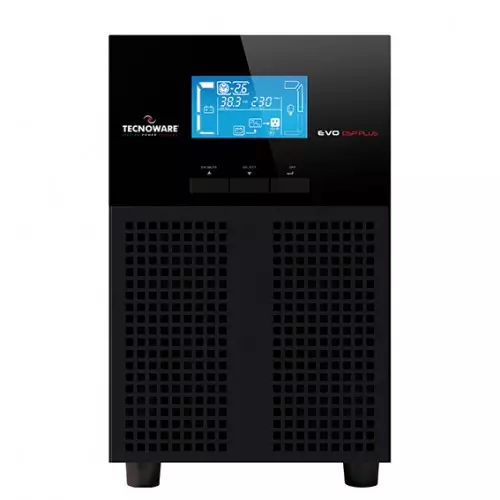

Tecnoware FGCEVDP1004MM Online UPS (Made in Italy)

Tecnoware FGCEVDP1004MM Online UPS (Made in Italy)

0 Reviews
Stock : Discontinued
PID : P00025061463
Brand : Tecnoware
Model : FGCEVDP1004MM
Warranty : 1 Year
  • Rectifier Type : Yes
  • Power Factor : 0,99
  • Backup Time 15 min
  • Power Factor : 0,9

DESCRIPTION

Tecnoware FGCEVDP1004MM Online UPS

Specifications :
  • Noise Level : < 45 dBA to 1 m
  • Battery : 12V 9Ah, Lead acid, sealed
  • Rectifier Type : Yes
  • Power Factor : 0,99
  • Backup Time 15 min
  • Power Factor :  0,9
  • Transfer Time : 0 ms (On-Line)
  • Nominal Power 1.000 VA
  • Active Power 900W
  • Compatible with Generators
  • USB and RS232 ports

Load Capacity

  • Overload capability 110% only audible warning
  • 110-130% for 30 sec, >130% for 100 ms

Input Voltage

  • Nominal voltage 208Vac/220Vac/230Vac/240Vac
  • Input voltage range 160Vac-300Vac from 50% to 100% load
  • 110Vac-300Vac up to 50% load

Output Voltage

  • Nominal voltage 208Vac/220Vac/230Vac/240Vac
  • Static voltage Regulation at %100 ±2% linear load (On-Line and battery mode)
  • Voltage THD at rated linear load <3% (linear load), <6% (non-linear
  • Frequency (Battery Mode) 50/60 Hz

Frequency

  • Nominal frequency 50/60 Hz (selectable)
  • Input frequency range (On-Line mode) ±7%

Input Voltage Range

  • Nominal voltage 208Vac/220Vac/230Vac/240Vac
  • Input voltage range 160Vac-300Vac from 50% to 100% load
  • 110Vac-300Vac up to 50% load

Output Voltage Range

  • Nominal voltage 208Vac/220Vac/230Vac/240Vac
  • Static voltage Regulation at %100 ±2% linear load (On-Line and battery mode)
  • Voltage THD at rated linear load <3% (linear load)
  • <6% (non-linear load)
**02 Year Warranty

Tecnoware FGCEVDP1004MM Online UPS

Tecnoware Fgcevdp1004mm  Ups On-line Double Conversion Technology Without Transformer (Vfi-ss-111).power Factor 0,9. Rectifier Realized By Igbt Technology.active Pfc Circuit (0.99).compatible With Generators. Output Voltage And Frequency Can Be Regulated From The Front Panel. Static Bypass. Usb And Rs232 Ports.ups Evo Dsp Plus 1.0 Mm He - Power 1000 Va Pf 0,9. On Line (Vfi) Dsp Technology, Efficiency 94%, Input/output 230/230vac 50/60hz, Dimensions 14x22x28 Cm, Weight 10 Kg, Autonomy 10 Min, 2 Batteries 12vdc 9ah. Graphic Multi-function Lcd Display, Static Bypass, Usb And Rs232 Communication Ports For The Ups Control And Programming Of Power On/off, Through Tecnomanager Software, Free Of Charge. Snmp Or Dry Contact Board (Optional). Warranty: 24 Months Electronic Parts / 24 Months Battery.

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Tecnoware FGCEVDP1004MM Online UPS (Made in Italy) Price in Bangladesh 2026 ?

The Tecnoware FGCEVDP1004MM Price in BD is 17,500৳ . This Tecnoware FGCEVDP1004MM Online UPS (Made in Italy) Manufacturing by Tecnoware Comes With 1 Year Warranty & Based on 0 reviews. Tech Land BD Offers you Tecnoware FGCEVDP1004MM by 17,500৳ and its regular price is 18,500৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
