Product Information

Save : ৳ 1,510

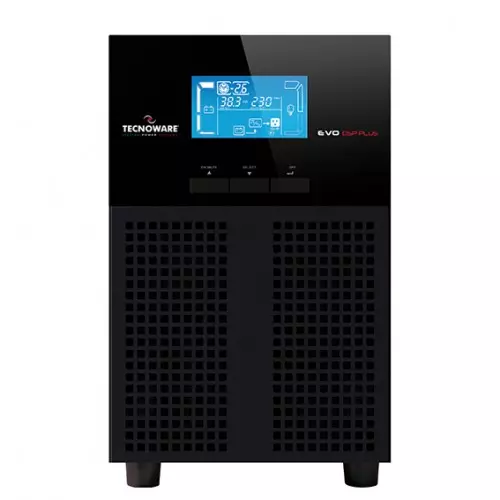

Tecnoware FGCEVDP2004MM Online UPS (Made in Italy)
Tecnoware FGCEVDP2004MM Online UPS (Made in Italy)

Tecnoware FGCEVDP2004MM Online UPS (Made in Italy)

Stock : Discontinued
PID : P00025061464
Brand : Tecnoware
Model : FGCEVDP2004MM
Warranty : 1 Year
★ ★ ★ ★ ★
0 Reviews
  • Rectifier Type : Yes
  • Power Factor : 0,99
  • Backup Time 15 min
  • Power Factor :  0,9

    • Tecnoware FGCEVDP2004MM Online UPS

    Specifications :
    • Noise Level : < 45 dBA to 1 m
    • Battery : 12V 9Ah, Lead acid, sealed
    • Rectifier Type : Yes
    • Power Factor : 0,99
    • Backup Time 15 min
    • Power Factor :  0,9
    • Transfer Time : 0 ms (On-Line)
    • Nominal Power 2.000 VA
    • Active Power 1800W
    • Compatible with Generators
    • USB and RS232 ports

    Load Capacity

    • Overload capability 110% only audible warning
    • 110-130% for 30 sec, >130% for 100 ms

    Input Voltage

    • Nominal voltage 208Vac/220Vac/230Vac/240Vac
    • Input voltage range 160Vac-300Vac from 50% to 100% load
    • 110Vac-300Vac up to 50% load

    Output Voltage

    • Nominal voltage 208Vac/220Vac/230Vac/240Vac
    • Static voltage Regulation at %100 ±2% linear load (On-Line and battery mode)
    • Voltage THD at rated linear load <3% (linear load), <6% (non-linear
    • Frequency (Battery Mode) 50/60 Hz

    Frequency

    • Nominal frequency 50/60 Hz (selectable)
    • Input frequency range (On-Line mode) ±7%

    Input Voltage Range

    • Nominal voltage 208Vac/220Vac/230Vac/240Vac
    • Input voltage range 160Vac-300Vac from 50% to 100% load
    • 110Vac-300Vac up to 50% load

    Output Voltage Range

    • Nominal voltage 208Vac/220Vac/230Vac/240Vac
    • Static voltage Regulation at %100 ±2% linear load (On-Line and battery mode)
    • Voltage THD at rated linear load <3% (linear load)
    • <6% (non-linear load)
    **02 Year Warranty

    Tecnoware FGCEVDP2004MM Online UPS

    Technoware Fgcevdp2004mm Ups On-line Double Conversion Technology Without Transformer (Vfi-ss-111).power Factor 0,9. Rectifier Realized By Igbt Technology.active Pfc Circuit (0.99).compatible With Generators. Output Voltage And Frequency Can Be Regulated From The Front Panel. Static Bypass. Usb And Rs232 Ports.UPS EVO DSP PLUS 2.0 MM HE - POWER 2000 VA PF 0,9. ON LINE (VFI) DSP TECHNOLOGY, EFFICIENCY 94%, INPUT/OUTPUT 230/230VAC 50/60HZ, DIMENSIONS 14X22X39 CM, WEIGHT 17 KG, AUTONOMY 10 MIN, 4 BATTERIES 12VDC 9AH. GRAPHIC MULTI-FUNCTION LCD DISPLAY, STATIC BYPASS, USB AND RS232 COMMUNICATION PORTS FOR THE UPS CONTROL AND PROGRAMMING OF POWER ON/OFF, THROUGH TECNOMANAGER SOFTWARE, FREE OF CHARGE. SNMP OR DRY CONTACT BOARD (OPTIONAL). WARRANTY: 24 MONTHS ELECTRONIC PARTS / 24 MONTHS BATTERY

    What is the Tecnoware FGCEVDP2004MM Online UPS (Made in Italy) Price in Bangladesh 2026 ?

    The Tecnoware FGCEVDP2004MM Price in BD is 18,000৳ . This Tecnoware FGCEVDP2004MM Online UPS (Made in Italy) Manufacturing by Tecnoware Comes With 1 Year Warranty & Based on 0 reviews. Tech Land BD Offers you Tecnoware FGCEVDP2004MM by 18,000৳ and its regular price is 19,510৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
