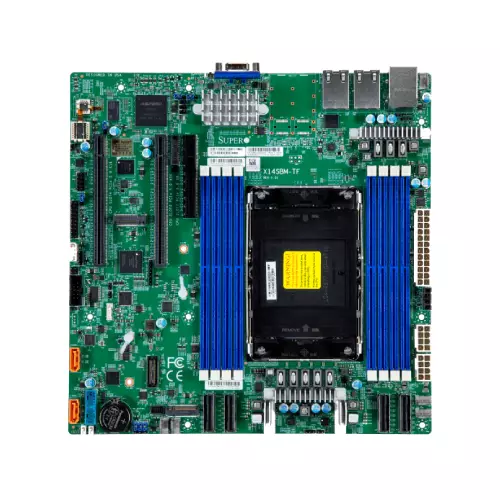

Supermicro X14SBM-TF Server Motherboard

Supermicro X14SBM-TF New Motherboard Price in BD

The Supermicro X14SBM-TF is a Micro-ATX server motherboard designed for high-performance server and enterprise computing platforms. It features a single LGA-4710 Socket E2 and supports Intel Xeon 6700/6500 series processors with P-cores, as well as Intel Xeon 6700 series processors with E-cores. The board supports CPUs with up to 350W TDP, making it suitable for demanding server workloads.

Intel Xeon 6 Processor Support

The X14SBM-TF supports Intel Xeon 6700/6500 series processors with P-cores and Xeon 6700 series processors with E-cores. The P-core configuration can support up to 144 cores, while the motherboard is designed to accommodate processors with TDPs up to 350W. Supermicro notes that BIOS 1.2 or later is required to support Xeon 6700/6500 P-core processors.

DDR5 ECC Memory Support

For server-grade memory, the motherboard provides 8 DIMM slots across 8 memory channels. It supports ECC DDR5 RDIMM memory at up to 6400MT/s, with support for up to 2TB DDR5 3DS RDIMM according to Supermicro's specifications. ECC memory helps correct single-bit errors and detect double-bit errors for improved data integrity.

PCIe 5.0 Expansion

The X14SBM-TF provides extensive high-speed expansion connectivity. It includes 2 PCIe 5.0 x16 slots, 1 PCIe 5.0 x8 slot, and 4 PCIe 5.0 x8 connections through MCIO connectors. This provides flexibility for high-speed networking, storage, and other server expansion devices.

Dual 10GbE Networking

The motherboard features dual 10GbE RJ45 LAN ports powered by the Intel X710-AT2 controller. It also includes a dedicated 1GbE RJ45 IPMI LAN port for remote server management through the onboard ASPEED AST2600 BMC.

Dual PCIe 5.0 M.2 Storage

For high-speed NVMe storage, the X14SBM-TF includes 2 M.2 PCIe 5.0 x2 slots supporting M-Key drives in 2280 and 22110 form factors. It also provides 2 SATA 6Gbps ports for additional storage connectivity.

Server Management and Security

The motherboard includes an ASPEED AST2600 BMC and supports remote management features. It also has an onboard TPM 2.0 solution for hardware-based security. Supermicro lists support for SuperCloud Composer, Supermicro Server Manager, and other management tools.

USB, VGA and Other Connectivity

The board provides 4 USB 3.2 Gen1 ports, including two rear ports and two through headers. Other interfaces include a VGA D-Sub connector, COM header and two SATA DOM ports with power connector support.

Compact Micro-ATX Design

Despite its server-focused specifications, the X14SBM-TF uses a Micro-ATX form factor measuring approximately 9.6 × 9.6 inches (24.38 × 24.38cm). It also provides five 4-pin fan headers with fan-speed control for system cooling management.

Why Buy Supermicro X14SBM-TF from Tech Land BD?

The Supermicro X14SBM-TF from Tech Land BD is a suitable choice for customers building high-performance servers and enterprise computing systems. Its Intel Xeon 6 support, 8-channel DDR5 ECC memory, PCIe 5.0 expansion, dual 10GbE networking, dual M.2 PCIe 5.0 storage, IPMI management, and TPM 2.0 make it well suited to demanding server environments.

FAQ

Which processors are supported by the X14SBM-TF?

It supports Intel Xeon 6700/6500 series processors with P-cores and Intel Xeon 6700 series processors with E-cores.

How many RAM slots does it have?

The motherboard has 8 DDR5 DIMM slots across 8 memory channels.

What is the maximum supported memory?

It supports up to 2TB DDR5 ECC 3DS RDIMM according to Supermicro's specifications.
