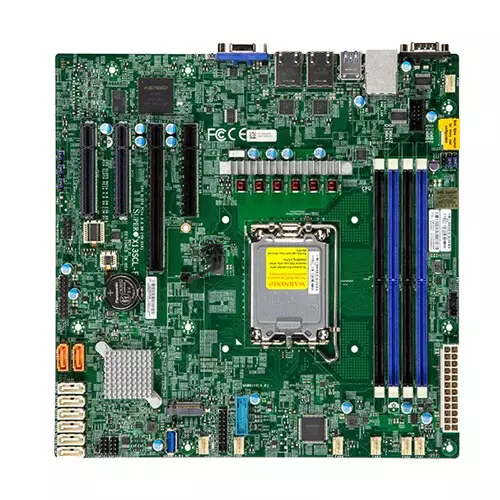

Supermicro X13SCL-F X13 UP Single Socket LGA-1700 Mainstream Server Board
- CPU: LGA-1700, Xeon 6300/E-2400, 95W
- RAM+Store: 128GB DDR5, 8x SATA3 RAID
- Slots: PCIe 5.0 x8, M.2 2280/22110
- LAN+I/O: Dual GbE, 10x USB
SPECIFICATIONS
Processor
Single Socket V0 (LGA-1700)
Intel® Xeon ® 6300-series/ E-2400/Pentium®* Processor
*BIOS 2.4 or above is required to support Intel® Xeon® 6377P
Up to 12C
Mainboard
BIOS Features: Plug and Play (PnP)
ACPI 6.4
PCI FW 3.3
SMBIOS 3.5
UEFI 2.8
Memory
Max Memory (2DPC): Up to 128GB 4400MT/s ECC DDR5 UDIMM
DIMM Sizes: UDIMM:8GB, 16GB, 32GB
Memory Voltage: 1.1V
Error Detection: Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Storage
2 PCIe 4.0 x4 (in x8) slots
1 PCIe 5.0 x8 slot
1 PCIe 5.0 x8 (in x16) slot
M2: 1 M.2 PCIe 4.0 x4 slot (M-key 2280/22110)
Networking & Connectivity
Ports
1 COM port(s) (rear)
1 TPM 2.0 Header
1 Aspeed AST2600 BMC port(s)
4 USB 2.0 port(s) (header)
2 USB 3.2 Gen1 port(s) (Header)
2 USB 3.2 Gen1 port(s) (Rear)
1 USB 3.2 Gen1 Type-A port(s)
Software
Supermicro Server Manager (SSM)
Supermicro Power Manager (SPM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Plug-ins for 3rd Party Software
IPMI Utilities
Special Features
Others
Power-on mode control for AC power loss recovery
Power button override mechanism
Wake-On-LAN
Dual LAN with 1GbE with Intel I210
ASPEED AST2600 BMC
Voltage
+12V,+3.3V,+3.3V standby,+5V,+5V standby,7-fan status,Chassis intrusion header,Chipset voltage,Memory Voltages,Monitors CPU voltages,Supports system management utility,System level control,VBAT
LED
CPU/system overheat LED
UID/remote UID LED
Temperature
CPU thermal trip support
Monitoring for CPU and chassis environment
PECI
Fan
7x 4-pin fan headers (up to 7 fans)
7 fans with tachometer status monitoring
Fan speed control
Overheat LED indication
Other Features
ACPI power management
Chassis intrusion header
Control of power-on for recovery from AC power loss
M.2 NGFF connector
UID
WOL
Operating Environment
Environmental Spec.
Operating Temperature: -5°C to 55°C (23°F to 131°F )
Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
Operating Relative Humidity: 8% to 80%
Non-operating Relative Humidity: 8% to 90%
Physical Specification
Warranty Information
DESCRIPTION
Supermicro X13SCL-F X13 Up Single Socket LGA-1700 Mainstream Server Board Price in BD
The Supermicro X13SCL-F X13 UP Single Socket LGA-1700 Mainstream Server Board is a professional server motherboard designed for dependable enterprise computing, virtualisation, storage, and business workloads. It supports Intel processors using the LGA-1700 socket and is built around the Intel W680 chipset for workstation and mainstream server applications. The board supports DDR5 ECC UDIMM memory, ensuring reliable data integrity for compatible systems, and features multiple DIMM slots for flexible memory expansion. It features PCIe expansion support for graphics, networking, storage, and other server components, while integrated networking helps simplify high-speed connectivity. The X13SCL-F also includes dedicated management functionality for convenient remote monitoring and administration, making it suitable for servers that require reliable operation and efficient maintenance. Its compact, server-focused design enables system builders to create capable platforms for business applications, data processing, file services, and virtualisation. Tech Land BD offers this Supermicro motherboard for customers seeking a reliable LGA-1700 server platform with modern DDR5 support, enterprise-oriented features, and dependable expansion capabilities.
Why Buy Supermicro X13SCL-F From Tech Land BD?
Choose Tech Land BD to purchase the Supermicro X13SCL-F server motherboard at the best price. Its LGA-1700 platform, DDR5 ECC memory support, expansion options, and remote management capabilities make it a practical foundation for compatible server and workstation builds. Before ordering, confirm compatibility of the processor, memory, chassis, power supply, and expansion card. Check the latest price in BD, stock availability, and warranty information before purchase. This board is a suitable choice for users building reliable systems for virtualisation, business applications, storage, and other professional workloads.
Which processors does the X13SCL-F support?
It is designed for compatible Intel processors using the LGA-1700 socket. Processor compatibility should be checked against Supermicro's supported CPU list.
Does this motherboard support ECC memory?
Yes. It supports compatible DDR5 ECC UDIMM memory for improved data integrity and reliability.
Is the X13SCL-F suitable for server applications?
Yes. It is designed for mainstream server and professional computing environments, including virtualisation, storage, business applications, and data processing.
