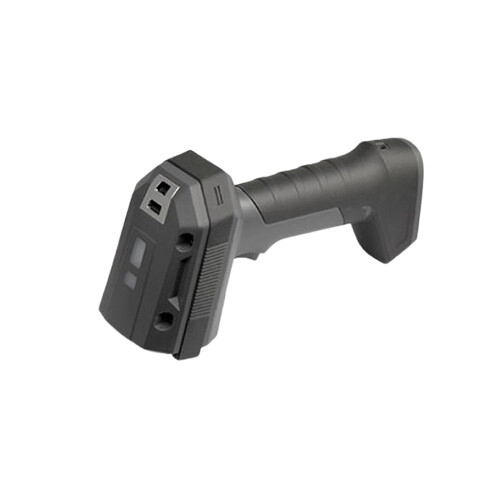

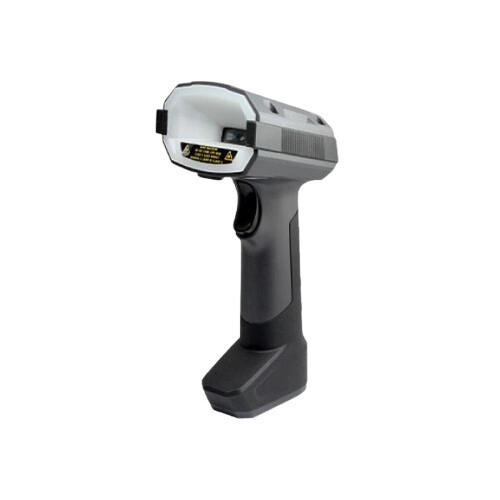

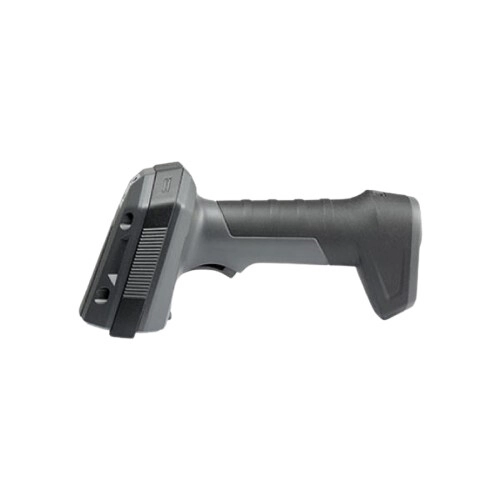

SUNLUX IH50 Industrial DPM 2D Handheld Barcode Scanner
- Decoding: 1280x800 | DPM & High-Density
- Interfaces: USB-HID / VCOM | RS-232
- Durability: IP65 | 2m Drop Proof
- Target: Industrial Barcode Scanner
EMI Start From*
SPECIFICATIONS
Scan
Camera
Image Size: 1280x800 Pixels
Battery And Power
Standby Current: 42mA±10%
Ports
Special Features
Others
Scan Mode: Manual & Automatic
Minimum Resolution: ≥3mil
Decoding Depth: 40~470mm(13mil EAN13 PCS=90%)
Print Contrast: ≥15%
Field Angle: Horizontal 40.6°; Vertical 30.4°
Decoding Capability:
1D: Codabar, Code11, Code39, Code32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code93, Code128,UPC-A,
UPC-E, EAN 8, EAN 13, GS1 DataBar(RSS14), Matrix 2 of 5, Standard 2 of 5
2D: PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec Code, MaxiCode
Cable Standard: 3M straight
Drop Resistance: 2m
Temperature (Operating): -20℃~50℃
Humidity: 5% to 95% (non-condensing)
Temperature (Storage): -20℃~60℃
IP: IP65
Resistance To Ambient Light:
0~5000Lux (fluorescent light)
0~100,000Lux (sunlight)
Physical Specification
Warranty Information
DESCRIPTION
SUNLUX IH50 Industrial DPM 2D Handheld Barcode Scanner Price in BD
The SUNLUX IH50 Industrial DPM 2D Handheld Barcode Scanner is designed for reliable barcode scanning in demanding industrial and commercial environments. It features a 1280 × 800 pixel image sensor combined with advanced decoding technology to read standard 1D and 2D barcodes, including challenging, blurred, low-contrast, and high-density codes. Its Direct Part Marking (DPM) capability lets it scan codes applied directly to components through methods such as dot peening, laser etching, chemical etching, inkjet marking, casting, and moulding. The scanner supports USB HID, USB-VCOM, and RS232 interfaces, providing flexibility for integration with computers, point-of-sale systems, and industrial data collection equipment. Its IP65-rated rugged housing protects against dust and water jets, while 2-meter drop resistance supports dependable operation in demanding workplaces. The SUNLUX IH50 suits manufacturing, warehouse operations, inventory management, electronics production, automotive component tracking, and product traceability applications. With its industrial construction, versatile barcode decoding, and DPM scanning capabilities, it offers a practical solution for businesses that need accurate, consistent data capture.
Why Buy SUNLUX IH50 Industrial DPM 2D Handheld Barcode Scanner from Tech Land BD?
Tech Land BD offers a range of barcode scanners and professional business technology solutions for different operational requirements. The SUNLUX IH50 Industrial DPM 2D Handheld Barcode Scanner combines industrial-grade durability, DPM code scanning, versatile connectivity, and advanced imaging technology. Its rugged construction and support for challenging barcode formats make it suitable for manufacturing, logistics, inventory management, and professional data collection applications.
FAQs
What types of barcodes can the SUNLUX IH50 scan?
Is the SUNLUX IH50 suitable for industrial environments?
Which connectivity options does the SUNLUX IH50 support?
