General Features
| - Dimensions (approx.): 185x200x120 mm (LxWxH)
- Weight (approx.): 720g
- Input voltage: 5V DC (SELV)
- Power supply: PoE or 5V DC power adapter
- Handset: 4P4C connector
- Headset: 4P4C connector
- Hearing aid compatible (HAC) handset
- 1 x USB 2.0 host port, type A, Hi/Full/Low-Speed
- Environmental conditions:
- Ambient temperature: 0°C to 35°C (32°F to 95°F)
- Storage temperatur: -10°C to 45°C (14°F to 113°F)
- Humidity: 5% to 95% (non-condensing)
- Included in delivery: ·
- Base phone unit
- Foot stand
- Handset with cord
- Ethernet cable
- Quick Start Guide
- Color: Black-blue
- Warranty: 2 years
- Part Number: 00004258
|
|
User Interface
| - Localization (language, time, dial tone)
- Red LED for call indication / message waiting
- 4 context-sensitive keys
- 5 programmable function keys with green LEDs
- Paper inlay for labeling of function keys
- Dedicated message key
- Audio keys: Mute, speakerphone, headset, volume
- 4-way navigation key, OK and cancel keys
- Menu-driven user interface
|
| Call Features | - Speed dialing
- URL dialing
- Local dial plan
- Automatic redial on busy
- Call completion (busy/unreachable)
- Caller identification
- Call waiting
- Call blocking (deny list)
- Auto answer
- Hold
- Music on hold
- Handling of up to 4 simultaneous calls
- Blind and attended transfer
- Call forwarding
- 3-way conferencing on the phone
- Extension monitoring, call pickup
- Call park, call unpark
- Multicast paging
- DND mode (do not disturb)
- Keyboard lock
- Client matter code (CMC)
- Unified Communications ready
|
| Firmware Features | - 4 SIP identities / accounts
- XML browser
- Call lists for dialed, received, missed calls
- Local directory with 1000 entries
- Multiple language support
- DTMF in-band / out-of-band / SIP-INFO
- Interoperable with all major IP-PBX platforms
|
Security, Quality of Service
| - 802.1X authentication and EAPOL
- Transport layer security (TLS)
- SRTP (RFC3711), SIPS, RTCP
- HTTPS server/client
- password-protected web interface
- VPN-support
- VLAN (IEEE 802.1Q)
- LLDP-MED, RTCP-XR
|
Audio
| - Codecs:
- G.711 A-law, µ-law
- G.722 (wideband)
- G.726, G.729AB, GSM 6.10 (FR)
- Built-in assignable ringtones
- Comfort noise generator (CNG)
- Voice activity detection (VAD)
|
Protocols
| - SIP (RFC3261)
- DHCP, NTP
- HTTP / HTTPS / TFTP
- LDAP (Directory)
- Dual Stack IPv4 / IPv6
|

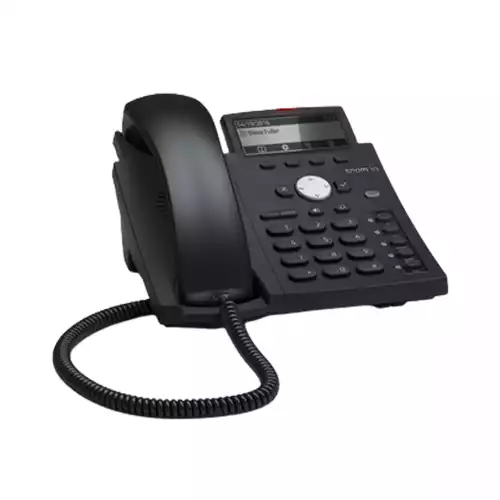

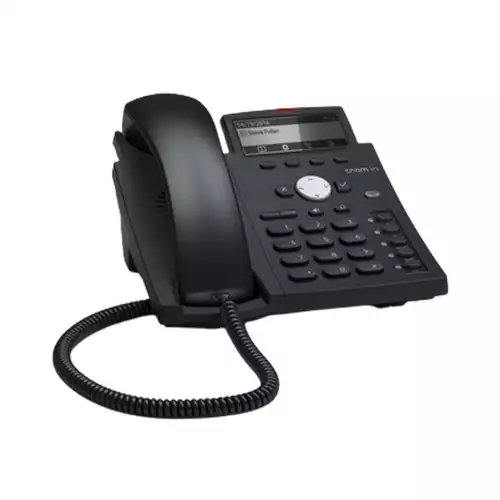

Snom D315 IP Phone
With its high-resolution display, the D315 fulfills all important requirements of VoIP telephony and provides numerous valuable functions in the business world. Business class connectivity makes this a smart long-term investment. A high-speed USB port enables connection of a variety of accessories such as D3 expansion module or WiFi sticks. The D315 also has a gigabit Ethernet switch to ensure you get the most out of local connections, and a VPN client to enable integration of an additional security layer. The D315’s flexible design makes it suitable for use in a wide variety of environments, including offices, call centers and reception areas. It can be used as a desk phone – its gently inclined, European-style keyboard lending itself easily to dialing with minimal impact on the user’s hand. It can also be mounted on the wall without additional hardware. Designed to last, the D315 features a dual IPv4/IPv6 stack, which ensures its longevity even as networks evolve. It also contains the new Snom sensor hook switch, which increases durability and product life.
Key features
- Gigabit switch
- USB port
- Dual IPv4 / IPv6 stack
- Wideband audio
- Sensor hook switch
- 5 configurable function keys with LEDs
- 4 SIP identities
- Desk or wall mounting
