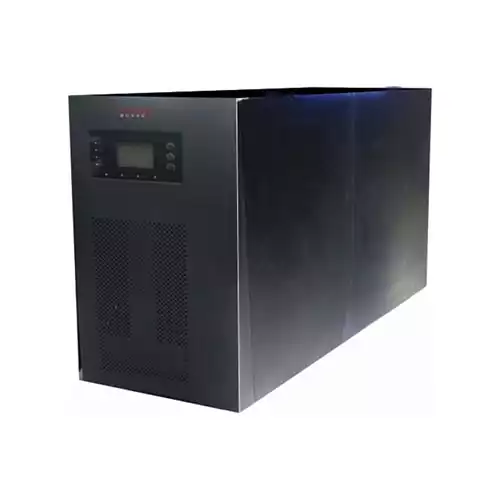

POWER GUARD 10KVA PS ONLINE UPS (LONG BACKUP)
POWER GUARD 10KVA PS ONLINE UPS (LONG BACKUP)-cover-thumbnail

POWER GUARD 10KVA PS ONLINE UPS (LONG BACKUP)

Stock : Call For Price
PID : P1662506009
Brand : POWER GUARD
Model : 10KVA ONLINE
★ ★ ★ ★ ★
0 Reviews
  • Voltage Regulation ±1%
  • Battery Type 12 V / 8.2 Ah
  • Input Voltage Range 110-280 VAC
  • Frequency Range 46Hz-54Hz / 56Hz-64Hz



    • POWER GUARD 10KVA ONLINE UPS

    Features :

    • High frequency and dual conversion on-line technology .
    • Wide input voltage range .
    • Advanced PFC technology.
    • True sine wave output with less than 3% THD.
    • Self-diagnosis at UPS startup .
    • Advanced battery management(ABM).
    • Cold start feature(DC power on ).
    • Automatically charging batteries in UPS off mode.
    • Lightning and surge protections (surge energy rating 1050 Joules).
    • Short circuit and overload protections .
    • Fan speed automatically changes as load varies .
    • Optional external battery pack .
    • EMI/RFI noise filter .
    • RS232.
    • Shutdown & restart schedule.

    SPECIFICATION :

    CAPACITY 10000 VA / 8000 W

    INPUT :

    • Nominal Voltage 200/208/220/230/240VAC
    • Input Voltage Range 110-280 VAC (Based on Load at 50%)
    • Frequency Range 46Hz-54Hz / 56Hz-64Hz
    • Phase : Single phase with ground
    • Power Factor : R0.99 @ nominal voltage (100% load)

    OUTPUT :

    • Output Voltage : 200/208/220/230/240VAC
    • Voltage Regulation ±1%
    • Frequency Range (Synchronized Range) 46 ~ 54 Hz or 56 ~ 64 Hz
    • Frequency Range (Batt. Mode) 50 Hz or 60 Hz ±0.1%
    • Current Crest Ratio : 3:01

    TRANSFER TIME :

    Line mode to Battery mode : Zero

    Inverter to Bypass : 2~4 ms (Typical)

    Waveform (Batt. Mode) : Pure Sine Wave

    EFFICIENCY :

    To AC Mode 87%

    To Battery Mode 83%

    BATTERY :

    Battery Type 12 V / 8.2 Ah

    Numbers : 16

    Typical Recharge Time : 6 hours recover to 90% capacity

    Charging Current (max.) : 1.0A

    DC Voltage : 192 VDC

    INDICATORS :

    LED Panel :  UPS status, Load level, Battery level, Input/Output voltage, and Fault conditions

    ALARM :

    Battery Mode : Sounding every 4 seconds

    Low Battery : Sounding every second

    Overload : Sounding twice every second

    Fault : Continuously sounding

    OPERATING ENVIRONMENT :

    Humidity : 20-90 % RH @ 0- 40C (non-condensing)
    Noise Level : Less than 50dB @ 1 Meter

    MANAGEMENT :
    Smart RS-232 : Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, and MAC
    Dimension(mm) 260 W *642 H *582 D (Unit)
    WARRANTY :  01 Year Battery & Service with Spare Parts
