Phanteks Eclipse P500A Tempered Glass DRGB ATX Mid Tower Case (Black)
| Phanteks Eclipse P500A Case Specifications: |
| Main Features | Type: ATX Mid Tower Color: Black Case Material: Steel / Tempered Glass With Power Supply: No Power Supply Mounted : Bottom Motherboard Compatibility: Micro ATX / ATX / Mini ITX / E-ATX Side Panel Window : Yes Expansion Slots: 7 + 3 vertical Max GPU Length 435 mm Max CPU Cooler Height 190 mm Max PSU Length 195mm (if all 4 bottom HDD positions used) 250mm (if 2 bottom HDD used) |
| I/O PORTS | Front Ports: 2 x USB 3.0 / USB 3.1 Gen2 Type-C / Audio / LED Mode Button / LED Color Button |
| Drive Bays | Internal 3.5" Drive Bays:10 (2x included, also supports 2.5" drives) Internal 2.5" Drive Bays: 3 (3x included) |
| Fan | Front: 3 x 120mm or 3 x 140mm fan (3 x 140mm D-RGB fan included) Top: 3 x 120mm or 3 x 140mm fan Rear: 1 x 120mm or 1 x 140mm fan |
| RADIATOR | Front: 360mm, 420mm Top: 280mm, 360mm Rear: 120mm, 140mm |
| DIMENSION & Weight | Dimensions (H x W x D): 20.10" x 9.45" x 20.00" Weight: 17.60 lbs. |

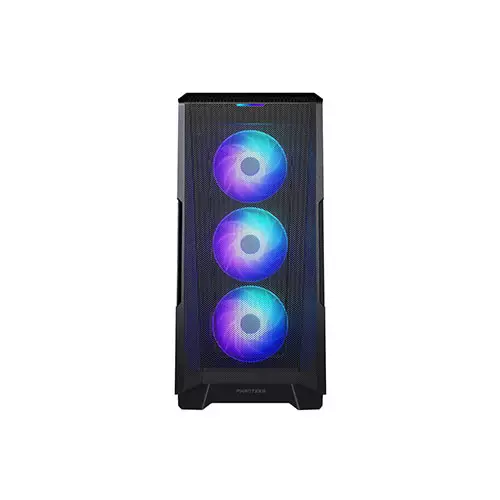

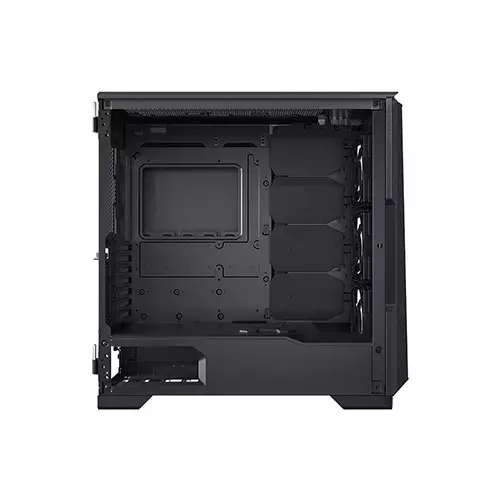

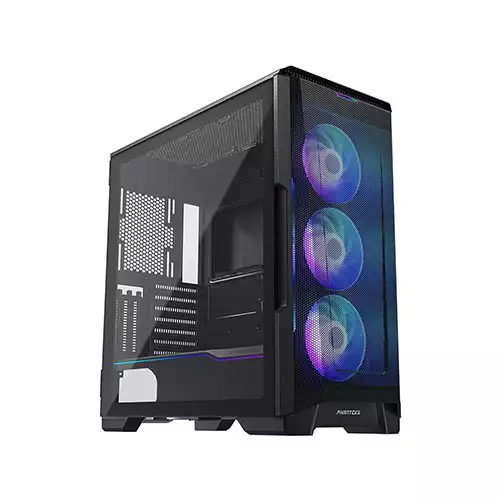

Phanteks Eclipse P500A Case
The Eclipse P500A is a premium mid-tower case that combines high airflow performance with style. It features the 1 mm Ultra-fine Performance mesh front panel for optimal airflow with effective dust filtration. The P500A offers a versatile interior with high-end features such as extensive water-cooling support (up to 420 mm radiators), extensive storage possibilities (can be upgraded up to 10 HDD’s / 13 SSD’s), software-free D-RGB lighting solution, hinged tempered glass side panel, and dual-system support. With a rich feature set and flexible interior, it’s the perfect chassis for people demanding more than the standard mainstream with options for future expansion. The P500A delivers quality and performance with exceptional value and high-end capabilities.
